P1/P8 RFOU 0.6/1KV Offshore Power Cable | NEK 606 Low Voltage | Mud Resistant

Offshore Power Cable NEK 60630
Description

Product Overview

The P1/P8 RFOU 0.6/1KV Offshore Power Cable provides reliable low voltage power distribution for the most demanding offshore applications. Engineered to meet rigorous NEK 606 standards, this cable combines flame retardancy, low smoke emission, halogen-free properties, and exceptional mud resistance - delivering uncompromised safety and performance in harsh marine environments.

Key Features & Benefits

  • Comprehensive Safety: Flame retardant, low smoke, and halogen-free construction for maximum personnel protection

  • Superior Mud Resistance: Special SHF Mud outer sheath withstands challenging offshore drilling conditions

  • Reliable Performance: EPR insulation ensures excellent electrical stability and thermal endurance

  • Enhanced Durability: Tinned copper braid armour provides mechanical protection and reliable grounding

  • Corrosion Resistance: Fully tinned construction ensures longevity in corrosive saltwater environments

  • Full Compliance: Meets IEC 60228, IEC 60092-350, and NEK 606 offshore standards

Applications

Specifically designed for low voltage power transmission across various offshore installations:

  • Drilling Operations: Drilling ships, jack-up rigs, and semi-submersible drilling platforms

  • Production Facilities: TLP, SPAR, fixed platforms, and semi-submersible production units

  • Floating Systems: FPSO (Floating Production Storage and Offloading) and FSO vessels

  • Auxiliary Power Systems: Secondary power distribution and equipment power supply in marine environments

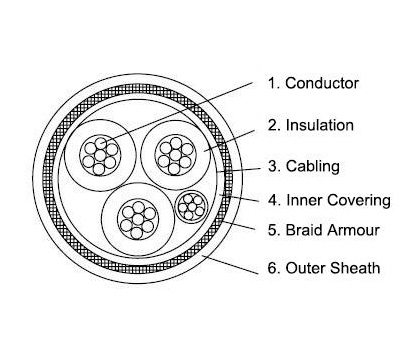

Construction

Precision-engineered layers ensure optimal performance and longevity:

  1. Conductor: Circular tinned stranded copper compliant with IEC 60228

  2. Insulation: High-quality Ethylene Propylene Rubber (EPR) for electrical integrity

  3. Cabling: Cores laid up together and wrapped with polyester tape

  4. Inner Covering: Halogen-free flame retardant compound

  5. Braid Armour: Tinned copper wire braid per IEC 60092-350

  6. Outer Sheath: Halogen-free thermoset compound, Type SHF Mud

Specifications

  • Rated Voltage: 0.6/1KV

  • Standards Compliance: NEK 606, IEC 60228, IEC 60092-350

  • Flame Performance: Flame retardant

  • Smoke Emission: Low smoke density

  • Halogen Content: Halogen-free

  • Special Feature: Mud resistant construction

  • Sheath Type: SHF Mud compound

  • Installation: Suitable for fixed offshore installations and moving vessels
