P1 RFOU 0.6/1KV Offshore Power Cable | NEK 606 Low Voltage Cable

NEK 606 Offshore Power Cable
Description

Product Overview

The P1 RFOU 0.6/1KV Offshore Power Cable delivers reliable low voltage power distribution for critical offshore applications. Designed to meet stringent NEK 606 standards, this cable combines flame retardancy, low smoke emission, and halogen-free properties - ensuring maximum safety and performance in demanding marine environments.

Key Features & Benefits

  • Enhanced Safety: Flame retardant, low smoke, and halogen-free construction for superior personnel and equipment protection

  • Reliable Performance: EPR insulation ensures stable electrical characteristics and thermal endurance

  • Durable Construction: Tinned copper braid armour provides mechanical protection and effective grounding

  • Corrosion Resistance: Tinned components withstand harsh saltwater environments

  • Full Compliance: Meets IEC 60228, IEC 60092-350, and NEK 606 standards

  • Optimized Design: Streamlined construction for efficient low voltage power distribution

Applications

Ideal for low voltage power transmission across various offshore installations:

  • Drilling Platforms: Jack-up rigs, semi-submersible platforms, and drilling ships

  • Production Facilities: TLP, SPAR, fixed platforms, and semi-submersible production units

  • Floating Systems: FPSO and FSO vessels

  • Auxiliary Power Systems: Secondary power distribution and equipment power supply

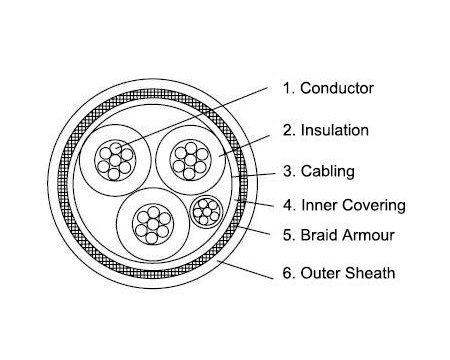

Construction

Precision-engineered layers ensure optimal performance and longevity:

  1. Conductor: Circular tinned stranded copper compliant with IEC 60228

  2. Insulation: High-quality Ethylene Propylene Rubber (EPR) for electrical integrity

  3. Cabling: Cores laid up together and wrapped with polyester tape

  4. Inner Covering: Halogen-free flame retardant compound

  5. Braid Armour: Tinned copper wire braid per IEC 60092-350

  6. Outer Sheath: Halogen-free thermoset compound, Type SHF2

Specifications

  • Rated Voltage: 0.6/1KV

  • Standards Compliance: NEK 606, IEC 60228, IEC 60092-350

  • Flame Performance: Flame retardant

  • Smoke Emission: Low smoke density

  • Halogen Content: Halogen-free

  • Sheath Type: SHF2 compound

  • Installation: Suitable for fixed offshore installations
