P1 TFOU 0.6/1KV Offshore Power Cable | NEK 606 Low Voltage | XLPE Insulation

Offshore Power Cable NEK 60630
Description

Product Overview

The P1 TFOU 0.6/1KV Offshore Power Cable delivers exceptional performance for low voltage power distribution in demanding offshore environments. Featuring advanced XLPE insulation and full compliance with NEK 606 standards, this cable provides reliable power transmission with enhanced safety features including flame retardancy, low smoke emission, and halogen-free construction.

Key Features & Benefits

  • Advanced Insulation: Cross-linked Polyethylene (XLPE) provides superior thermal stability and electrical performance

  • Comprehensive Safety: Flame retardant, low smoke, and halogen-free construction ensure maximum personnel protection

  • Robust Protection: Tinned copper braid armour delivers mechanical strength and reliable grounding

  • Corrosion Resistance: Tinned components withstand harsh marine environments

  • Optimal Flexibility: Designed for easy installation in complex offshore applications

  • Full Compliance: Meets IEC 60228, IEC 60092-350, and NEK 606 standards

Applications

Engineered for reliable low voltage power transmission across various offshore installations:

  • Drilling Operations: Jack-up rigs, semi-submersible platforms, and drilling ships

  • Production Facilities: TLP, SPAR, fixed platforms, and semi-submersible production units

  • Floating Systems: FPSO and FSO vessels

  • Auxiliary Systems: Equipment power supply and secondary power distribution networks

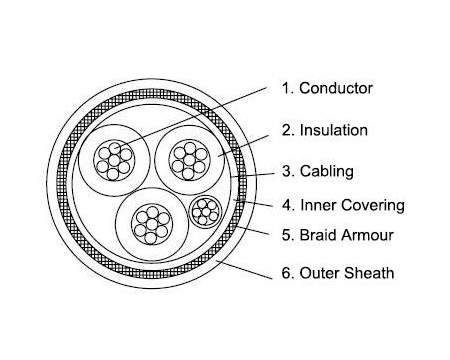

Construction

Precision-engineered with optimal material selection for each layer:

  1. Conductor: Circular tinned stranded copper compliant with IEC 60228

  2. Insulation: Cross-linked Polyethylene (XLPE) for enhanced dielectric strength

  3. Cabling: Cores laid up together and wrapped with polyester tape

  4. Inner Covering: Halogen-free flame retardant compound

  5. Braid Armour: Tinned copper wire braid per IEC 60092-350

  6. Outer Sheath: Halogen-free thermoset compound, Type SHF2

Specifications

  • Rated Voltage: 0.6/1KV

  • Insulation Material: Cross-linked Polyethylene (XLPE)

  • Standards Compliance: NEK 606, IEC 60228, IEC 60092-350

  • Flame Performance: Flame retardant

  • Smoke Emission: Low smoke density

  • Halogen Content: Halogen-free

  • Sheath Type: SHF2 compound

  • Temperature Rating: -40°C to +90°C operational

  • Installation: Suitable for fixed and moving offshore installations
