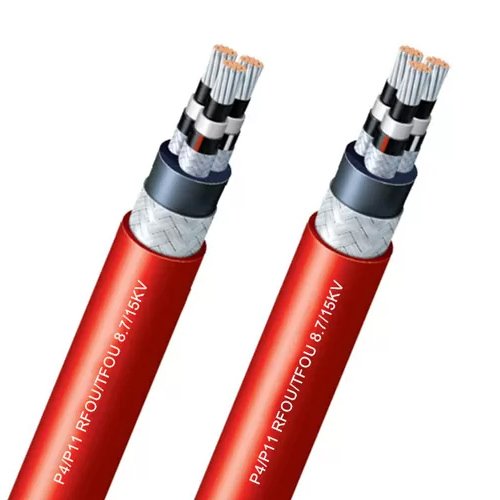

P4/P11 RFOU 8.7/15KV Offshore Power Cable | NEK 606 Compliant | Mud Resistant

HEPR/EPR Insulation Marine Shipboard Power Cables NEK 606 Offshore Power Cable
Description

Product Overview

The P4/P11 RFOU 8.7/15KV Offshore Power Cable is engineered to deliver uncompromising performance in the most demanding offshore environments. Fully compliant with NEK 606 standards, this cable combines flame retardancy, low smoke emission, halogen-free construction, and exceptional mud resistance - making it the ideal choice for critical power transmission applications where safety and reliability are paramount.

Key Features & Benefits

  • Complete Safety Package: Flame retardant, low smoke, and halogen-free properties ensure maximum personnel and equipment protection

  • Superior Mud Resistance: Special SHF Mud outer sheath withstands harsh offshore drilling conditions

  • Optimized Electrical Performance: EPR insulation provides excellent dielectric properties and thermal stability

  • Enhanced Durability: Tinned copper braid armour offers mechanical protection and reliable grounding

  • Corrosion Protection: Fully tinned construction ensures longevity in saltwater environments

  • Full Standards Compliance: Meets IEC 60228, IEC 60092-350, and NEK 606 requirements

Applications

Specifically designed for rigorous offshore power transmission applications:

  • Drilling Operations: Drilling ships, jack-up rigs, and semi-submersible drilling platforms

  • Production Facilities: TLP, semi-submersible, SPAR, and fixed production platforms

  • Floating Units: FPSO (Floating Production Storage and Offloading) and FSO vessels

  • Marine Power Distribution: Critical inter-platform power connections and subsea applications

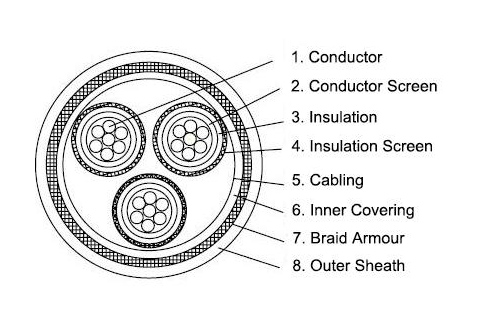

Construction

  1. Conductor: Circular tinned stranded copper compliant with IEC 60228

  2. Conductor Screen: Semi-conducting material for uniform electrical field distribution

  3. Insulation: High-grade Ethylene Propylene Rubber (EPR) for reliable electrical performance

  4. Insulation Screen: Semi-conducting material with integrated tinned copper wire braid

  5. Cabling: Precision-laid cores secured with polyester tape wrapping

  6. Inner Covering: Halogen-free compound for additional protection

  7. Braid Armour: Tinned copper wire braid manufactured per IEC 60092-350

  8. Outer Sheath: Halogen-free thermoset compound, Type SHF Mud (Red for identification)

Specifications

  • Rated Voltage: 8.7/15KV

  • Standards: NEK 606 Compliant, IEC 60228, IEC 60092-350

  • Flame Performance: Flame retardant per IEC 60332 series

  • Smoke Emission: Low smoke density

  • Halogen Content: Halogen-free compliant

  • Special Feature: Mud resistant construction

  • Temperature Range: -40°C to +90°C operational
