P4 RFOU 8.7/15KV Offshore Power Cable | NEK 606 Compliant | Halogen Free

Offshore Power Cable NEK 60631
Description

Product Overview

The P4 RFOU 8.7/15KV Offshore Power Cable represents the pinnacle of safety and reliability for critical offshore power distribution systems. Engineered to meet rigorous NEK 606 standards, this cable delivers superior performance in the most challenging marine environments where fire safety, equipment protection, and continuous operation are paramount.

Key Features & Benefits

  • Enhanced Safety System: Flame retardant, low smoke, and halogen-free (SHF2) properties minimize toxic emissions and corrosion risks during fire incidents

  • Optimized Electrical Performance: EPR insulation maintains excellent dielectric strength while offering superior thermal stability

  • Maximum Durability: Tinned copper braid armour provides mechanical protection and reliable grounding continuity

  • Corrosion Resistance: Tinned copper construction throughout ensures long-term performance in saltwater environments

  • Full Compliance: Compliant with IEC 60228, IEC 60092-350, and NEK 606 offshore standards

Applications

Specifically designed for offshore power transmission across various marine installations:

  • Drilling Operations: Jack-up rigs, semi-submersible platforms, and drilling ships

  • Production Facilities: TLPs, SPAR platforms, fixed platforms, and semi-submersible production units

  • Floating Systems: FPSO (Floating Production Storage and Offloading) and FSO vessels

  • Subsea Power Distribution: Critical power links between offshore installations

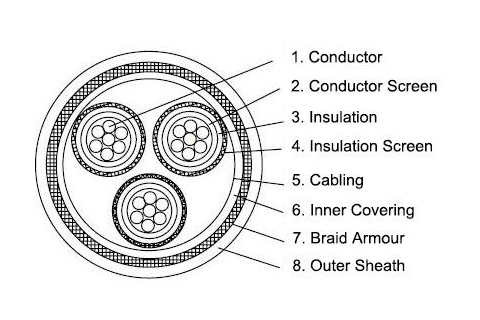

Construction

P4 RFOU 8.7/15KV Offshore Power Cable | NEK 606 Compliant | Halogen Free

  1. Conductor: Circular tinned stranded copper compliant with IEC 60228 Class 2

  2. Conductor Screen: Semi-conducting material for uniform electrical field distribution

  3. Insulation: Premium grade Ethylene Propylene Rubber (EPR) for optimal electrical properties

  4. Insulation Screen: Semi-conducting layer with integrated tinned copper wire braid

  5. Cabling: Precision laid-up cores with polyester tape binding

  6. Inner Sheath: Halogen-free compound providing additional layer protection

  7. Braid Armour: Tinned copper wire braid manufactured per IEC 60092-350

  8. Outer Sheath: Halogen-free thermoset compound, Type SHF2 (Red color for easy identification)

Specifications

  • Rated Voltage: 8.7/15kV

  • Standards Compliance: NEK 606, IEC 60228, IEC 60092-350

  • Flame Performance: Flame retardant IEC 60332-1

  • Smoke Emission: Low smoke density

  • Halogen Content: Halogen-free compliant

  • Temperature Rating: -40°C to +90°C (operating)
