Product Code: CKJV80/NA
Rated Voltage: 150/250V
Operating Temperature: Up to 90℃
Product Overview
CKJV80/NA is a highly flexible and fire-resistant marine control cable featuring XLPE insulation and a key distinguishing feature: Tinned Copper Wire Braided Armor supplied without an outer sheath. This unique construction provides excellent flexibility, effective electromagnetic shielding, and is designed for integration into control panels, cable trays, or situations where an overall jacket is not required or will be applied separately.
Key Features
-
Copper Wire Braided Armor: Offers superior flexibility, excellent EMI shielding, and corrosion resistance.
-
No Outer Sheath: Facilitates easier bundling, penetration sealing, and integration into complex systems.
-
Excellent Fire Resistance: Maintains circuit integrity during a fire (IEC 60331).
-
Flame Retardant & LSZH: Inhibits flame spread (IEC 60332) and emits low smoke & zero halogen (IEC 60754, IEC 61034) for enhanced safety.
-
Durable PVC Sheath: Provides primary insulation and protection for the core.
Applications
This cable is ideally suited for power, lighting, and control systems in:
-
Marine vessels and offshore platforms (e.g., oil platforms)
-
Shipbuilding and offshore engineering
-
Control panels and switchboards where flexibility and shielding are critical
-
Metallurgical, chemical, and power plants
-
Mining and other demanding industrial environments
Standards Compliance
This product is manufactured in accordance with the following international standards:
-
IEC 60092-350, 376 (General Construction & Design)
-
IEC 60228 (Conductors)
-
IEC 60092-360 (Insulation & Sheath)
-
IEC 60331 (Fire Resistance)
-
IEC 60332-1 & IEC 60332-3-22 (Flame Retardant)
-
IEC 60754 (Halogen Free)
-
IEC 61034 (Low Smoke)

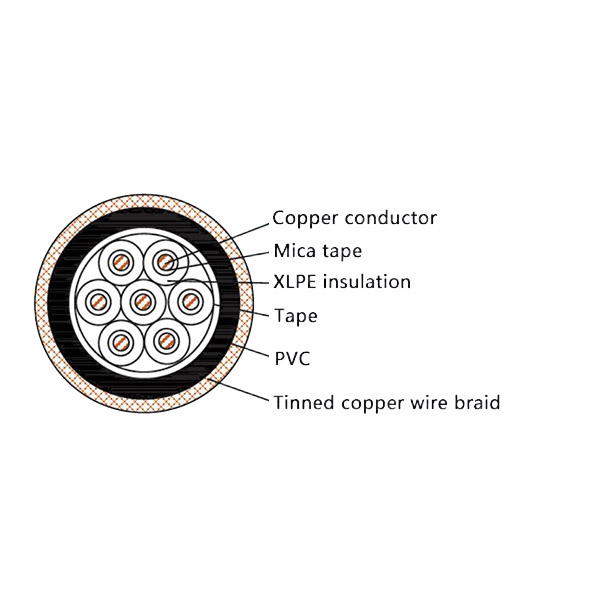

Construction & Technical Data
Cable Construction
| Item | Code | Description / Material |
|---|---|---|
| Series Code | CK | Marine & Offshore Control Cable |
| Conductor | - | Tinned or Plain Stranded Annealed Copper Wire |
| Insulation | J | Mica Glass Tape + XLPE Insulation |
| Sheath | V | PVC |
| Armor | 8 | Tinned/Plain Copper Wire Braided |
| Outer Sheath | 0 | Without Outer Sheath |
| Flammability | NA | Fire Resistant |
Specifications
| Specification | Details |
|---|---|
| Rated Voltage | 150/250V |
| Long-term Operating Temperature | 90℃ |
| Core Numbers | 1, 2, 3, 4, 5, 7, 10, 12, 14, 16, 19, 24, 27, 30, 37 Cores |
| Conductor Cross-Section | 0.5mm², 0.75mm², 1.0mm², 1.5mm², 2.5mm² |
Ordering Information
When ordering, please specify the following parameters:
-
Product Code: CKJV80/NA
-
Number of Cores
-
Conductor Cross-Section
-
Length
Example: CKJV80/NA 19x1.5mm²
