Product Code: CKJV82/NA
Rated Voltage: 150/250V
Operating Temperature: Up to 90℃
Product Overview
CKJV82/NA is a fire-resistant marine control cable designed with XLPE insulation and a key feature: Tinned Copper Wire Braided Armor. This construction provides excellent flexibility, superior electromagnetic shielding, and corrosion resistance, making it ideal for sensitive control circuits and dynamic applications on ships and offshore installations where circuit integrity and signal quality are paramount.
Key Features
-
Copper Wire Braided Armor: Offers exceptional flexibility, effective EMI shielding, and enhanced corrosion resistance compared to steel armor.
-
Excellent Fire Resistance: Maintains circuit integrity during a fire (IEC 60331).
-
Flame Retardant & LSZH: Inhibits flame spread (IEC 60332) and emits low smoke & zero halogen (IEC 60754, IEC 61034) for safer evacuation.
-
Durable Sheathing: PVC inner and outer sheaths provide robust environmental protection.
-
Marine & Industrial Grade: Built to withstand harsh conditions including moisture, oils, and mechanical stress.
Applications
This cable is ideally suited for power, lighting, and control systems in:
-
Marine vessels and offshore platforms (e.g., oil platforms)
-
Shipbuilding and offshore engineering
-
Applications requiring high flexibility and EMI shielding
-
Metallurgical, chemical, and power plants
-
Mining and other demanding industrial environments
Standards Compliance
This product is manufactured in accordance with the following international standards:
-
IEC 60092-350, 376 (General Construction & Design)
-
IEC 60228 (Conductors)
-
IEC 60092-360 (Insulation & Sheath)
-
IEC 60331 (Fire Resistance)
-
IEC 60332-1 & IEC 60332-3-22 (Flame Retardant)
-
IEC 60754 (Halogen Free)
-
IEC 61034 (Low Smoke)
Construction & Technical Data

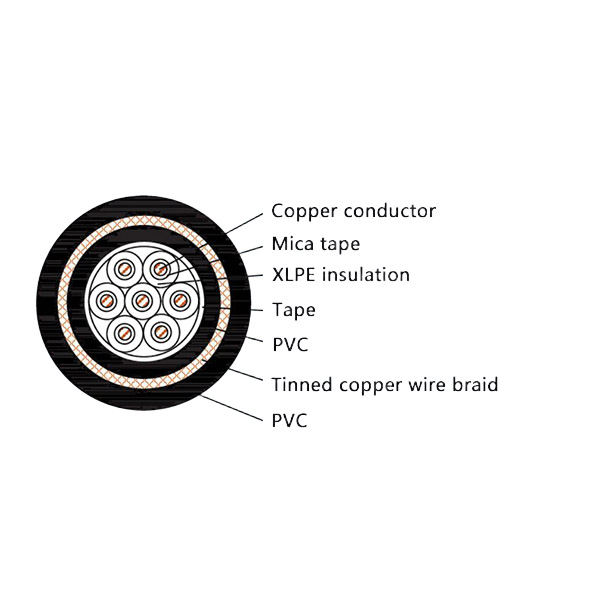

Cable Construction
| Item | Code | Description / Material |
|---|---|---|
| Series Code | CK | Marine & Offshore Control Cable |
| Conductor | - | Tinned or Plain Stranded Annealed Copper Wire |
| Insulation | J | Mica Glass Tape + XLPE Insulation |
| Inner Sheath | V | PVC |
| Armor | 8 | Tinned/Plain Copper Wire Braided |
| Outer Sheath | 2 | PVC Outer Sheath |
| Sheath Color | - | Standard Black (other colors on request) |
| Flammability | NA | Fire Resistant |
Specifications
| Specification | Details |
|---|---|
| Rated Voltage | 150/250V |
| Long-term Operating Temperature | 90℃ |
| Core Numbers | 1, 2, 3, 4, 5, 7, 10, 12, 14, 16, 19, 24, 27, 30, 37 Cores |
| Conductor Cross-Section | 0.5mm², 0.75mm², 1.0mm², 1.5mm², 2.5mm² |
Ordering Information
When ordering, please specify the following parameters:
-
Product Code: CKJV82/NA
-
Number of Cores
-
Conductor Cross-Section
-
Length
Example: CKJV82/NA 7x1.0mm²
