Product Overview
The CHJV80/SA is a high-performance Flame Retardant Marine Communication Cable designed for reliable signal transmission in demanding environments. It features durable Cross-Linked Polyethylene (XLPE) insulation and a protective tinned copper wire braid armor, offering an excellent balance of electrical integrity, mechanical strength, and fire safety for fixed installations onboard ships and offshore platforms.
Key Features & Benefits
-
Reliable XLPE Insulation: Provides superior electrical properties, excellent thermal resistance (rated for 90°C), and enhanced aging performance compared to standard polyethylene, ensuring long-term signal stability.
-
Effective EMI Protection & Flexibility: The tinned copper wire braided armor offers good electromagnetic interference (EMI) shielding and mechanical protection while maintaining cable flexibility for easier routing in confined spaces.
-
Verified Flame Retardancy: Complies with IEC 60332-1 (single wire) and IEC 60332-3-22 (bunched cables) flame tests, helping to limit flame propagation along cables in the event of a fire.
-
Streamlined Construction: Designed without an outer sheath (Code: 0), making it suitable for installation within protected panels, conduits, or enclosed trays where additional external protection is not required.
Technical Specifications
-
Rated Voltage: 150/250V
-
Maximum Continuous Conductor Temperature: 90°C
-
Available Conductor Cross-Sections: 0.5 mm², 0.75 mm², 1.0 mm², 1.5 mm², 2.5 mm²
-
Core Configuration: Available from 1 to 37 pairs.

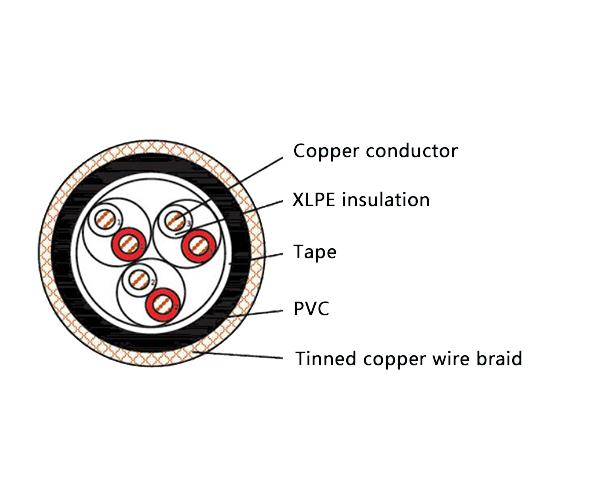

Cable Construction Details
| Item | Code | Material / Description |
|---|---|---|
| Series Code | CH | Marine & Offshore Symmetrical Communication Cable |
| Conductor | / | Tinned / Plain Stranded, Annealed Copper Wire |
| Insulation | J | Cross-Linked Polyethylene (XLPE) |
| Inner Sheath | V | Polyvinyl Chloride (PVC) |
| Armor | 8 | Tinned / Plain Copper Wire Braided |
| Outer Sheath | 0 | Without Outer Sheath |
| Flammability | SA | Bunched Cables Flame Retardant |
Standards & Compliance
This cable is manufactured in accordance with the following international standards:
-
General Design: IEC 60092-350, IEC 60092-376
-
Conductor: IEC 60228
-
Insulation & Sheath: IEC 60092-360
-
Flame Retardant: IEC 60332-1, IEC 60332-3-22
-
Material Safety: Note: This standard version with PVC components is designed for flame retardancy. For applications requiring Halogen-Free (IEC 60754) and Low Smoke (IEC 61034) performance, please consult our dedicated LSHF product lines.
Applications
This cable is engineered for use in:
-
Telecommunication, instrumentation, computer, and data processing systems within marine vessels and offshore constructions (e.g., oil & gas platforms).
-
Control and communication networks in industrial plants such as power generation facilities, chemical processing plants, metallurgy works, and mining operations, particularly where EMI protection is valued.
