Product Overview
The CHJV82/SA is a high-performance Flame Retardant Marine Communication Cable designed for reliable signal transmission where electromagnetic compatibility (EMC) and flexibility are key. It combines durable XLPE (Cross-Linked Polyethylene) insulation with a flexible Tinned Copper Wire Braid Armor, providing excellent shielding against interference. Protected by an overall PVC Outer Sheath, this cable is ideal for the sensitive electronic environments found on ships, offshore platforms, and in industrial plants.
Key Features & Benefits
-
Superior Electrical Performance: XLPE insulation ensures stable signal integrity, high thermal endurance (up to 90°C), and resistance to aging.
-
EMI/RFI Shielding & Flexibility: The Tinned Copper Braid Armor (Code 8) offers effective protection against electromagnetic and radio-frequency interference, crucial for sensitive communication and control systems. It is more flexible than steel armor, facilitating easier installation in tight spaces.
-
Comprehensive Protection: The overall PVC Outer Sheath (Code 2) provides robust mechanical protection, moisture resistance, and durability against oils and chemicals commonly found in industrial and marine settings.
-
Flame Retardant Safety: Complies with IEC 60332-1 and IEC 60332-3-22 standards for flame retardancy, helping to prevent the spread of fire along cable runs.
Technical Specifications
-
Rated Voltage: 150/250V
-
Maximum Continuous Conductor Temperature: 90°C
-
Available Conductor Cross-Sections: 0.5 mm², 0.75 mm², 1.0 mm², 1.5 mm², 2.5 mm²
-
Core Configuration: Available from 1 to 37 pairs.
-
Standard Outer Sheath Color: Black (other colors typically available on request).

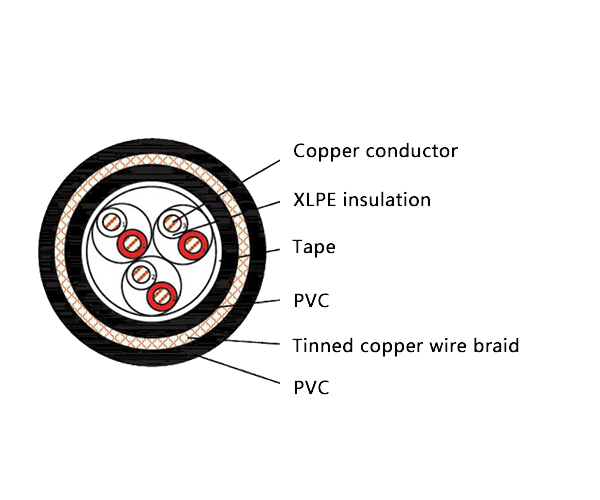

Cable Construction
| Item | Code | Material / Description |
|---|---|---|
| Series Code | CH | Marine & Offshore Symmetrical Communication Cable |
| Conductor | / | Tinned / Plain Stranded, Annealed Copper Wire |
| Insulation | J | Cross-Linked Polyethylene (XLPE) |
| Inner Sheath | V | Polyvinyl Chloride (PVC) |
| Armor | 8 | Tinned / Plain Copper Wire Braided |
| Outer Sheath | 2 | PVC Outer Sheath |
| Flammability | SA | Bunched Cables Flame Retardant |
Standards & Compliance
This cable is designed and tested in accordance with the following international standards:
-
General Design: IEC 60092-350, IEC 60092-376
-
Conductor: IEC 60228
-
Insulation & Sheath: IEC 60092-360
-
Flame Retardant: IEC 60332-1, IEC 60332-3-22
-
Material Safety: Note: The listed IEC 60754 (Halogen Free) and IEC 61034 (Low Smoke) standards pertain to general material test methods. This cable features a PVC sheath designed for flame retardancy. For installations with strict Halogen-Free Low Smoke (LSHF) requirements, please specify our dedicated LSHF product range.
Typical Applications
This shielded and armored cable is ideally suited for:
-
Telecommunication, instrumentation, computer networks, and information processing systems on marine vessels and offshore platforms, especially where protection from electrical noise is critical.
-
Control, signaling, and data networks in industrial environments such as power plants, chemical facilities, metallurgy plants, and mining operations.
