Product Overview
Engineered for extreme marine environments, these 600V multi-conductor control cables deliver reliable signal/power transmission in Arctic conditions (–40°C). Available in unarmored or armored configurations with optional pair/triple shielding, they combine 125°C XLPE insulation with dual-layer Arctic neoprene for unparalleled corrosion and abrasion resistance.
Core Configurations

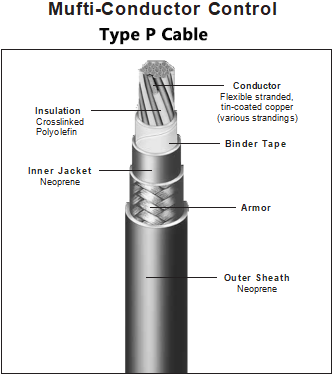

1. Multi-Conductor Control Cable (Unarmored/Armored)
| Layer | Specification |
|---|---|
| Conductor | Annealed tinned copper (ASTM B33, B8, B172) |
| Insulation | Crosslinked Polyolefin (125°C continuous rating) |
| Color Code | IEEE-45, UL1309, or custom |
| Filler/Binder Tape | Flame-retardant, non-hygroscopic |
| Inner Jacket | Heavy-Duty Arctic Neoprene |
| Armor (Optional) | Bronze, tinned copper, or aluminum braid |
| Outer Sheath | Heavy-Duty Arctic Neoprene |

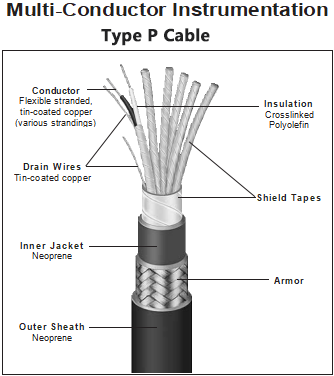

2. Multi-Shielded Pairs/Triples (Overall Shield)
| Layer | Specification |
|---|---|
| Conductor | Annealed tinned copper (ASTM B33, B8, B172) |
| Insulation | Crosslinked Polyolefin (125°C) |
| Pair/Triple Assembly | Twisted conductors + tinned copper drain wire + aluminum/polyester tape shield |
| Overall Shield | Aluminum/polyester tape + tinned copper drain wire |
| Inner/Outer Sheath | Heavy-Duty Arctic Neoprene |
| Armor (Optional) | Bronze, tinned copper, or aluminum braid |
Key Specifications
| Parameter | Specification |
|---|---|
| Voltage Rating | 600V AC |
| Temp Range | –40°C to +125°C (operational) |
| Conductor Standard | ASTM B33 (Tinned Copper), B8 (Stranding), B172 (Flexibility) |
| Shielding | Individual pair/triple shields + overall braid/tape |
| Environmental | UV-resistant, saltwater/oil-proof neoprene |
Technical Advantages
-
Arctic Performance: Dual-layer neoprene withstands –40°C for polar operations.
-
EMI/RFI Protection:
-
Braided armor (bronze/copper/aluminum)
-
Aluminum-polyester tape shields (paired/tripled cables)
-
-
Fire Safety: Flame-retardant fillers + 125°C XLPE insulation.
-
Corrosion Defense: Tinned copper conductors + neoprene barrier.
-
Customization: IEEE-45/UL1309 color codes or customer-specified.
Applications
-
Marine Control Systems: Engine rooms, thruster controls, navigation systems
-
Offshore Platforms: Drilling rigs, crane controls, safety circuits
-
Arctic Vessels: Icebreakers, research ships, LNG carriers
-
Critical Zones: Exposed decks, machinery spaces, sub-zero environments
Compliance & Standards
-
Conductor: ASTM B33, B8, B172
-
Insulation: UL 1309, IEEE 45
-
Environmental: IEC 60092 (Marine Cable Standards)
Installation Notes
| Configuration | Min. Bending Radius |
|---|---|
| Armored Cables | 10 × cable diameter |
| Unarmored Cables | 6 × cable diameter |
