TFL 600V Telecom Power Cable | 6mm² & 10mm² 2-Core LSZH | IEC 60332-3/UL2731 | Kazakhstan Market

Product Overview

TFL Halogen-Free Telecom Power Cables deliver reliable power transmission for critical telecommunications infrastructure in Kazakhstan. Featuring flat parallel conductors, dual-layer shielding, and LSZH materials, these cables ensure fire safety (IEC 60332-3 Cat C), EMI protection, and 90°C thermal stability - ideal for central office equipment and outdoor telecom installations.

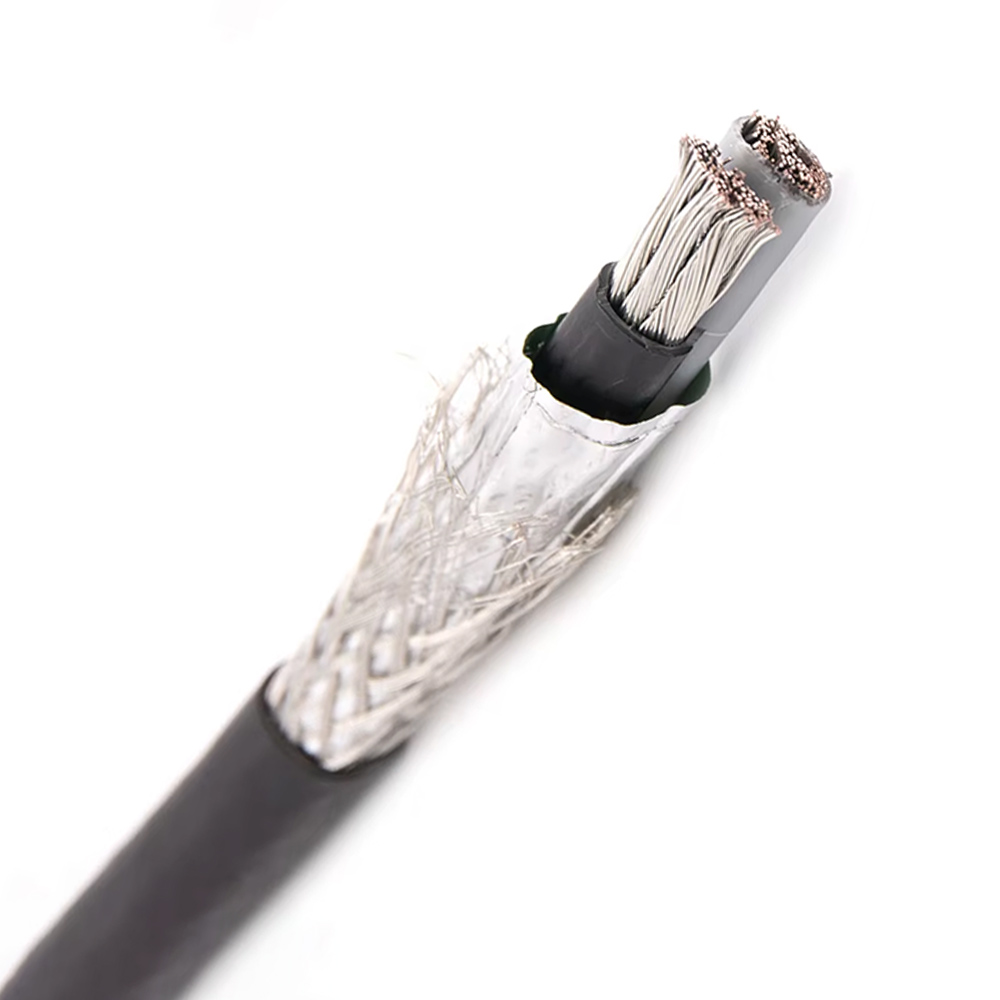

Key Features & Construction

  1. Conductor:

    • Tinned annealed copper (IEC 60228 Class 5)

    • Flat parallel configuration (reduced inductance)

    • Available Sizes: 6mm² (10AWG) & 10mm² (8AWG)

  2. Insulation:

    • Flame-retardant polyolefin (black/grey)

  3. Shielding System:

    • Inner: 100% coverage aluminum-polyester tape

    • Outer: Choice of:

      • Tinned copper braid

      • Tinned copper-clad aluminum (CCA) braid

  4. Sheath:

    • Grey: Indoor use (FR polyolefin)

    • Black: UV-resistant outdoor use (sunlight stabilized)

Technical Specifications

Model Conductor Dimensions (H×W mm) Weight (kg/100m) Max DC Resistance @20°C (Ω/km)
TFL 492324 2×6mm² (10AWG) 9.5×9.5 19.3 (Cu) / 18.5 (CCA) 3.39
TFL 492324/0 2×6mm² (10AWG) 9.5×9.5 19.3 (Cu) / 18.5 (CCA) 3.39
TFL 492325 2×10mm² (8AWG) 10.5×11.5 29.2 (Cu) / 27.9 (CCA) 1.95
TFL 492325/0 2×10mm² (8AWG) 10.5×11.5 29.2 (Cu) / 27.9 (CCA) 1.95

*Note: All models feature identical electrical specs for /0 variants*

Performance & Certifications

  • Voltage Rating: 600V AC/DC

  • Temperature Range: -40°C to 90°C (dry conditions)

  • Fire Safety:

    • IEC 60332-3 Category C

    • UL 1685 FT4 Vertical Tray

  • Standards Compliance:

    • UL 2731 (Telecom Central Office Power)

    • IEC 60754-1/2 (Halogen-free)

    • RoHS Compliant

  • EMI Protection: >90% shielding effectiveness

Applications (Kazakhstan Market Focus)

  • Telecom Infrastructure:

    • Central office power distribution

    • Base station power feeds

    • 5G equipment power supply

  • Installation Environments:

    • Indoor: Equipment rooms, data centers (grey jacket)

    • Outdoor: Tower cabinets, rooftop telecom units (UV-resistant black jacket)

  • Critical Systems:

    • Battery backup circuits

    • High-availability power buses

Engineering Advantages

  • Low Inductance Design: Flat parallel conductors minimize voltage drop

  • Corrosion Resistance: Tinned copper/CAA braid suits Kazakhstan's continental climate

  • Fire Safety: LSZH materials limit toxic fumes in confined spaces

  • Deployment Flexibility: Dual jacket options simplify indoor/outdoor transitions

Kazakhstan Market Compliance

  • Validated for use per GOST fire safety standards

  • Temperature compatible with regional extremes (-40°C to +45°C ambient)

  • UV-resistant black jacket certified for 20+ years outdoor service
