Product Overview

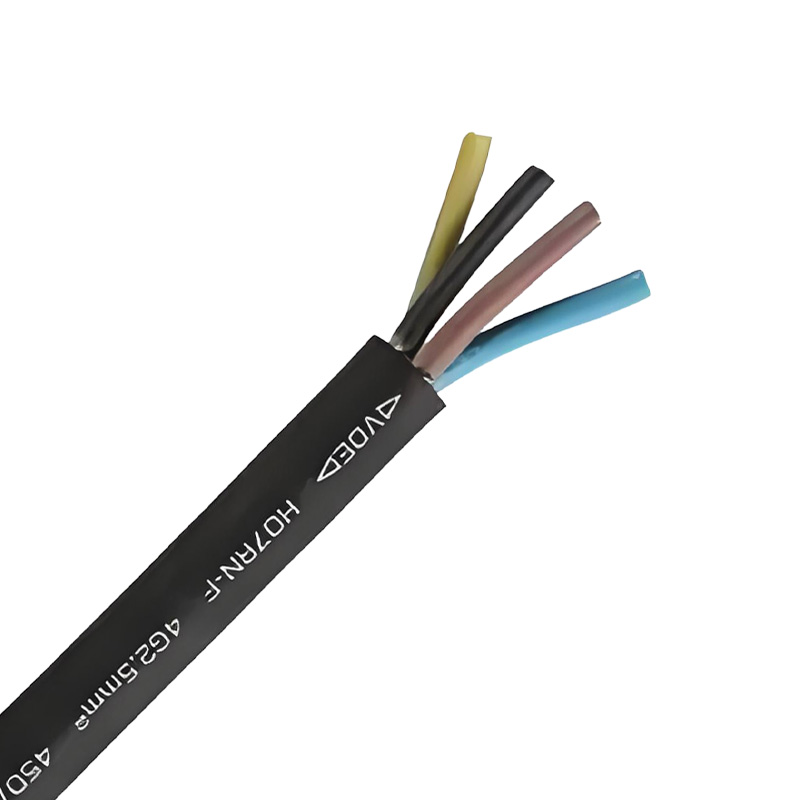

Title: CE Certified H07RN-F 4 Core Flexible Rubber Cable (450/750V) | Oil-Resistant Industrial Power Cable
Product Category: Electrical Cables > <｜place▁holder▁no▁3｜> Cables > Flexible Rubber Cables > Multi-Core Power Cables
Technical Specifications
| Parameter | Specification |
|---|---|
| Standard Compliance | VDE 0282 / GB 5013.4 (H07RN-F) |
| Rated Voltage (U₀/U) | 450/750V |
| Conductor | Plain/Tinned Copper (Flexible Stranded) |
| Insulation | EPDM Rubber |
| Sheath | CPE (Chlorinated Polyethylene) |
| Core Identification | Color Coded (Brown, Black, Grey, Blue/Y-G) |
| Temp. Range | Operating: -35°C to +60°C Installation: ≥ -20°C |
| Oil/Fuel Resistance | Certified for mineral oil/fuel environments |
| Weather Resistance | W-Type (Outdoor Rated) |
| Flame Performance | ZR-Type (Flame Retardant Option) |
Construction & Dimensions (4-Core Configuration)
| Cores × mm² | Strand Ø (mm) | Insul. Thick (mm) | Sheath Thick (mm) | Cable Ø (mm) | Max. Resistance Ω/km (20°C) |
|---|---|---|---|---|---|
| 4×1.0 | 0.20 | 0.8 | 1.5 | 9.9 ± 0.5 | ≤ 19.5 |
| 4×1.5 | 0.25 | 0.8 | 1.7 | 11.1 ± 0.5 | ≤ 13.3 |
| 4×2.5 | 0.25 | 0.9 | 1.9 | 13.3 ± 0.5 | ≤ 7.98 |
| 4×4.0 | 0.30 | 1.0 | 2.0 | 15.2 ± 0.5 | ≤ 4.95 |
| 4×6.0 | 0.30 | 1.0 | 2.3 | 17.2 ± 0.5 | ≤ 3.30 |
Material Properties
-
Conductor: Oxygen-free copper strands (tinned option available) for maximum flexibility and corrosion resistance
-
Insulation: EPDM rubber provides:
-
Excellent thermal stability (-35°C to 105°C)
-
Ozone/UV resistance
-
-
Sheath: CPE delivers:
-
IP67-equivalent weather protection
-
Superior oil/fuel resistance (ISO 1817 tested)
-
Abrasion resistance (EN 50396 certified)
-
Key Applications
-
Mobile Power Systems: Generators, temporary site distribution
-
Heavy Machinery: Excavators, cranes, mining equipment
-
Industrial Tools: Welding sets, portable grinders
-
Outdoor Installations: Construction sites, agricultural machinery
-
Hazardous Areas: Oil refineries, workshops (with ZR variant)
Product Advantages
Compliance Assurance
CE certified with dual VDE/GB standards compliance for global acceptance
Extreme Environment Durability
CPE sheath withstands:
-
UV radiation
-
Hydraulic oils (ISO 1817)
-
Saltwater immersion
-
Abrasion (50,000+ flex cycles)
Operational Safety
-
Flame-retardant option (IEC 60332-1)
-
-35°C cold impact resistance (EN 60811)
-
Short-circuit protection (IEC 60949)
Installation Efficiency
-
30% better flexibility vs. standard PVC cables
-
Reduced bending radius (6× cable diameter)
-
Color-coded cores for error-free termination
Engineering Selection Notes
-
Current Rating: 4×6.0mm² carries 47A (40°C ambient, IEC 60502-1)
-
Bending Radius: Minimum 6× overall diameter during installation
-
Certifications: CE, RoHS, UKCA, GOST-R (upon request)
-
Packaging: 100m drums with moisture-resistant wrapping
