Description

MSHA/UL Type G 2kV Portable Mining Cable | Oil/Water Proof Flexible Trailing Cable | 3/4 Conductor Heavy Duty Power

Product Overview

Type G 2kV Mining Cable delivers reliable, high-flexibility power in demanding industrial environments. Rated for 2000 volts, this UL and MSHA approved cable is engineered for grounded three-phase AC systems requiring exceptional durability, environmental resistance, and continuous operation in harsh conditions.

Key Features & Benefits:

  • Superior Environmental Resistance: Exceptional performance against oil, water, solvents, corrosives, UV radiation, aging, cuts, tears, and abrasions. Rated for continuous submersion in shallow water.

  • Optimized Flexibility: Rope-lay stranded copper conductors and EPR insulation ensure outstanding flexibility for dynamic mining applications.

  • Heavy-Duty Construction: Designed for demanding service in mining, tunneling, quarries, and industrial sites with portable power requirements.

  • Easy Installation: Non-conductive mylar tape separator enables clean, hassle-free stripping during termination.

  • Permanent Identification: Embossed jacket marking provides clear traceability (UL, MSHA, Type G).

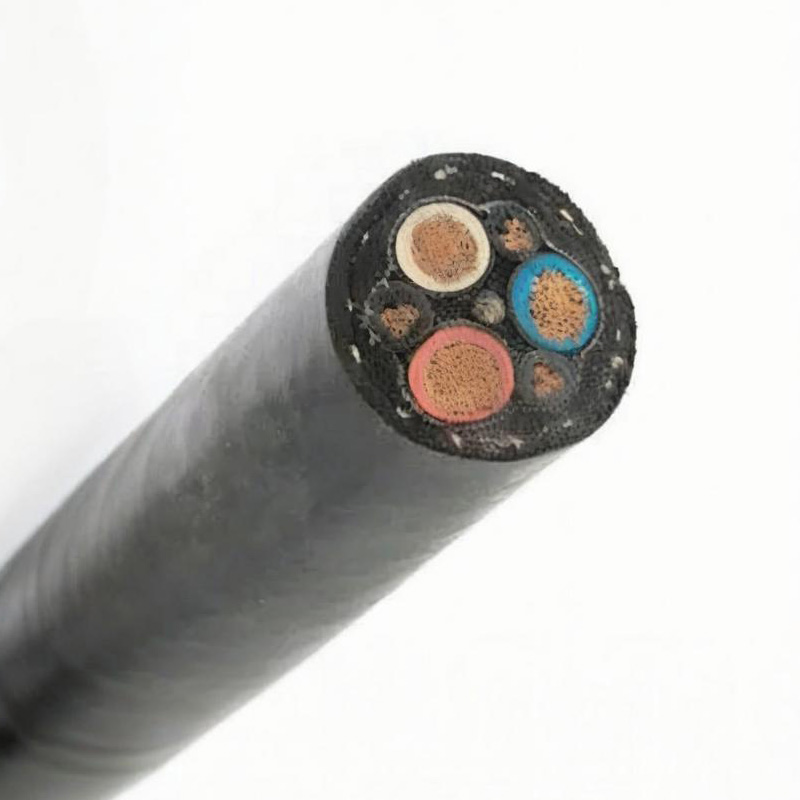

Construction & Materials (Conforming to ASTM B-33/B-172, ICEA S-75-381/NEMA WC-58):

  1. Conductors:

    • Tin-coated soft-drawn annealed copper

    • Rope-lay stranding for maximum flexibility

    • Compliant with ASTM B-33 / ASTM B-172

  2. Separator:

    • Non-conductive mylar tape

    • Ensures clean insulation stripping

  3. Insulation:

    • Ethylene Propylene Rubber (EPR)

    • Ozone, oil, and water-resistant

    • Flame-resistant compound (90°C rating)

    • Color-coded: Black, White, Red, Orange

    • Compliant with ICEA S-75-381 / NEMA WC-58

  4. Jacket:

    • Abrasion-resistant compound

    • Embossed permanent marking

Type G Technical Specifications:

Conductor Size (AWG) Strands Insulation Thickness (in) O.D. (in) Ampacity (A)¹ Weight (lbs/1000 ft)
3-Conductor
8 168 0.06 0.91 65 638
6 133 0.06 1.01 87 722
4 259 0.06 1.17 114 1010
2 308 0.06 1.34 152 1415
1 385 0.08 1.51 177 1785
1/0 273 0.08 1.65 205 2125
2/0 324 0.08 1.75 237 2570
3/0 418 0.08 1.89 274 2895
4/0 532 0.08 2.04 316 3790
4-Conductor
8 168 0.06 0.99 65 604
6 133 0.06 1.11 87 807
4 259 0.06 1.27 114 1280
2 308 0.06 1.48 122 1683
1 385 0.08 1.68 177 2147
1/0 273 0.08 1.79 205 2545
2/0 324 0.08 1.93 237 3005
3/0 418 0.08 2.07 274 3612
4/0 532 0.08 2.26 316 4485

¹ Ampacity values shown for reference. Actual ratings depend on installation conditions per NEC guidelines.

Quality Verification:

Manufactured with comprehensive testing including:

  • Oxygen Bomb Aging Tests

  • Automatic Diameter Measurement

  • ˿2500V High Potential Testing

  • Partial Discharge Detection

  • Flame Resistance Validation

  • DC Resistance Verification

Primary Applications:

  • Power supply for continuous miners, shuttle cars, and LHD equipment

  • Trailing cables for draglines, excavators, and mobile mining machinery

  • Portable power distribution in wet/underground environments

  • Industrial equipment requiring oil-resistant flexible power cables

Certifications:

MSHA Approved | UL Listed (Type G Mining Cable)
