Type SHD-GC 3C 2/0 + 3C 8 AWG 2000V 90°C MSHA & UL ICEA S-75-381 （Custom specifications for various power cables are available）

Product Overview

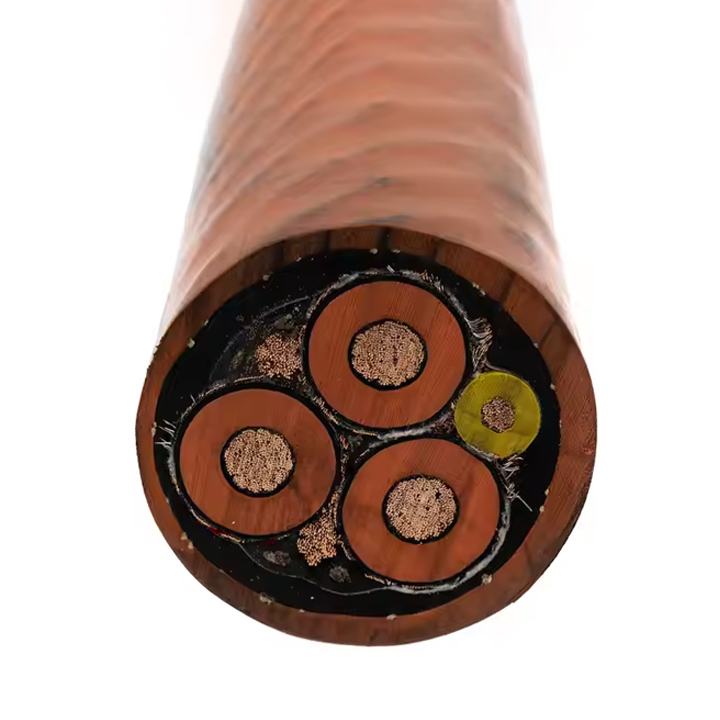

The 3-Conductor Type SHD-GC Mining Cable is an MSHA-accepted, heavy-duty portable cable engineered for extreme mining and industrial environments. Compliant with ICEA S-75-381, it delivers 2000V power transmission with integrated grounding and EMI shielding for high-risk applications involving mobile AC equipment.

Key Features & Benefits

  1. Enhanced Safety System

    • Dedicated grounding conductors + separate yellow ground-check conductor for real-time circuit monitoring

    • Overall copper/textile braid shield with non-conducting tape for EMI/transient voltage protection

    • Flame-retardant CPE jacket (UL flame test certified)

  2. Rugged Construction

    • Conductor: 6 AWG–500 kcmil coated annealed copper, ASTM B172 rope-lay-stranded

    • Insulation: Ethylene Propylene Rubber (EPR) – ozone/heat resistant (90°C rating)

    • Shielding: Copper/textile braid over non-conductive tape + polyamide separator braid

    • Jacket: Thermosetting Chlorinated Polyethylene (CPE) – oil/abrasion/UV resistant

  3. Critical Performance

    • Voltage: 2000V

    • Temp Range: -40°C to +90°C (dry locations)

    • Certifications: MSHA accepted, ICEA S-75-381, UL File E482608

Primary Applications

  • Underground/Surface Mining:
    Longwall miners, shuttle cars, LHD loaders, roof bolters, drills

  • Mobile Industrial Equipment:
    Conveyors, pumps, excavators, draglines in oil/gas, quarries, ports

  • High-Risk Environments:
    Areas requiring ground-fault monitoring + EMI protection

Technical Specifications

Cond. Qty Cond. Size (AWG/kcmil) Cond. Strand Insul. Thk (mm) Ground Cond. (AWG) Ground-Check Cond. (AWG) Jacket Thk (mm) Cable O.D. (mm) Weight (kg/km)
3 6 133 1.8 10 10 3.9 32.8 1682
3 4 259 1.8 8 10 3.9 35.6 2173
3 3 259 1.8 7 10 4.3 38.3 2500
3 2 259 1.8 6 8 4.3 40.4 2961
3 1 259 2.0 5 8 4.8 44.7 3549
3 1/0 259 2.0 4 8 4.8 47.2 4115
3 2/0 329 2.0 3 8 5.2 50.8 4844
3 3/0 413 2.0 2 8 5.2 54.1 5789
3 4/0 532 2.0 1 8 5.6 58.7 7024
3 250 608 2.4 1/0 6 5.6 63.8 8125
3 300 741 2.4 1/0 6 6.0 68.1 9517
3 350 851 2.4 2/0 6 6.4 71.4 10834
3 500 1221 2.4 4/0 6 6.7 81.0 14614

Standards & Approvals

  • Design Standard: ICEA S-75-381 (Portable & Power Feeder Cables for Mines)

  • Safety Certifications: MSHA Accepted (Flame Test Compliant)

  • UL Standard: UL File E482608

  • Material Standards: ASTM B172 (Conductors)

Engineering Selection Notes

  1. Ampacity Calculation: Use NEC Article 400 or MSHA derating tables for current ratings

  2. Bending Radius: Minimum 6× cable O.D. during installation/operation

  3. Ground Monitoring: Mandatory for MSHA compliance – connect ground-check conductor to monitoring circuit

  4. Environmental Limits: Dry locations only; avoid chemical immersion despite oil resistance
