Product Overview

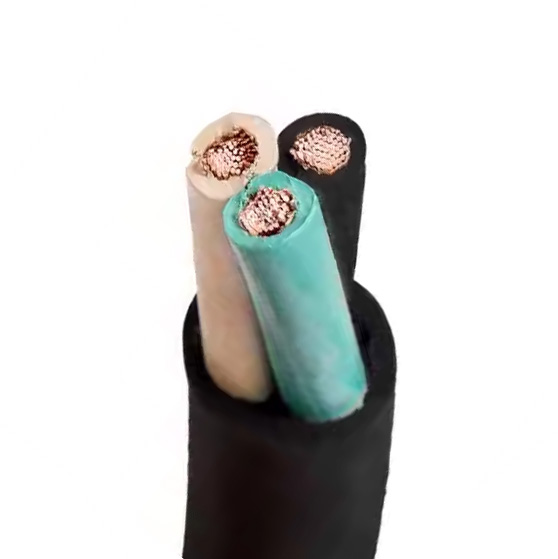

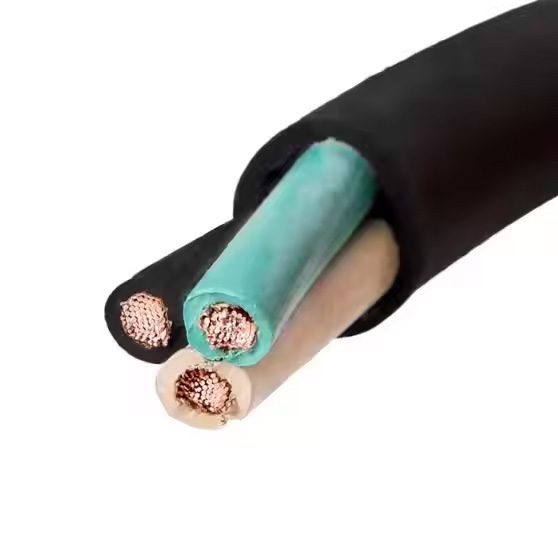

UL and CUL Certified Type W Portable Power Cable delivers reliable 2000V power in extreme conditions. Featuring tinned copper conductors, EPR insulation, and heavy-duty CPE jacket, this MSHA-approved cable meets UL Standard 44 (File E482608). Designed for 3-core (8AWG/6AWG) and 4-core (8AWG/6AWG) configurations in mining and industrial applications.
Construction Details
| Layer | Specification |
|---|---|
| Conductor | Stranded tinned annealed copper: • 133 strands (8AWG/6AWG) for flexibility and corrosion resistance |
| Insulation | Color-coded EPR rubber: • 3-core: Black/White/Green • 4-core: Black/White/Green/Red |
| Core Assembly | Round configuration with rubber filler + binder tape for crush resistance |
| Jacket | Black thermosetting CPE: • Oil/UV resistant (UL 62) • 25% thicker than standard PVC |
Key Technical Specifications
| Parameter | Specification | Standard |
|---|---|---|
| Voltage Rating | 2000V | UL 44, MSHA 30 CFR |
| Temperature Range | -40°C to +90°C (Conductor operation) | UL 1277 |
| Certifications | UL Listed, CUL (Canada), MSHA Approved | UL |
| Jacket Performance | UV resistant (ASTM G154), Abrasion-proof | UL 62 |
Performance Data (3-Core & 4-Core)
*90°C conductor temperature / 30°C ambient*
| Configuration | Size (AWG) | Insul. Thick. (mm) | Approx. Diam. (mm) | Weight (kg/km) | Ampacity (A) |
|---|---|---|---|---|---|
| 3-core | 8 | 1.52 | 27.3* | 1,180* | 127* |
| 6 | 1.52 | 29.1* | 1,700* | 167* | |
| 4-core | 8 | 1.52 | 32.1* | 2,020* | 191* |
| 6 | 1.52 | 35.9* | 2,520* | 217* |
*Representative data based on UL 44 construction. Full 3C/4C test reports available on request.
Critical Features
Corrosion Resistance
Tinned copper conductors prevent sulfur/chemical degradation in mining environments.
Extreme Environment Protection
CPE jacket exceeds UL 62 oil resistance and ASTM G154 UV stability requirements.
Safety Compliance
MSHA-certified for explosive atmospheres (30 CFR Part 18). Dual UL/CUL certification for North America.
Optimized Flexibility
133-strand conductors withstand repeated coiling/uncoiling.
Application Scenarios
-
Underground Mining: Powering drills, pumps, and shuttle cars in MSHA-regulated tunnels.
-
Surface Mining: UV-exposed draglines, excavators, and portable generators.
-
Industrial Plants: Temporary power during maintenance shutdowns.
-
Hazardous Locations: Gas/dust-rich areas requiring explosion-proof certification.
Standards Compliance
| Standard | Requirement |
|---|---|
| UL 44 | Thermoset-Insulated Wires & Cables |
| UL 62 | Flexible Cord Jacket Performance |
| MSHA 30 CFR | Mine Electrical Systems Safety |
| ASTM D4329 | UV Exposure Resistance Testing |
Engineering Selection Guide
-
Core Selection:
-
3-core: 3-phase systems (Phase/Neutral/Ground: Black/White/Green)
-
4-core: 3-phase + ground (Black/White/Green/Red)
-
-
Load Capacity:
Equipment Type Recommended Size Lighting/Sensors 8AWG (83A–127A) Pumps/Medium Machinery 6AWG (109A–167A) Heavy Drills 4AWG+ (Custom order) -
Harsh Condition Solutions:
-
High-corrosion areas: Tinned copper + CPE jacket
-
Abrasive surfaces: Upgrade to 2.41mm jacket (250MCM+)
-
