YJV32 Steel Wire Armored (SWA) Power Cable | XLPE Insulated 90°C | 600/1000V | IEC/BS Certified | Multi-Core Options

Low Voltage Power Cables17
Description

YJV32 Steel Wire Armored (SWA) Power Cable | XLPE Insulated 90°C | 600/1000V | IEC/BS Certified | Multi-Core Options YJV32 Steel Wire Armored (SWA) Power Cable | XLPE Insulated 90°C | 600/1000V | IEC/BS Certified | Multi-Core Options

Product Overview

The YJV32 Armored Power Cable provides robust electrical transmission for industrial and infrastructure projects. Featuring XLPE insulation, copper conductors, and galvanized steel wire armor (SWA), this 600/1000V-rated cable withstands mechanical stress, moisture, and underground burial while maintaining 90°C continuous operation. Ideal for power networks requiring crush resistance and long-term reliability.

Key Specifications

Parameter Specification
Conductor Stranded Copper (IEC 60228 Class 1/2)
Insulation XLPE (90°C rated)
Armor Type Galvanized Steel Wires (SWA)
Outer Sheath PVC/ST2 (Standard) or LSZH/FR/UV-Resistant
Voltage Rating 600/1000V AC
Operational Temp -40°C to +90°C
Standards IEC 60502-1, BS 5467, AS/NZS 5000.1
Fire Safety IEC 60332-1 (Standard) / IEC 60332-3 (FR Option)

Cable Construction

  1. Conductor: High-purity copper strands (solid/compacted per IEC 60228).

  2. Insulation: XLPE for thermal stability (90°C).

  3. Assembly: Non-hygroscopic fillers.

  4. Bedding: PVC layer (ensures circular profile).

  5. Armor: Helical galvanized steel wires (≥350 N/mm² tensile strength).

  6. Outer Sheath: UV-resistant PVC (ST2) or LSZH/FR.

Technical Data (Copper Conductor - YJV32)

Single-Core

Size (mm²) Cond. Ø (mm) XLPE Thick. (mm) Cable Ø (mm) Weight (kg/km)
1.5 1.38 0.7 10.0 143.8
2.5 1.78 0.7 10.4 162.4
... ... ... ... ...
800 34.00 2.6 58.0 13,919.4

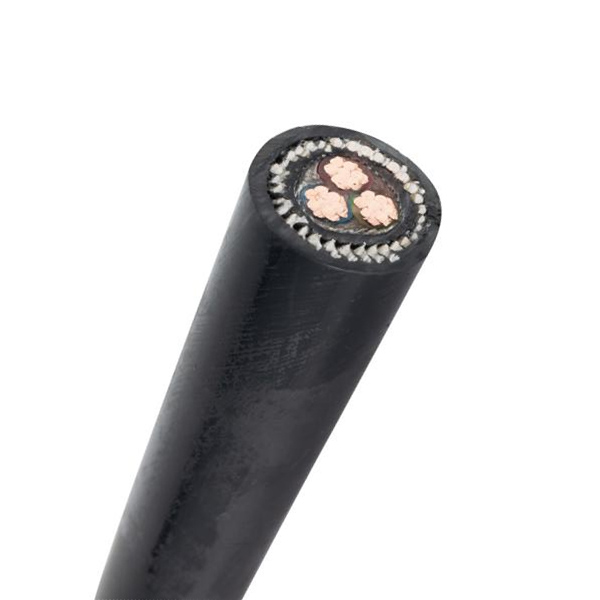

3-Core

Size (mm²) Cond. Ø (mm) XLPE Thick. (mm) Cable Ø (mm) Weight (kg/km)
1.5 1.38 0.7 13.2 312.5
2.5 1.78 0.7 14.0 398.7
4 2.25 0.7 15.0 512.3
... ... ... ... ...
300 23.80 1.8 58.5 14,250.6

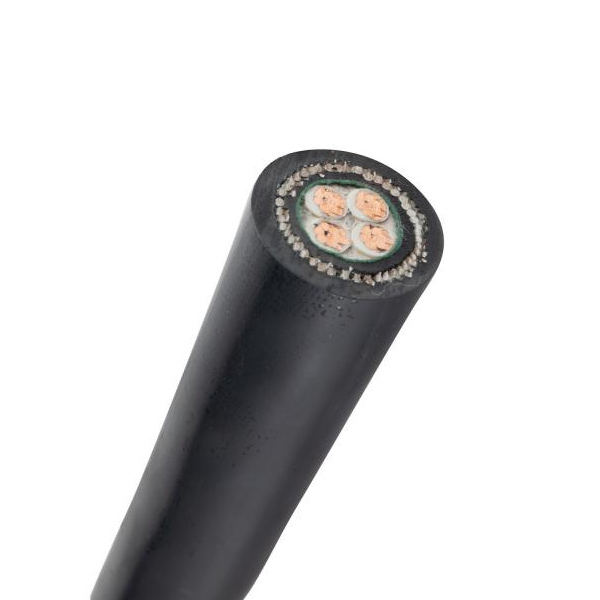

4-Core

Size (mm²) Cond. Ø (mm) XLPE Thick. (mm) Cable Ø (mm) Weight (kg/km)
1.5 1.38 0.7 14.0 387.2
2.5 1.78 0.7 15.2 495.1
... ... ... ... ...
240 21.20 1.7 62.0 16,840.3

3+1-Core (e.g., 25mm² phase + 16mm² neutral)

Phase (mm²) Neutral (mm²) Cable Ø (mm) Weight (kg/km)
1.5 1.5 13.8 338.4
2.5 2.5 14.6 432.9
25 16 25.5 2,890.7
... ... ... ...
185 95 50.0 9,870.2

4+1-Core (e.g., 4x25mm² phase + 16mm² neutral)

Phase (mm²) Neutral (mm²) Cable Ø (mm) Weight (kg/km)
1.5 1.5 14.5 410.3
2.5 2.5 15.8 525.6
25 16 27.0 3,560.1
... ... ... ...
150 70 48.5 11,230.8

Notes:

  • Full tables available in datasheet (sizes 1.5–800mm²).

  • Weights include armor and sheath.

  • Ø = Diameter.

Material Advantages

Feature Benefit
XLPE Insulation 90°C continuous operation, thermal aging resistance.
Steel Wire Armor Crush/rodent protection (IEC 60229 tested).
PVC/LSZH Sheath UV/moisture resistance; LSZH reduces toxic fumes (IEC 61034 compliant).

Applications

  • Underground Grids: Direct burial (NESC compliant).

  • Industrial Plants: Cable trays, petrochemical facilities.

  • Critical Infrastructure: Hospitals, data centers.

  • Renewable Energy: Wind/solar substations.

  • Hazardous Zones: ATEX/IECEx-certified options.

Engineering Benefits

  • Mechanical Strength: Withstands pulling tension (min. bending radius: 12×OD).

  • Environmental Resilience: Operates in wetlands, coastal, and -40°C conditions.

  • Safety Compliance: Flame-retardant options (IEC 60332-3-24).

  • Customization: Anti-termite/rodent sheaths, oil-resistant compounds.

Standards & Certifications

IEC 60502-1 | BS 5467 | AS/NZS 5000.1 | VDE 0276 | GOST R | Custom certifications.

Ordering & Customization

  • Conductor: Copper (YJV32) or Aluminum (YJLV32).

  • Cores: 1, 2, 3, 4, 5, 3+1, 4+1, 3+2.

  • Sheath: PVC, LSZH, FR, UV-resistant, oil-resistant.

  • Packaging: 500m/1000m wooden drums.
