Product Overview
The CJ95/NC represents a premium, compact fire resistant marine cable engineered for the most extreme conditions where circuit integrity during a fire, maximum mechanical strength, and exceptional sheath durability are all critical. Featuring a streamlined construction without a separate inner sheath, it integrates a fire-survival Mica/XLPE insulated core (IEC 60331), a high-strength galvanized steel wire braid armor, and a robust Cross-linked Polyolefin (SHF2) outer sheath. This design delivers the ultimate combination of certified fire safety, superior long-term environmental resistance, and supreme physical protection in a space-efficient package for the most demanding safety-critical circuits.
Key Features & Benefits
-
Certified Fire Resistance (IEC 60331): Guarantees that vital emergency and safety circuits (e.g., emergency generator feeds, fire pump systems, critical alarms) maintain operation for a specified duration under direct flame and impact, which is non-negotiable for life safety.
-
Maximum Mechanical & Thermal Sheath Protection: A high-strength galvanized steel wire braid armor provides ultimate crush and impact resistance. Combined with a Cross-linked Polyolefin (SHF2) outer sheath, it offers unparalleled resistance to high temperatures, deformation, cracking, chemicals, and abrasion.
-
Compact & High-Efficiency Design: The absence of a separate inner sheath creates a more streamlined and material-efficient cable structure, optimizing space and weight for installations where these factors are constrained, without compromising on performance.
-
Fire-Survival Core Technology: The Mica Glass Tape layer over XLPE insulation forms a robust, heat-resistant ceramic barrier, maintaining electrical insulation integrity at extreme temperatures to prevent circuit failure during a fire.
-
Enhanced Fire Safety (LSZH): Rated NC (Halogen Free, Low Smoke, Fire Resistant), it drastically reduces the emission of corrosive/toxic gases and smoke density, enhancing personnel safety and minimizing secondary damage during a fire incident.

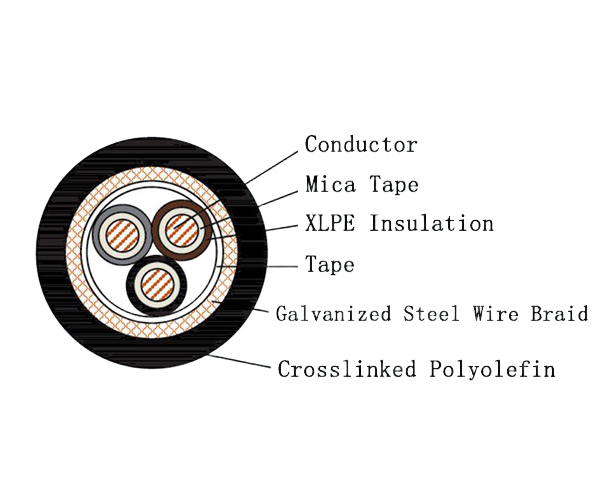

Cable Construction
| Item | Code | Material / Description |
|---|---|---|
| Series Code | C | Marine Power Cable |
| Conductor | / | Tinned or Plain Stranded Annealed Copper Wire (IEC 60228) |
| Insulation | J | Mica Glass Tape + XLPE Insulated |
| Inner Sheath | \ | None (No separate inner sheath) |
| Armour | 9 | Braid of Galvanized Steel Wires |
| Outer Sheath | 5 | Cross-linked Polyolefin (SHF2) - Halogen Free, Low Smoke |
| Flammability Class | NC | Halogen Free, Low Smoke, Fire Resistant |
| Sheath Colour | / | Standard Black (Other colours on request) |
Technical Specifications
| Parameter | Specification |
|---|---|
| Rated Voltage | 0.6/1 kV |
| Maximum Operating Temperature | 90°C |
| Conductor | Plain or Tinned Annealed Copper, Stranded |
| Insulation | Mica Glass Tape + Cross-Linked Polyethylene (XLPE) |
| Armour | Braided Galvanized Steel Wires |
| Outer Sheath | Cross-linked Polyolefin (SHF2) |
| Fire Resistance | IEC 60331 |
| Flame Retardancy | IEC 60332-1 & IEC 60332-3-22 (Category A) |
| Halogen Content | IEC 60754-1 (Halogen Free) |
| Smoke Density | IEC 61034-2 (Low Smoke) |
| Core Range | 1 to 37 cores |
| Cross-Sectional Area | 0.75 mm² to 300 mm² |
Standards & Approvals
Manufactured to the highest international standards for fire safety, marine application, and material performance:
-
IEC 60092-350, 353: Electrical installations in ships – Design.
-
IEC 60228: Conductors of insulated cables.
-
IEC 60092-360: Insulating and sheathing materials.
-
IEC 60331: Tests for fire resistant characteristics.
-
IEC 60332-1 & -3-22: Tests for flame retardancy.
-
IEC 60754-1: Test on gases evolved during combustion (Halogen Free).
-
IEC 61034-2: Measurement of smoke density (Low Smoke).
Typical Applications
-
Marine & Offshore: The most critical emergency circuits on passenger ships, naval vessels, FPSOs, and offshore platforms, particularly in exposed, high-risk, and space-constrained areas (e.g., engine rooms, open decks, escape routes). Essential for emergency generator power, fire pump systems, and platform shutdown controls.
-
Critical Infrastructure & Heavy Industry: Power supply for life-safety and indispensable process systems in extreme environments: nuclear/thermal power plants, petrochemical refineries, LNG facilities, underground mining, and long tunnels where the combined demands of fire survival, maximum mechanical protection, and a durable, heat-resistant sheath must be met in a compact design.
