H01Z2Z2-K TUV-Certified PV Wire | UV/Abrasion Resistant -40°C Solar Cable | Double Insulation 1000V/1800V DC

Product Overview

H01Z2Z2-K TUV-Certified PV Wire delivers extreme weather resilience for photovoltaic systems. Featuring dual-layer electron-beam cross-linked insulation, this cable operates from -45°C to +125°C and withstands UV exposure, abrasion, and harsh climates. Certified to TUV 2PfG 1169/08.2007 PV1-F, it’s engineered for high-reliability connections in utility-scale solar farms and demanding environments.

Key Features

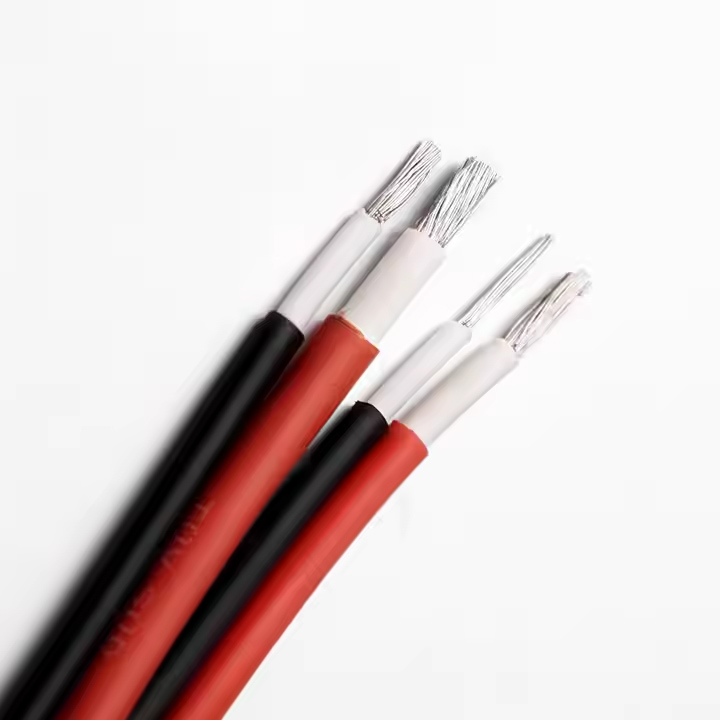

  1. Dual Insulation Technology

    • Conductor: Tinned copper (VDE 0295/IEC 60228 Class 5)

    • Insulation/Sheath: Electron-beam cross-linked polyolefin copolymer

  2. Extreme Environmental Resistance

    • UV/Weather/Abrasion resistant

    • Halogen-free, flame-retardant (IEC 60332-1)

  3. Broad Compatibility

    • Dry/wet indoor/outdoor installations

Technical Specifications

Parameter Specification
Voltage Rating 600/1000V AC, 1000/1800V DC
Temperature Range Conductor: -45°C to +125°C (-40°F to +257°F)
Ambient: -40°C to +90°C (-40°F to +194°F)
Short Circuit Temp 280°C (+536°F)
Bending Radius Fixed: >4×OD, Mobile: >5×OD
Fire/Smoke Compliance IEC 60332-1, IEC 61034, DIN 51900
Standards TUV 2PfG 1169, UNE 211 23, UTE C 32-502

Conductor Technical Data

Size (mm²) Conductor Construction Conductor Ø (mm) Cable Ø (mm) Max. Resistance (Ω/km) Current Capacity (A)
1.5 30/0.25 1.58 4.9 13.3 30
2.5 50/0.25 2.02 5.45 7.98 41
4 56/0.30 2.30 6.1 4.75 55
6 84/0.30 3.42 7.2 3.39 70
10 142/0.30 4.56 9.0 1.95 98
16 228/0.30 5.60 10.2 1.24 132
25 361/0.30 6.95 12.0 0.795 176
35 525/0.30 8.74 13.8 0.565 218
50 720/0.30 9.20 14.8 0.393 280
70 988/0.30 11.00 16.9 0.277 350
95 1349/0.30 12.50 18.7 0.21 410
120 1691/0.30 14.20 20.7 0.164 480

Applications

  • Critical Interconnections: Solar panel-to-connector, inverter links

  • High-Stress Environments: Coastal/desert installations, industrial sites

  • Dynamic Setups: Mobile solar units, floating PV systems

Product Advantages

  1. Dual-Layer Protection

    • Electron-beam cross-linked insulation resists cracking, chemicals, and mechanical stress.

  2. Ultra-Wide Temperature Range

    • Performance integrity from -45°C to +125°C (surpasses standard PV cables).

  3. Certified Safety

    • TUV PV1-F certified with low smoke emission (IEC 61034).

  4. Optimized Current Handling

    • Higher ampacity (e.g., 98A for 10mm²) vs. conventional cables.

Certifications

TUV 2PfG 1169/08.2007 PV1-F | IEC 60332-1 | UNE 211 23 | UTE C 32-502

📩 Customization & Support
Sheath Colors: Standard Black/Red/Blue (custom options available)
