Product Overview
UL 4703 8 AWG PV Wire delivers robust power transmission for photovoltaic systems. Engineered to exceed international standards, this cable features UV-resistant XLPO insulation, tinned copper conductivity, and extreme environmental resilience (-40°C to 90°C). Ideal for utility-scale solar farms and high-current applications, its 8 AWG design minimizes voltage drop over long distances while ensuring 25-year service life.
Key Features & Benefits
-
Superior Conductivity
-

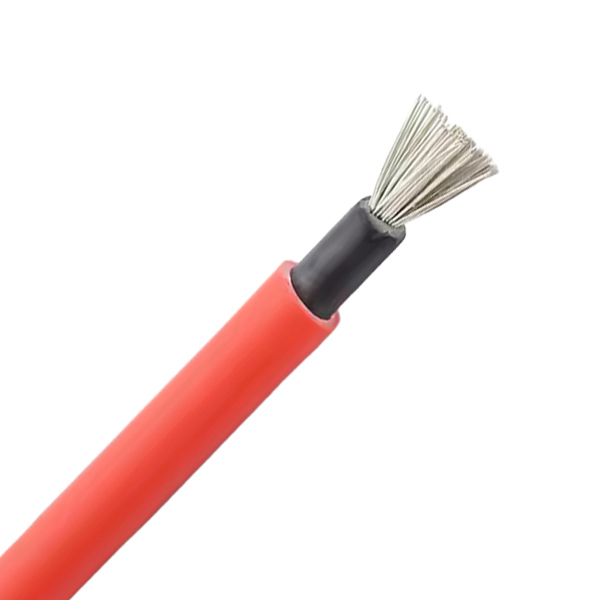

Conductor: Stranded tinned copper (8 AWG, ~3.26 mm diameter) for oxidation resistance and high current capacity (55A).
-
Performance: Low impedance and minimized power loss.
-
-
Extreme Durability
-
Insulation: XLPO (Cross-linked Polyolefin) resists UV, ozone, acids, abrasion, and flames.
-
Temperature Range: -40°C to +90°C (operational).
-
-
Safety & Compliance
-
Voltage: 1500V DC rating.
-
Certifications: UL 4703, IEC 62930, EN 50618, TÜV, PPP 59074.
-
Technical Specifications
| Parameter | Specification |
|---|---|
| Conductor | Stranded tinned copper (8 AWG) |
| Diameter | ~3.26 mm (0.128 inches) |
| Insulation | XLPO |
| Voltage Rating | 1500V DC |
| Temperature | -40°C to +90°C |
| Colors | Black, Red (customizable) |
| Standards | UL 4703, TÜV, IEC 62930, EN 50618 |
Applications
-
Long-Distance Wiring: Solar farms, rooftop arrays.
-
High-Current Paths: Combiner-to-inverter links, battery storage systems.
-
Harsh Environments: Deserts, coastal zones, industrial sites.
Product Advantages
-
Energy Efficiency
-
60% lower voltage drop vs. 12 AWG cables in extended runs.
-
-
Extended Lifespan
-
25-year durability validated per IEC 62930 aging tests.
-
-
Engineering Compliance
-
Meets NEC 690, IEC 62548, and global electrical codes.
-
-
Environmental Resistance
-
Halogen-free, UV-stabilized materials for outdoor reliability.
-
