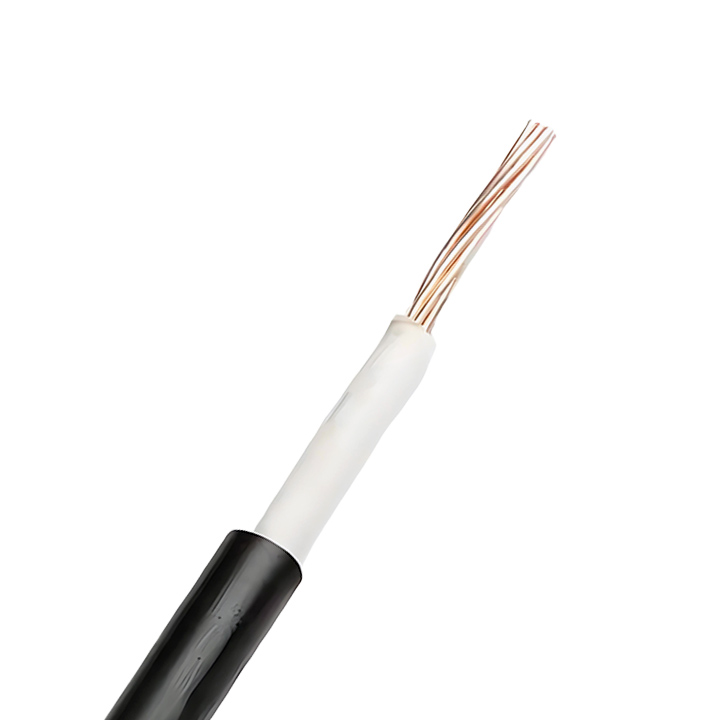

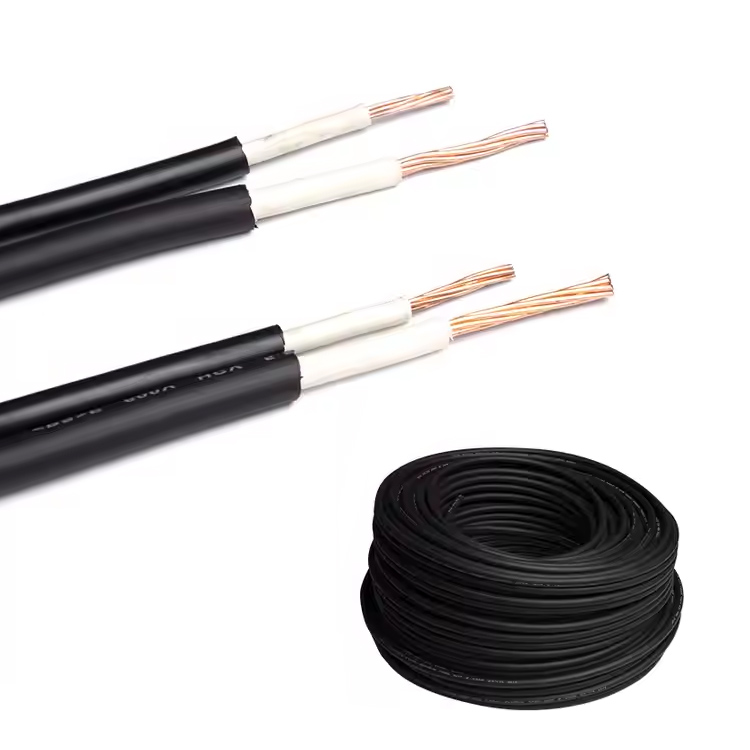

CSA RPvU90 Solar PV Wire | 2000V DC XLPE Insulated Cable | Tinned Copper Conductor | Direct Burial Rated

PV & Solar Energy Cables14
Description

CSA RPvU90 Solar PV Wire | 2000V DC XLPE Insulated Cable | Tinned Copper Conductor | Direct Burial RatedCSA RPvU90 Solar PV Wire | 2000V DC XLPE Insulated Cable | Tinned Copper Conductor | Direct Burial Rated

Product Overview

CSA RPvU90 2000V Solar PV Cable delivers high-voltage power transmission for utility-scale photovoltaic systems. Engineered with XLPE insulation and tinned copper conductors, this cable operates from -40°C to +90°C and exceeds CSA, UL 4703, and RoHS standards. Ideal for direct burial, wet/dry locations, and extreme UV exposure, it ensures 25+ year reliability in solar farms and industrial installations.

Key Features & Benefits

  1. High-Voltage Performance

    • 2000V DC rating for utility-scale solar arrays and long-distance power transmission.

  2. Robust Construction

    • Conductor: Stranded bare/tinned copper (CSA C22.2 No. 38 compliant).

    • Insulation: XLPE (cross-linked polyethylene) for UV, abrasion, and moisture resistance.

  3. Environmental Resilience

    • Direct burial rated (-40°C to +90°C), sunlight resistant, and RoHS compliant.

Technical Specifications

Parameter Specification
Standards CSA RPvU90, UL 4703, UL 44 (RHW-2), UL 854 (USE-2)
Voltage Rating 600V/1000V/2000V DC
Temperature Range -40°C to +90°C (operational)
Insulation Material XLPE (Sunlight-Resistant)
Certifications RoHS, UL
Installation Exposed/concealed wiring, direct burial, wet/dry locations

Conductor Technical Data (2000V Rating)

AWG/kcmil Cond. Ø (mm) Strands Insul. Thick. (mm) Cable Ø (mm) Resistance (Ω/km) Weight (kg/km)
14 1.83 7 1.90 5.6 8.61 53
12 2.16 7 1.90 6.0 5.43 66
10 2.72 7 1.90 6.5 3.41 88
8 3.40 7 2.15 7.7 2.14 130
6 4.29 7 2.15 8.6 1.35 183
4 5.41 7 2.15 9.7 0.848 265
2 6.81 7 2.15 11.1 0.534 391
1/0 8.53 18 2.66 13.9 0.335 617
4/0 12.07 18 2.66 17.4 0.167 1140
300 14.48 35 3.04 20.6 0.118 1608
500 18.69 35 3.04 24.8 0.0709 2663
1000 26.92 58 3.43 33.8 0.0345 5027

Applications

  • High-Voltage Solar Farms: Combiner-to-inverter links, substation connections.

  • Direct Burial Projects: Underground PV arrays, agricultural solar installations.

  • Industrial Environments: Chemical plants, coastal zones, and desert solar fields.

Product Advantages

  1. Extended Lifespan

    • XLPE insulation resists thermal degradation (tested to 90°C continuous).

  2. Energy Efficiency

    • Low resistance (e.g., 0.0345 Ω/km for 1000 kcmil) minimizes voltage drop.

  3. Safety Compliance

    • Flame-retardant (UL 44 RHW-2), sunlight resistant, and RoHS certified.

  4. Mechanical Durability

    • Withstands burial abrasion, UV radiation, and temperature extremes.

Certifications

CSA C22.2 No. 271 | UL 4703 | UL 44 (RHW-2) | UL 854 (USE-2) | RoHS

📩 Customization & Ordering
Conductor Options: Bare copper or tinned (corrosion resistance)
Packaging: 500m/1000m drums (cut lengths available)
