0.6/1kV XGB Green CU/XLPE/LSZH Electric Power Cable – Halogen-Free (IEC 60502-1, BS 5467)

Low Voltage Power Cables9
Description

0.6/1kV XGB Green CU/XLPE/LSZH Electric Power Cable – Halogen-Free (IEC 60502-1, BS 5467)-Picture10.6/1kV XGB Green CU/XLPE/LSZH Electric Power Cable – Halogen-Free (IEC 60502-1, BS 5467)-Picture1

0.6/1kV Green LSZH Power Cable - Halogen-Free CU/XLPE Fixed Installation Cable (IEC 60502-1, BS 5467)

Product Overview

The XGB Green LSZH Power Cable is engineered for safe, reliable 0.6/1kV low-voltage electrical distribution in domestic, commercial, and industrial fixed installations. Featuring halogen-free LSZH (Low Smoke Zero Halogen) sheathing and XLPE insulation, it prioritizes fire safety, environmental resilience, and compliance with international standards (IEC 60502-1, BS 5467). Ideal for indoor/outdoor use and protected underground applications.

Construction & Materials

Layer Material & Specification Key Properties
1. Conductor Plain annealed copper (Class 1 or 2 per IEC 60228) High conductivity, corrosion resistance
2. Insulation Cross-Linked Polyethylene (XLPE) Thermal stability (90°C), electrical integrity
3. Sheath Single-layer FR-LSZH (Green) Halogen-free, low smoke toxicity, UV/chemical resistance

Color Coding

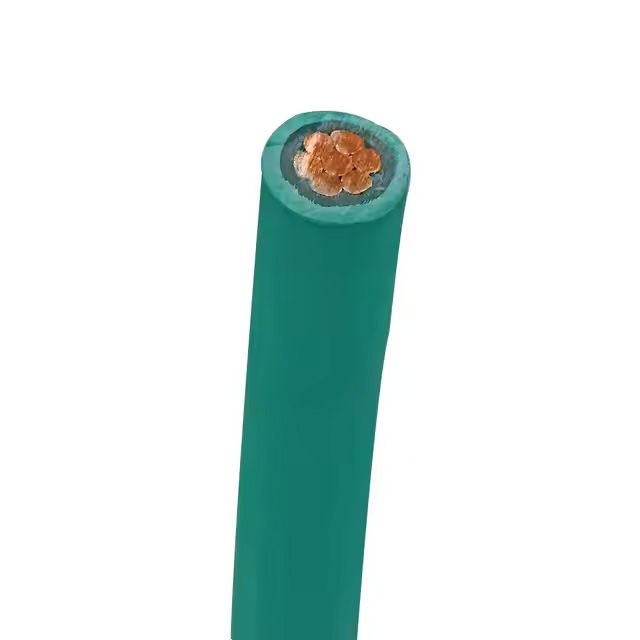

  • 1 Core: White

  • 3 Cores: Brown (L1), Blue (N), Yellow/Green (PE)

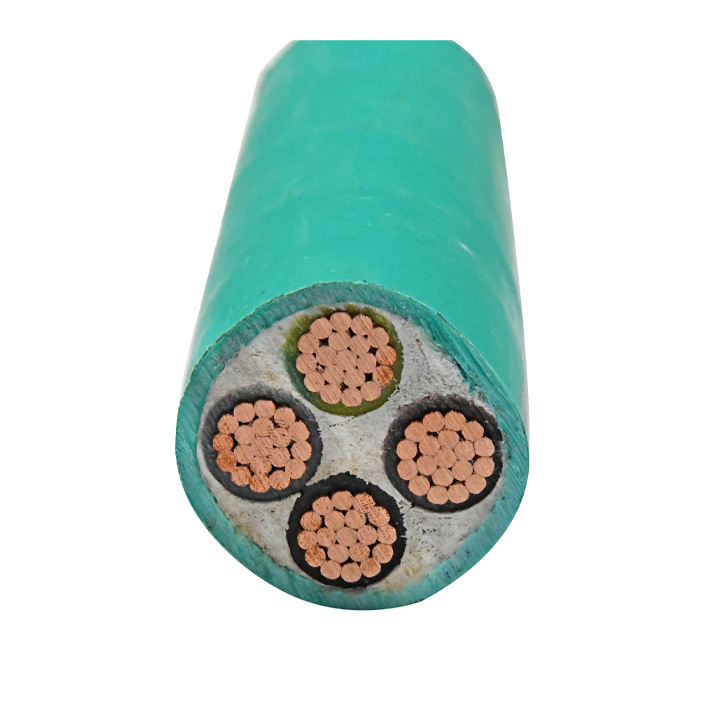

  • 4 Cores: Brown (L1), Black (L2), Grey (L3), Yellow/Green (PE)

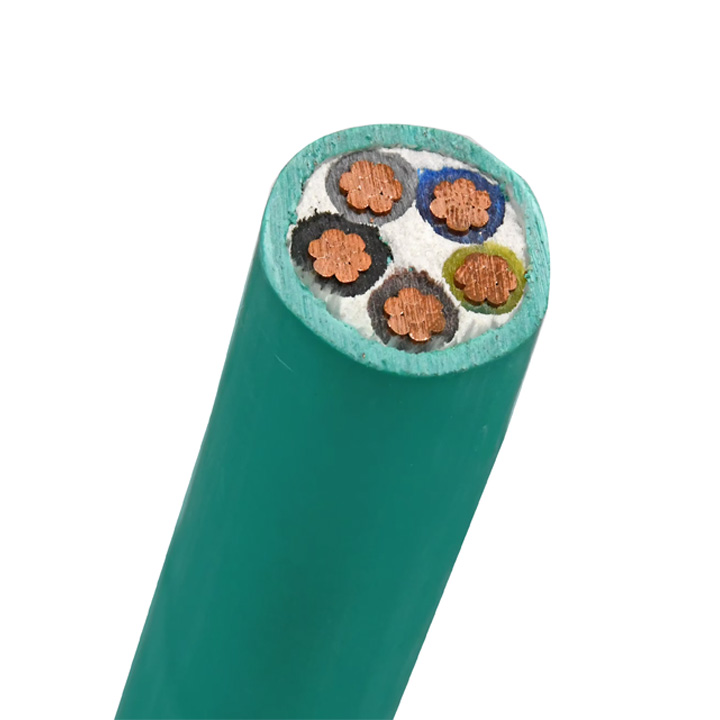

  • 5 Cores: Brown (L1), Black (L2), Grey (L3), Blue (N), Yellow/Green (PE)

Key Technical Specifications

Parameter Specification Compliance Standard
Rated Voltage 0.6/1 kV IEC 60502-1
Max. Conductor Temp. 90°C (194°F) in operation IEC 60502-1
Conductor Class 1 (Solid) or Class 2 (Stranded) Copper IEC 60228
Insulation XLPE IEC 60502-1
Sheath Dual-layer FR-LSZH (Green) BS 5467
Fire Performance Flame Retardant, Low Smoke, Zero Halogen IEC 60754, IEC 61034
Environmental Rating IP67 (when terminated) IEC 60529

Applications

Designed for fixed electrical installations in:

  • Industrial Plants: Machinery wiring, control panels, motor circuits.

  • Commercial Buildings: Lighting, HVAC systems, sub-distribution boards.

  • Residential Complexes: In-wall wiring, underground supply to buildings.

  • Infrastructure: Tunnels, metro stations, hospitals (critical for fire safety).

  • Outdoor/Underground Use:

    • Direct burial (in well-draining conduits).

    • Exposed installations (UV/weather-resistant sheath).

Engineering Selection Guide

  1. Safety-Critical Sites: Mandatory in confined/public spaces (hospitals, schools) due to LSZH’s low toxicity/smoke emission during fire.

  2. Corrosive Environments: Resists oils, chemicals, and moisture; suitable for industrial zones.

  3. Underground Installation: Use protective conduits in waterlogged soils; LSZH resists hydrolysis.

  4. Thermal Management: XLPE supports higher current ratings vs. PVC; verify derating for ambient > 40°C.

  5. Conductor Class:

    • Class 1 (Solid): Cost-effective for static runs.

    • Class 2 (Stranded): Flexibility for complex routing.

Compliance & Certifications

  • International Standards: IEC 60502-1, BS 5467.

  • Fire Safety: Passes IEC 61034 (smoke density) & IEC 60754-1/2 (halogen acid gas).

  • Environmental: RoHS-compliant, lead/Cd-free.
