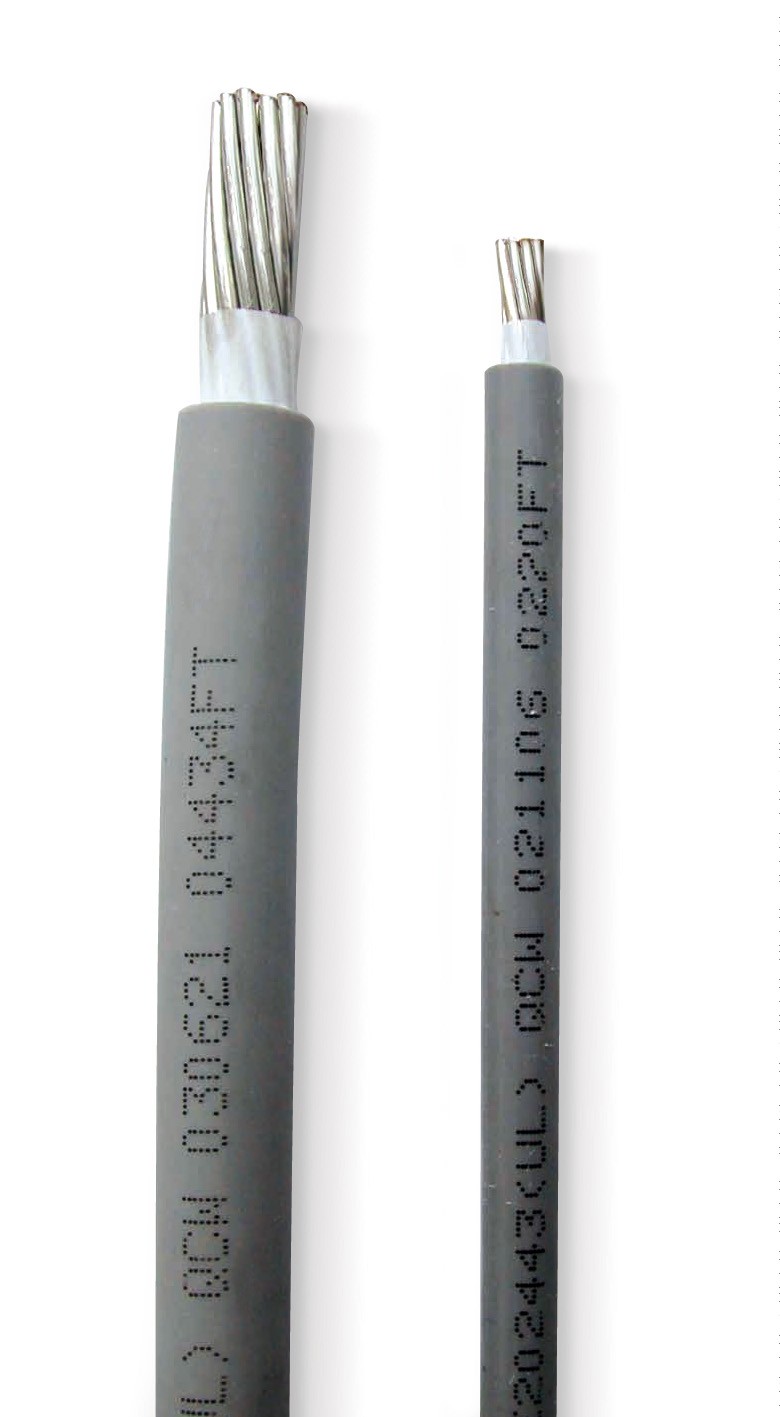

XHHW-2 Flame-Retardant Polyolefin Insulated Power Cable
Model and Name
| Model | Name |
|---|---|
| XHHW-2 | Flame-Retardant Polyolefin Insulated Power Cable |
Main Applications
The insulation material of this product is XLPE (cross-linked polyethylene), which is produced by physically or chemically cross-linking PE material, transforming the polymer molecular structure from linear to网状, known as "superplastic material" in engineering. It is mainly used for manufacturing power cords for equipment, offering excellent heat resistance, compression resistance, and environmental stress cracking resistance. Additionally, this product features excellent flame-retardant and low-smoke, halogen-free properties.
Standards
- UL 44
Structural Specifications and Dimensions (mm)
| Nominal Cross-Section (AWG) | Conductor Structure (Strands/Nominal Diameter) | Insulation Thickness | Maximum Outer Diameter |
|---|---|---|---|
| 14 | 7/0.62 | 0.76 | 3.56 |
| 12 | 7/0.77 | 0.76 | 3.96 |
| 10 | 7/0.98 | 0.76 | 4.56 |
| 8 | 7/1.23 | 1.14 | 6.20 |
| 6 | 7/1.56 | 1.14 | 7.10 |
| 4 | 7/1.96 | 1.14 | 8.30 |
| 2 | 7/2.47 | 1.14 | 9.60 |
| 1/0 | 19/1.89 | 1.40 | 12.38 |
| 2/0 | 19/2.12 | 1.40 | 13.18 |
| 4/0 | 19/2.68 | 1.40 | 16.18 |
| 350Kcmil | 37/2.47 | 1.65 | 20.72 |
| 500Kcmil | 37/2.95 | 1.65 | 23.72 |
| 750Kcmil | 61/2.82 | 2.03 | 29.06 |
Note: Our company can produce any specifications according to customer requirements.
Delivery Method
Cables are delivered in coils. Custom production and delivery are also available based on customer requirements.
