Product Description

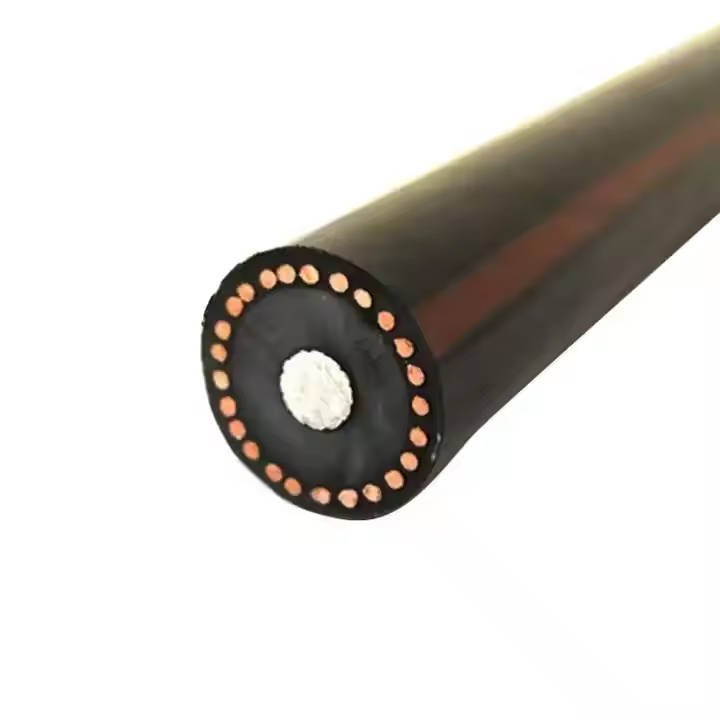

15kV Single Core 2 AWG Aluminium Conductor XLPE Insulation URD Cable (For South America)
Key Features
- Voltage Rating: 15kV Underground Primary Distribution
- Conductor: 2 AWG Solid/Stranded Aluminium (ASTM B230/B232 Compliant)
- Insulation: TR-XLPE (Thermoset Cross-Linked Polyethylene)
- Shielding: Extruded Semiconducting Layer + Concentric Neutral (16×#14 AWG Bare Copper)
- Jacket: UV-Resistant LLDPE with Safety Markings
- Standards: AEIC CS8, ICEA S-94-649, UL-1072
Applications
- Underground power distribution (direct burial or conduit)
- Wet/dry locations (NEMA 3R compliant)
Operating Conditions
- Max Voltage: 15,000V
- Temperature Range: -40°C to +90°C (Normal Operation)

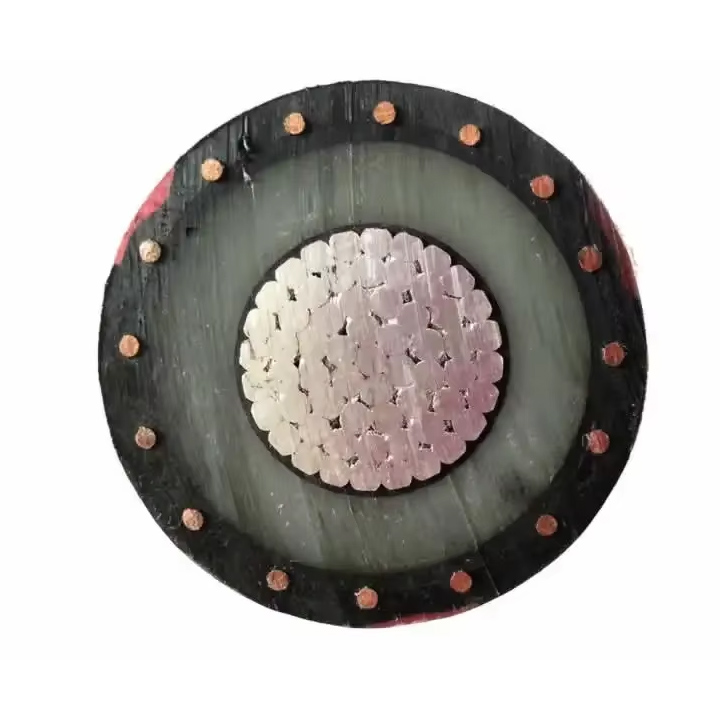

Construction Details
- Conductor
- Material: Soft-drawn aluminium (ASTM B230/B232)
- Options: Solid or compressed concentric strand
- Insulation System
- Primary Insulation: TR-XLPE (220 mils)
- Shield: Extruded semiconducting layer + concentric neutral (16×#14 AWG bare copper)
- Outer Protection
- Jacket Material: LLDPE (Linear Low-Density Polyethylene)
- Markings:
- 3 red stripes
- NESC lightning bolt symbol
- Sequential footage indicators
Technical Specifications
| Conductor | Insul. Thick (mils) | Neutral Config. | OD (inches) | Weight (lbs/kft) |
|---|---|---|---|---|
| 2 AWG SOL | 220 | 16×#14 | 1.050 | 723 |
| 2 AWG STR | 220 | 16×#14 | 1.080 | 742 |
| 1/0 AWG STR | 220 | 16×#12 | 1.190 | 1039 |
| 4/0 AWG STR | 220 | 16×#9 | 1.410 | 1803 |
Full table available in datasheet
Performance Ratings
- Temperature Limits:
- Normal Operation: 90°C
- Overload: 130°C (max 8 hrs/day)
- Short-Circuit: 250°C (1 sec max)
- Water Resistance: ICEA T-34-664 compliant
Compliance & Certifications
- AEIC CS8 (5-46kV Extruded Dielectric Cables)
- ICEA S-94-649 (Concentric Neutral Cables)
- UL 1072 (Medium Voltage Power Cables)
Packaging
- Standard: 5,000 ft wooden reels
- Custom lengths available
Why Choose This Cable?
- Durability: LLDPE jacket resists abrasion/UV degradation
- Safety: Fully shielded design with fault current protection
- Flexibility: Stranded conductor options for easier pulling.
