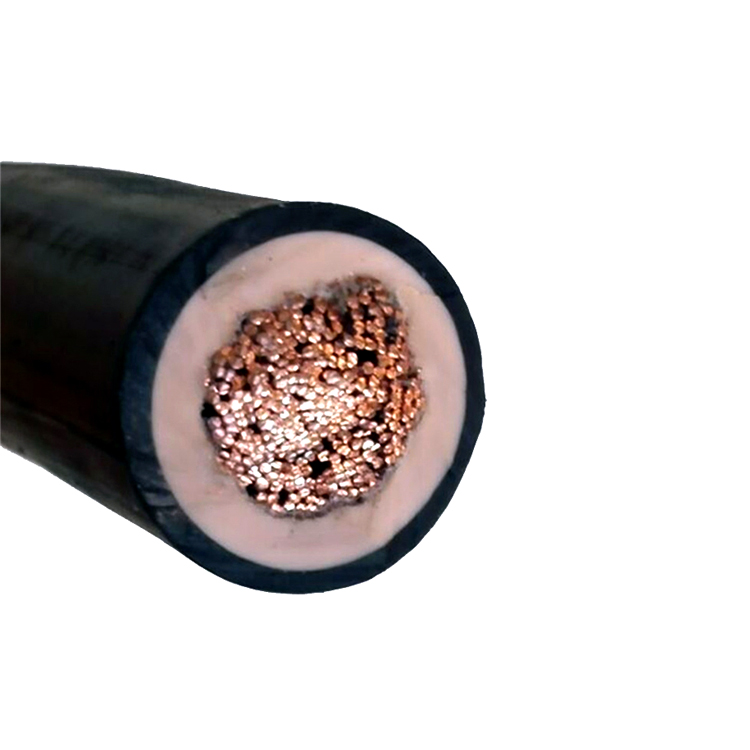

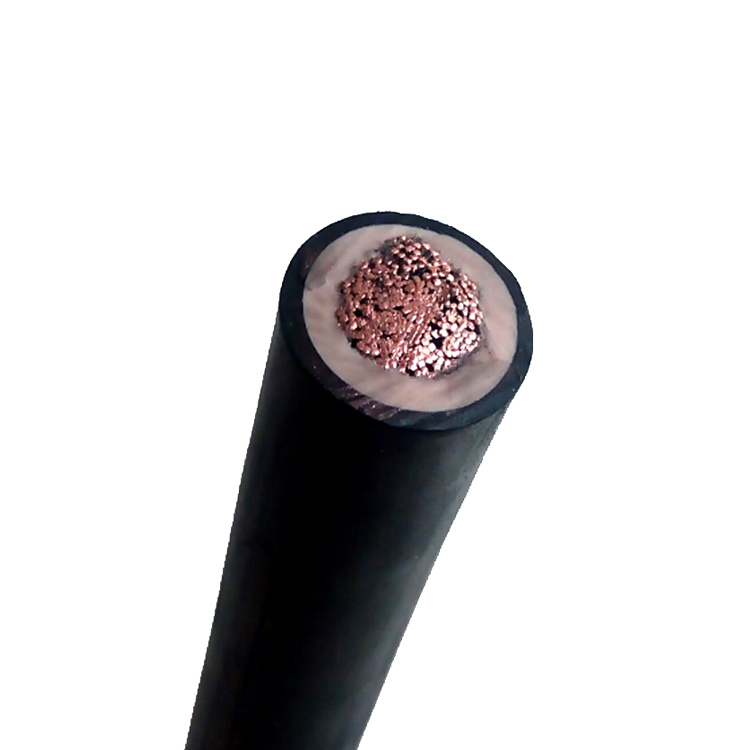

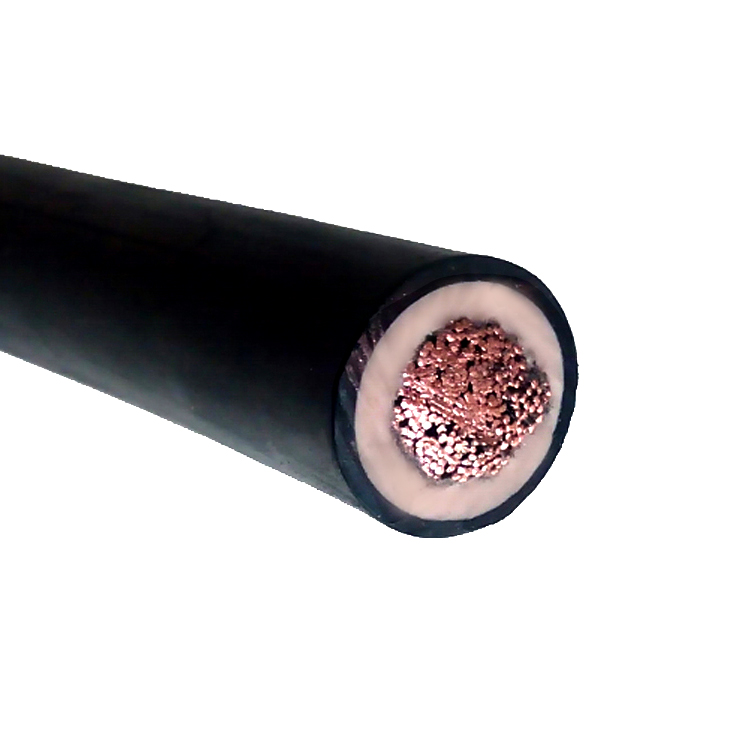

Product Description: 2kV HDFPC-DLO, RHH/RHW-2 & RW90 Cable
Product Overview
The 2kV HDFPC-DLO, RHH/RHW-2 & RW90 cable is a high-voltage, heavy-duty flexible power cable designed for a wide range of industrial and commercial applications. Meeting UL and CSA standards, this cable offers excellent electrical and mechanical performance, ensuring reliable operation in harsh environments. With its high voltage rating, superior electrical properties, and extensive certifications, it is an ideal choice for industrial equipment, transportation, and power transmission applications. The dual-layer EPDM/CPE composite insulation and CPE jacket further ensure long-term reliability and durability in demanding conditions.
Key Features
- Rated Voltage: 2000V
- Operating Temperature: 90°C (Dry or Wet)
- Conductor Material: Tinned or Bare Copper Stranded, compliant with ASTM B33 and B172 standards
- Insulation Material: Dual-layer EPDM/CPE (Ethylene Propylene Diene Monomer/Chlorinated Polyethylene) composite insulation
- Jacket Material: CPE (Chlorinated Polyethylene)
- Flame Resistance: FT4 rated (for 1/0 AWG and larger)
- Certifications: UL 2806, UL 44, CSA C22.2 No. 38, MSHA P-07-KA10013
Applications
- Industrial Equipment: Drilling rigs, mining equipment, wind turbines, etc.
- Transportation: Railroad and transit car wiring
- Power Transmission: Flexible motor leads, cable tray (CT) use
- Other: Suitable for wet and dry environments, conduits, ducts, troughs, and cable trays
Technical Specifications
- Conductor Construction: Flexible stranded copper conductors compliant with ASTM B3, B33, and B172 standards
- Insulation Thickness: Dual-layer EPDM/CPE composite insulation, providing excellent electrical and mechanical protection
- Jacket Thickness: CPE jacket, enhancing abrasion and chemical resistance
- Bend Radius: Varies by cable size, ranging from 1.32 inches to 8.80 inches
- DC Resistance: At 20°C, DC resistance ranges from 0.0102 Ω/km to 0.6540 Ω/km
- Capacitance: Cable capacitance ranges from 69.13 pF/ft to 265.42 pF/ft
Electrical Performance
- Ampacity:
- In Conduit: Based on NEC® Table 310.15(B)(16), ampacity ranges from 50A to 570A
- In Free Air: Based on NEC® Table 310.15(B)(17), ampacity ranges from 55A to 648A
Physical Data
- Overall Diameter: Varies by cable size, ranging from 0.329 inches to 1.640 inches
- Weight: Varies by cable size, ranging from 92 lbs/Mft to 4154 lbs/Mft
Certifications and Standards
- UL Certifications: UL 2806 (HDFPC-DLO), UL 44 (RHH/RHW-2)
- CSA Certification: CSA C22.2 No. 38 (RW90)
- Other Certifications: MSHA P-07-KA10013, compliant with G.E. Spec# 104W7006 Rev. F and AAR RP-585 standards
