Fire Alarm Cable
Application
Fire alarm cable is used for wiring burglar & security alarms, public address systems, intercoms, telephone stations, speakers, instrumentation, control systems, and other low-voltage circuits that are power-limited.
Standards
- Complies with customer-specific technical specifications.

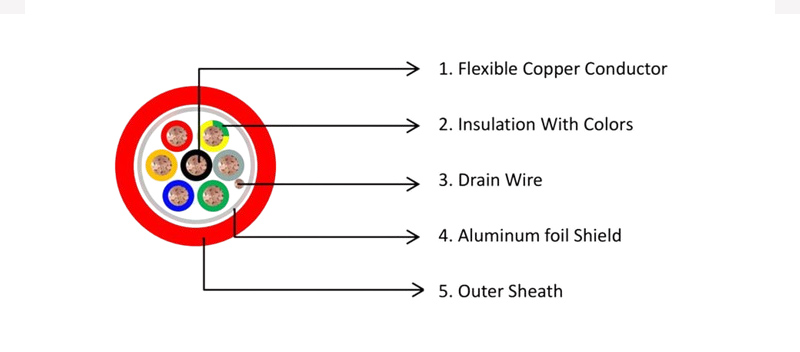

Construction
- Rated Voltage: 600V or below.
- Conductor: Copper (Class 1, Class 2, or Class 5).
- Insulation: Flame-retardant PVC.
- Core: 2C to 20C.
- Shield (Optional): Aluminum foil with drain wire.
- Sheath: Flame-retardant PVC.
- Nominal Cross-Section: 0.5 to 400 mm².
Features
- Fire Resistance: Ensures reliable operation during fire emergencies.
- Low Smoke and Toxic Gas Emissions: Minimizes harm to people and equipment.
- Durability and Mechanical Protection: Withstands harsh environmental conditions.
- Flexible Installation: Easy to install in various configurations.
Product Data Sheet
| Conductor Size | Insulation | Jacket | ||
|---|---|---|---|---|
| Nom. Thick (mm) | Nom. Diam. (mm) | Nom. Thick (mm) | Nom. Diam. (mm) | |
| 2 × 1.0 | 0.6 | 2.4 | 1.0 | 6.8 |
| 2 × 1.5 | 0.7 | 2.8 | 0.8 | 7.2 |
| 2 × 2.5 | 0.8 | 3.4 | 1.0 | 9.0 |
| 4 × 0.5 | 0.4 | 1.6 | 1.2 | 6.2 |
| 4 × 1.0 | 0.6 | 2.4 | 0.8 | 7.4 |
| 4 × 1.5 | 0.7 | 2.8 | 0.8 | 8.3 |
| 4 × 2.5 | 0.8 | 3.4 | 1.1 | 10.3 |
