Instrumentation Cable – Low Interference, Shielded, for Control Systems and Signal Transmission

Control Cables37

Instrumentation Cable – Low Interference, Shielded, for Control Systems and Signal Transmission

Application

The cable is used for reducing interference in computers, control systems, transmission of analogue signals, and other measuring devices.

Standards

  • BS5308
  • IEC60502

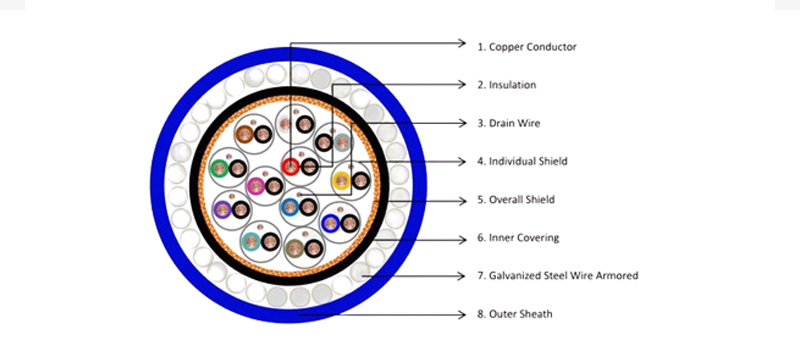

Construction

  • Conductor: Copper conductor.
  • Optional: Mica tape.
  • Insulation: XLPE or PVC.
  • Screening: Individual (optional) and overall screen.
  • Armor: Steel wire armor (if required).
  • Outer Sheath: Protective outer sheath.

Features

  • Voltage Rating: 600/1000V.
  • Optional Properties: Flame retardant, low smoke halogen-free (LSHF), and oil resistance are available upon request.

Product Data Sheet

No. of Pairs Conductor Size (mm²) Approx. Conductor Dia. (mm) Nominal Insulation Thickness (mm) Nominal Inner Sheath Thickness (mm) Dia. of Steel Wire Armor (mm) Nominal Outer Sheath Thickness (mm) Approx. Overall Dia. (mm) Approx. Weight (kg/km)
1 1.5 1.56 0.7 1 0.9 1.4 11 260
1 2.5 2.01 0.7 1 0.9 1.4 11.6 300
2 1.5 1.56 0.7 1 1.2 1.5 15.6 542
2 2.5 2.01 0.7 1 1.2 1.6 17.22 647
4 1.5 1.56 0.7 1 1.2 1.6 17.2 717
4 2.5 2.01 0.7 1 1.6 1.6 19.63 1008
6 1.5 1.56 0.7 1 1.6 1.7 20.8 1088
6 2.5 2.01 0.7 1 1.6 1.7 22.83 1314
8 1.5 1.56 0.7 1 1.6 1.7 21.47 1240
8 2.5 2.01 0.7 1 1.6 1.8 23.79 1506
10 1.5 1.56 0.7 1 1.6 1.8 25.44 1584
10 2.5 2.01 0.7 1 1.6 1.9 28.39 1953
12 1.5 1.56 0.7 1 1.6 1.9 26.32 1722
12 2.5 2.01 0.7 1 1.6 2 29.41 2134
14 1.5 1.56 0.7 1 1.6 1.9 27.5 1906
14 2.5 2.01 0.7 1 2 2 31.6 2602
16 1.5 1.56 0.7 1 1.6 1.9 28.82 2112
16 2.5 2.01 0.7 1 2 2.1 33.32 2901
20 1.5 1.56 0.7 1.2 2 2.1 32.33 2756
20 2.5 2.01 0.7 1.2 2 2.2 36.18 3429
24 1.5 1.56 0.7 1.2 2 2.2 36.22 3310
24 2.5 2.01 0.7 1.2 2 2.3 40.63 4162
30 1.5 1.56 0.7 1.2 2 2.3 38.33 3857
30 2.5 2.01 0.7 1.2 2.5 2.4 44.04 5243
