Application
Elevator cables are suitable for the transmission of mechanical chains, cable tracks, trolleys, elevators, cranes, telescopic machinery, and other mobile equipment. They are used for power transmission, control, lighting, and communication lines at a rated voltage of 450/750V or below.
Standards
- EN 50124
- EN 60228

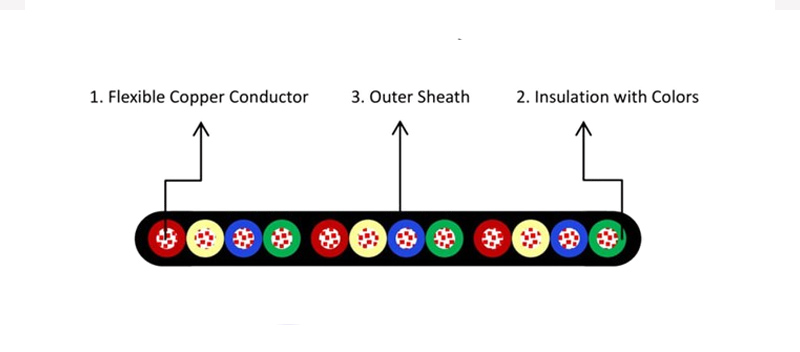

Construction
- Conductor: Copper.
- Insulation: PVC.
- Outer Sheath: PVC.
Features
- Voltage Rating: 300/500V.
- Temperature Rating: -20℃ to +70℃.
- Minimum Bending Radius: 8 × overall diameter.
Product Data Sheet
| Core Number | Size (mm²) | Conductor Dia. (mm) | Insulation Thickness (mm) | Outer Sheath Thickness (mm) | Overall Dimension (mm) | Approx. Cable Weight (kg/km) |
|---|---|---|---|---|---|---|
| 4 | 1.0 | 1.34 | 0.6 | 1.5 | 13.16 | 108.7 |
| 4 | 1.5 | 1.60 | 0.7 | 1.5 | 15.00 | 146.7 |
| 4 | 2.5 | 2.10 | 0.8 | 1.8 | 18.40 | 215.1 |
| 4 | 4.0 | 3.23 | 0.8 | 1.8 | 25.32 | 351.2 |
| 8 | 1.0 | 1.34 | 0.6 | 1.5 | 24.32 | 210.3 |
| 8 | 1.5 | 1.60 | 0.7 | 1.5 | 28.00 | 286.3 |
| 8 | 2.5 | 2.10 | 0.8 | 1.8 | 34.70 | 422.6 |
| 8 | 4.0 | 3.23 | 0.8 | 1.8 | 49.34 | 705.2 |
| 12 | 1.0 | 1.34 | 0.6 | 1.5 | 35.48 | 304.2 |
| 12 | 1.5 | 1.60 | 0.7 | 1.5 | 41.00 | 415.8 |
| 12 | 2.5 | 2.10 | 0.8 | 1.8 | 51.00 | 616.2 |
| 14 | 1.0 | 1.34 | 0.6 | 1.5 | 31.40 | 299.7 |
| 14 | 1.5 | 1.60 | 0.7 | 1.5 | 36.00 | 409.2 |
| 14 | 2.5 | 2.10 | 0.8 | 1.8 | 45.10 | 613.1 |
| 16 | 1.0 | 1.34 | 0.6 | 1.5 | 36.48 | 347.3 |
| 16 | 1.5 | 1.60 | 0.7 | 1.5 | 42.00 | 475.2 |
| 16 | 2.5 | 2.10 | 0.8 | 1.8 | 52.50 | 710.5 |
| 18 | 1.0 | 1.34 | 0.6 | 1.5 | 41.56 | 394.9 |
| 18 | 1.5 | 1.60 | 0.7 | 1.5 | 48.00 | 541.3 |
| 18 | 2.5 | 2.10 | 0.8 | 1.8 | 59.90 | 807.8 |
| 20 | 1.0 | 1.34 | 0.6 | 1.5 | 57.80 | 521.0 |
| 20 | 1.5 | 1.60 | 0.7 | 1.5 | 67.00 | 713.4 |
| 20 | 2.5 | 2.10 | 0.8 | 1.8 | 83.60 | 1058.4 |
| 24 | 1.0 | 1.34 | 0.6 | 1.5 | 68.96 | 617.1 |
| 24 | 1.5 | 1.60 | 0.7 | 1.5 | 80.00 | 845.0 |
| 24 | 2.5 | 2.10 | 0.8 | 1.8 | 99.90 | 1252.8 |
