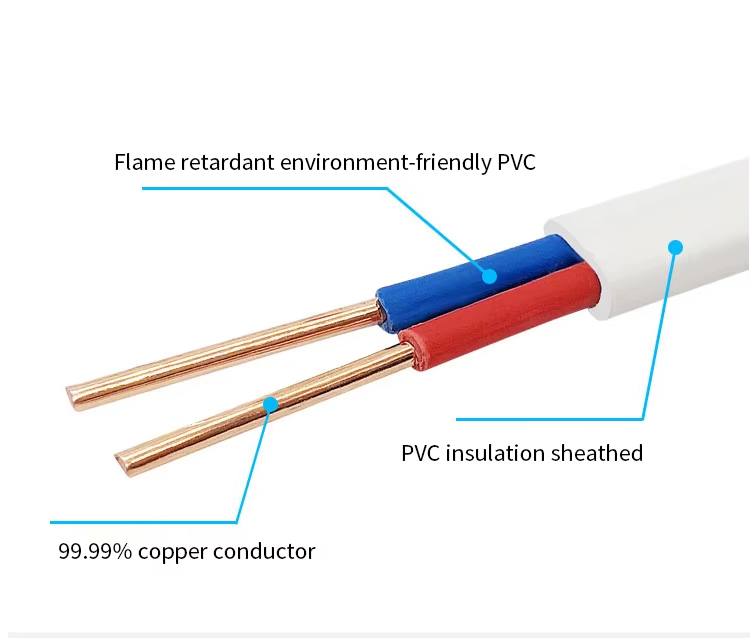

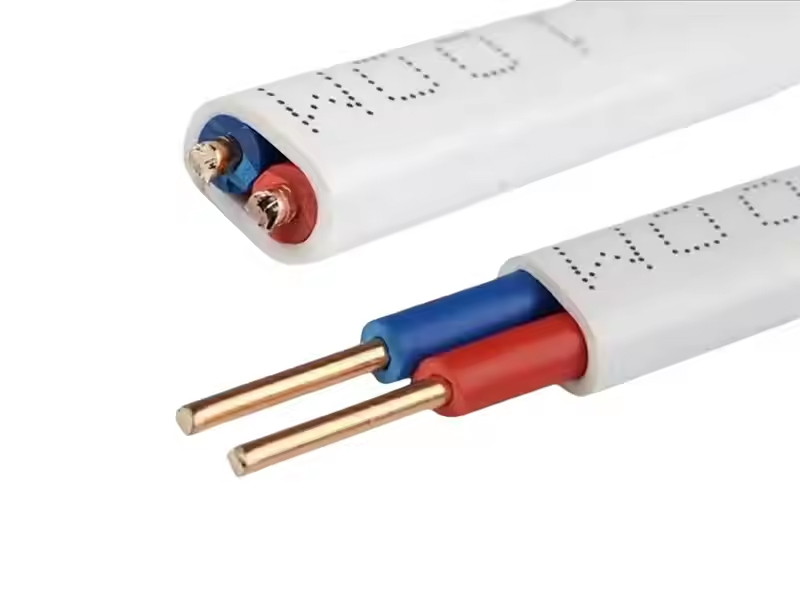

Application
- For domestic and industrial wiring.
- Suitable for surface wiring where there is little risk of mechanical damage.
Installation
- Open air, or in conduits, or trunking.
Technical Data
|
Cross-sectional area(mm) |
Number/diameter of core(mm) | Maximum outer diameter(mm) | Reference weight(kg/km) |
Conductor resistance at 20℃≤(Ω/km) |
|||
| alumimum | copper | copper | alumimum | alumimum | copper | ||
| 2*1.5 | 2*1/1.38 | - | 5.4*8.4 | 65.9 | 12.1 | - | - |
|
2*2.5 |
2*1/1.78 | 6.2*9.8 | 6.0*9.8 | 95.7 | 64.9 | 11.8 | 7.41 |
|
2*4 |
2*1/2.25 | 6.8*11.0 | 7.2*11.5 | 146.0 | 80.7 | 7.39 | 4.61 |
| etc. | |||||||
