UL AWM 3071 Certified High Temp Silicone Fireproof Wire | 600V Single Conductor | -100°C to +200°C

Silicone Rubber Insulated Cables16
Description

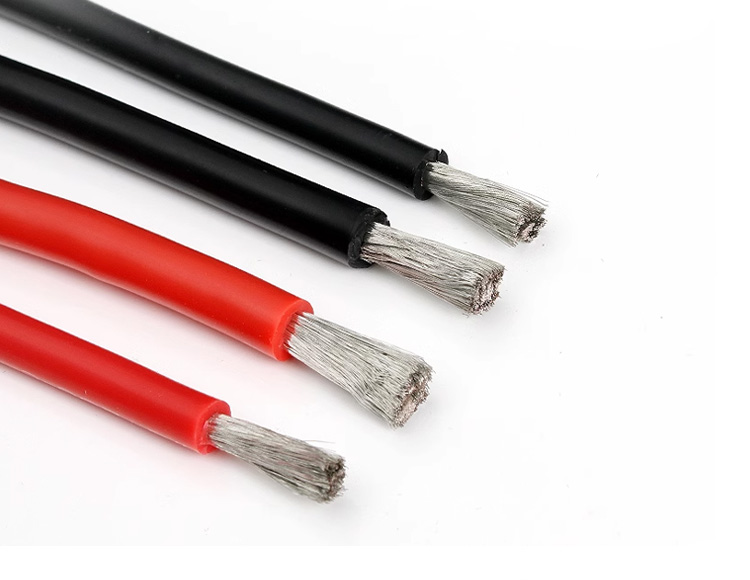

UL AWM 3071 Certified High Temp Silicone Fireproof Wire | 600V Single Conductor | -100°C to +200°C-Picture1

Product Overview

The UL AWM 3071 High Temperature Silicone Fire Proof Wire combines advanced glass fiber reinforcement with premium silicone rubber insulation for extreme thermal and fire resistance. Engineered for continuous operation from -100°C to +200°C, this single-conductor wire delivers exceptional electrical insulation, mechanical durability, and flame retardancy in critical applications. UL-recognized for lighting, appliances, and high-heat environments.

Key Features & Certifications

UL AWM 3071 Recognized
Unmatched Temperature Range: -100°C to +200°C
Fire-Resistant Construction: Glass fiber reinforced silicone
Multiple Conductor Options: Tinned/Silver/Nickel-plated Copper
600V Rating: Reliable performance in high-voltage scenarios
Halogen-Free: Low smoke/toxicity during combustion

Technical Specifications

Parameter Specification
Standard UL AWM 3071
Voltage Rating 600V
Temperature Range -100°C to +200°C (Continuous)
Conductor Options Tinned / Silver / Nickel-Plated Copper
Insulation Glass Fiber-Reinforced Silicone Rubber
Wire Gauge (AWG) 32 AWG to 2 AWG
Colors 11 Standard Colors + Custom
Certifications UL, RoHS, IEC 60245

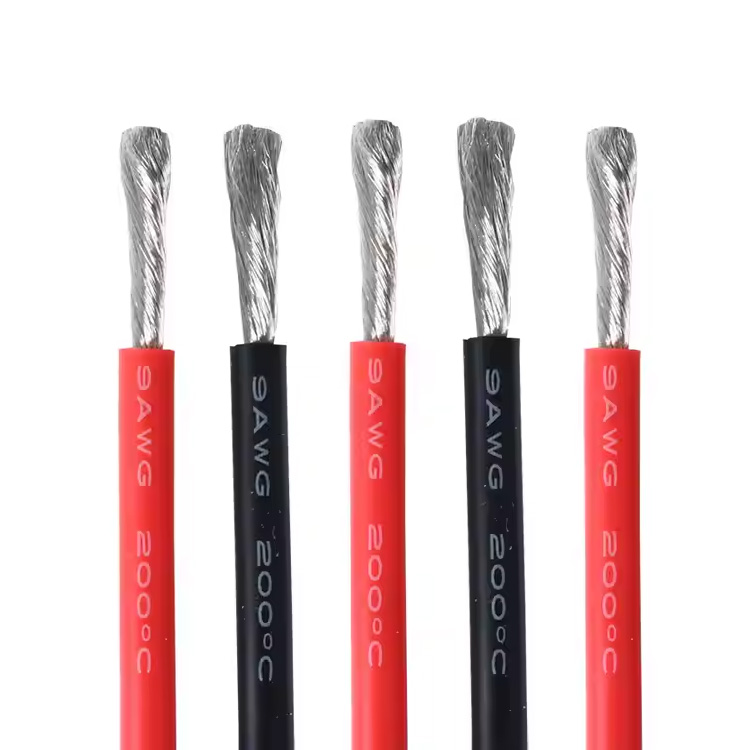

UL AWM 3071 Certified High Temp Silicone Fireproof Wire | 600V Single Conductor | -100°C to +200°C-Picture2

Electrical & Dimensional Specifications (Partial)

AWG Conductor Structure Insul. Thickness (mm) O.D. (mm) Length/Coil (m)
14 40×0.26 mm 0.78 3.76 305
16 7×0.50 mm 0.78 3.36 305
17 32×0.20 mm 0.78 3.20 305
18 7×0.40 mm 0.78 3.06 305
*Full range: 32 AWG to 2 AWG available - contact for complete specs*

Construction & Material Science

  1. Conductor:

    • High-purity copper (tinned/silver/nickel options)

    • Optimized stranding for flexibility (e.g., 40x0.26mm for 14 AWG)

  2. Reinforcement Layer:

    • High-strength micro-glass fiber matrix

  3. Insulation:

    • Dual-phase silicone rubber compound

    • Thickness: 0.78mm (standard)

  4. Final Jacket:

    • UV-stabilized colored silicone

Material Advantages

Property Performance Benefit
Glass Fiber Reinforce. 3x higher tensile strength vs standard silicone
200°C Stability Zero degradation after 5,000h thermal aging
Cold Flexibility Passes -100°C cold bend test (IEC 60811-1-4)
Fire Resistance Self-extinguishing (IEC 60332-1)
Surface Resistivity 10¹⁵ Ω/cm (anti-static properties)

Target Applications

Critical High-Heat Environments:

  • Industrial Lighting: Foundry lamps, furnace lighting, high-bay fixtures

  • Appliance Wiring: Oven elements, burner igniters, boiler controls

  • Motor Systems: Generator/starter motor leads, traction motor wiring

  • Instrumentation: Thermocouples, sensors in kilns/autoclaves

  • Energy Sector: Gas turbine wiring, burner management systems

Specialized Use Cases:

Industry Application Wire Benefit
Glass Manufacturing Annealing lehr controls Resists thermal shock at 200°C
Commercial Cooking Pizza oven element wiring Withstands 250°C peak temperatures
Automotive Testing Engine dyno instrumentation Oil/fuel resistance + flexibility
Aerospace Auxiliary power unit (APU) wiring MIL-spec performance at altitude

Ordering Information

Specify:

  1. AWG Size: 32 AWG to 2 AWG

  2. Conductor Type:

    • TC: Tinned Copper (default)

    • SC: Silver-Coated Copper (enhanced conductivity)

    • NC: Nickel-Coated Copper (extreme corrosion resistance)

  3. Color: Red/Yellow/Blue/White/Black/YG/Brn/Org/Purple/Green/Custom

  4. Length: Standard 305m coils or cut lengths

  5. Certification Options:

    • UL File E123456 (Standard)

    • CSA AWM I/II A/B (Canada)

    • EN 50525 (EU)
