CKJP95/NC XLPE Insulation Low Smoke Halogen Free Fire Resistant Screened Marine Control Cable
Product Overview
The CKJP95/NC is an armored, fire-performance marine control cable designed for critical circuits in hazardous environments. Featuring XLPE insulation with mica glass tape, copper screening, and galvanized steel wire armor, it delivers exceptional fire resistance (IEC 60331), low smoke toxicity (IEC 61034/IEC 60754), and EMI protection. The halogen-free thermoset outer sheath (SHF2) ensures superior durability in extreme conditions.
Key Applications
-
Offshore Platforms: Control systems, power supplies, and instrumentation in oil/gas rigs.
-
Marine Vessels: Engine rooms, navigation systems, and emergency circuits.
-
Industrial Plants: Power generation, chemical processing, and mining operations requiring fire safety.
-
Coastal Infrastructure: Ports, docks, and coastal power distribution.
Compliance & Standards
-
Design: IEC 60092-350, 376
-
Conductor: IEC 60228 (Class 2/5 stranded copper)
-
Insulation/Sheath: IEC 60092-360
-
Fire Resistance: IEC 60331
-
Flame Retardancy: IEC 60332-1 & IEC 60332-3-22 (Category A)
-
Halogen-Free: IEC 60754
-
Low Smoke Density: IEC 61034

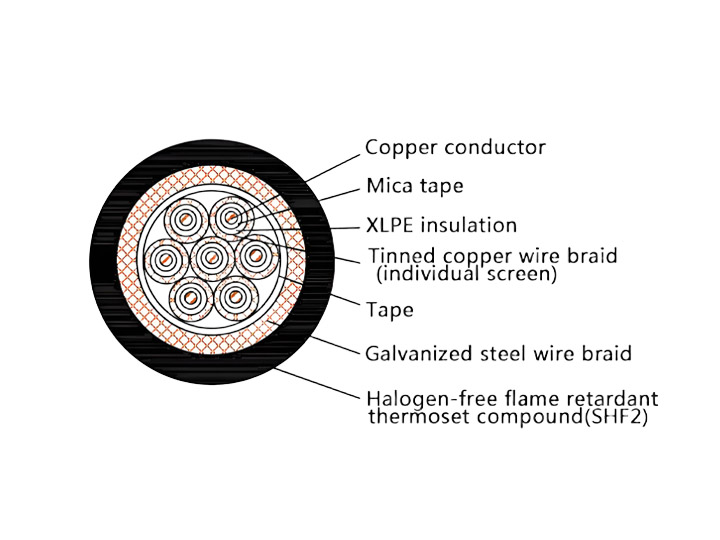

Cable Construction
| Layer | Code | Material/Description |
|---|---|---|
| Conductor | - | Tinned/plain annealed copper, stranded per IEC 60228 |
| Insulation | J | Mica glass tape + XLPE (90°C rating, enhanced fire integrity) |
| Screen | P | Tinned copper braid or Al/PET tape + drain wire (EMI/RFI protection) |
| Armor | 9 | Galvanized steel wire braid (mechanical/crushing resistance) |
| Outer Sheath | 5 | Halogen-free flame retardant thermoset compound (SHF2) - superior heat/fire resilience |
| Flammability | NC | Halogen Free, Low Smoke, Fire Resistant (IEC 60331/61034/60754) |
| Sheath Color | - | Standard black (custom colors available) |
Key Features
-
Fire Safety: Maintains circuit integrity during fire (IEC 60331) with minimal smoke/toxicity.
-
Armored Protection: Steel braid resists impact, crushing, and rodent damage.
-
EMI Shielding: Screened design ensures signal integrity in noisy environments.
-
Corrosion Resistant: Tinned copper + galvanized armor suit marine/offshore use.
-
Thermoset Sheath (SHF2): Higher temperature stability vs. thermoplastic alternatives.
Technical Specifications
| Parameter | Value |
|---|---|
| Rated Voltage | 150/250V |
| Operating Temperature | -20°C to +90°C |
| Conductor Size | 0.5 mm² – 2.5 mm² |
| Core Configuration | 1 to 37 cores |
| Fire Resistance | IEC 60331 (120 mins minimum) |
| Smoke Density | ≤ 60 (IEC 61034) |
| Acid Gas Emission | pH ≥ 4.3, conductivity ≤ 10 μS/mm (IEC 60754) |
Engineering Selection Notes
-
Critical Systems: Ideal for fire alarms, emergency lighting, and control circuits requiring circuit integrity during fire.
-
Harsh Environments: Armor and thermoset sheath (SHF2) withstand UV, oils, and abrasion.
-
EMI-Sensitive Areas: Specify for data/control signals near high-voltage equipment.
-
Certifications: Available with DNV-GL, LR, ABS, or other marine type approvals (on request).
