2 AWG 4C+6 AWG GND CU/XLPE/PVC Type MC Power Cable – 600V

Product Overview:

This 600V Black Type MC Power Cable features four 2 AWG current-carrying conductors and one 6 AWG bare copper ground conductor, insulated with Cross-Linked Polyethylene (XLPE) and protected by Aluminum Interlocked Armor (AIA) with a PVC overall jacket. Engineered for superior electrical performance, durability, and safety compliance.

APPLICATIONS:

• Wet or Dry Locations: Suitable for indoor and outdoor use.

• Installation Methods: Approved for use in conduit, duct, cable tray, troughs, direct earth burial, and messenger-supported aerial applications.

• Hazardous Locations: Certified for Class I, II, and III, Division 2 areas per NEC Articles 501 & 502.

• Versatile Environments: Ideal for industrial plants, commercial buildings, utility distribution, and service feeders where robust protection and reliability are required.

• Silicone Free.

CONDUCTOR:

• Phase/Neutral Conductors (4): 2 AWG, Class B compressed stranded bare copper per ASTM B3 and ASTM B8.

• Equipment Grounding Conductor (1): 6 AWG, Class B compressed stranded bare copper per ASTM B3 and ASTM B8.

INSULATION:

• Cross-Linked Polyethylene (XLPE), Type XHHW-2.

• Key Properties: Excellent thermal stability, moisture resistance, chemical resistance, and high dielectric strength.

GROUND:

• Integral 6 AWG bare copper ground conductor (as specified under Conductors).

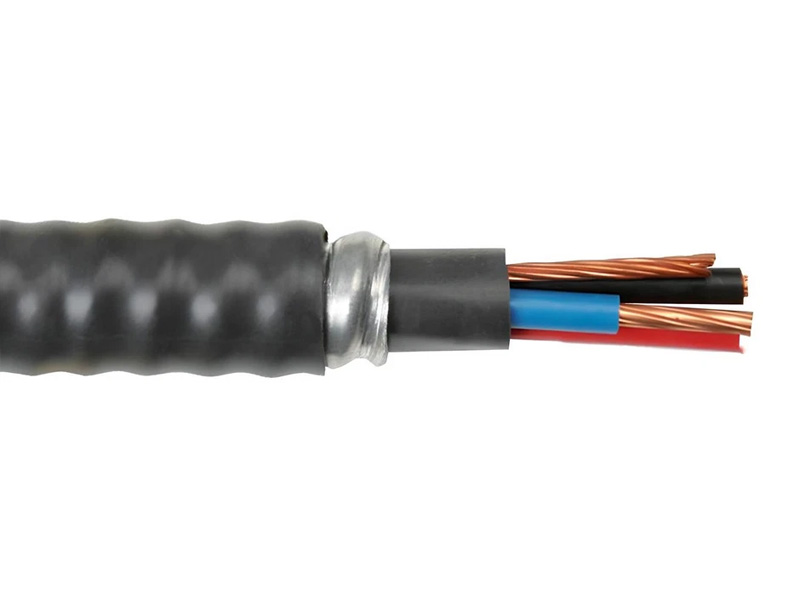

CABLE CONSTRUCTION:

1. Conductors: Four 2 AWG + One 6 AWG bare copper ground.

2. Insulation: XLPE (XHHW-2) individually on each current-carrying conductor.

3. Assembly: Conductors cabled together with ground.

4. Inner Wrap: Typically a non-hygroscopic tape (not explicitly stated, but standard MC construction).

5. Armor: Aluminum Interlocked Armor (AIA). Provides exceptional mechanical protection, crush resistance, and acts as an equipment grounding path (requires proper termination per NEC).

6. Overall Jacket: Polyvinyl Chloride (PVC), Black. Offers sunlight resistance, abrasion resistance, and protection against moisture, oils, and chemicals.

TEMPERATURE RATINGS:

• Normal Operation (Wet/Dry): 90°C (194°F) continuous.

• Emergency Overload: 130°C (266°F) maximum, limited duration (consult standards).

• Short Circuit: 250°C (482°F) maximum conductor temperature based on 1-second fault criteria.

STANDARDS & COMPLIANCE:

• UL 1569 (Metal-Clad Cables)

• UL 44 (Thermoset-Insulated Wires and Cables) - For XHHW-2 insulation.

• UL 1685 (Vertical-Tray Fire-Propagation & Smoke-Release Test)

• ASTM B3 (Standard Specification for Soft or Annealed Copper Wire)

• ASTM B8 (Standard Specification for Concentric-Lay-Stranded Copper Conductors, Class B)

• ICEA S-58-679 (Standard for Control Cables - Conductor Identification: 1-Black, 2-Red, 3-Blue, 4-Orange)

• ICEA S-95-658 (NEMA WC 70) (Standard for Power Cables Rated 2000 Volts or Less for the Distribution of Electrical Energy)

• Listed: Suitable for use per National Electrical Code (NEC).

• Hazardous Locations: Certified for Class I, II, III, Division 2 (NEC 501, 502).

PRODUCT SPECIFICATIONS (Per UL 1569):

CONDUCTOR IDENTIFICATION:

• Complies with ICEA S-58-679 Method 3: Phase 1: Black, Phase 2: Red, Phase 3: Blue, Phase 4: Orange. Ground: Bare Copper.

CUSTOM LENGTHS:
Cut-to-length service is available. Contact us for custom order requirements.
