Product Overview
The Low Voltage Power Multi-Conductor MC Cable is a versatile, cost-effective solution designed to replace traditional conduit systems in industrial, commercial, and hazardous environments. Rated for 90°C in both dry and wet conditions, this cable features stranded copper conductors, color-coded insulation, and a corrugated aluminum C-L-X sheath for durability and EMI protection. Suitable for power, lighting, control, and signal circuits, it complies with NEC, UL, and RoHS standards, making it ideal for direct burial, cable trays, raceways, and Class I/II/III hazardous locations.
Key Features
-
Voltage Rating: Low voltage (up to 600V) for power and control applications.
-
Temperature Rating: 90°C (dry/wet) for reliable operation in harsh conditions.
-
Multi-Conductor Design: 2+ conductors (14 AWG to 750 kcmil) with compact stranding for sizes #8 AWG and larger.
-
Robust Sheath: Corrugated aluminum C-L-X armor for crush resistance, EMI shielding, and environmental protection.
-
Hazardous Location Rated: Approved for Class I, II, III, Divisions 1 and 2.
-
Flexible Installation: Suitable for aerial, direct burial, cable trays, and open runs.

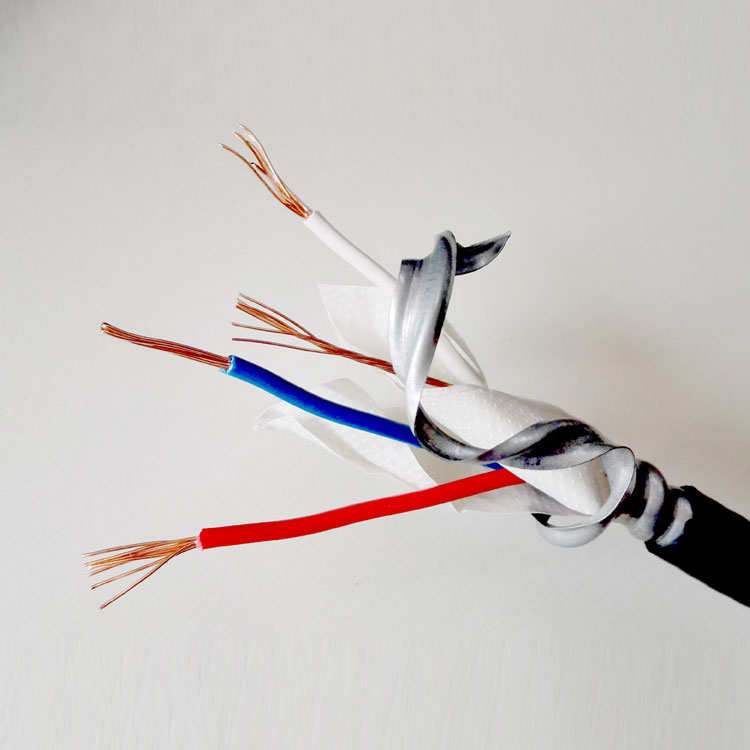

Construction Details
Conductors
-
Material: Stranded copper (14 AWG to 750 kcmil).
-
Stranding: Compact stranded for #8 AWG and larger; standard stranded for smaller sizes.
-
Insulation: Color-coded thermoplastic for phase identification.
Core Assembly
-
Ground Wire: Integrated grounding conductor for NEC compliance.
-
Fillers & Binder Tape: Ensure structural integrity and roundness.
Sheath & Jacket
-
Armor: Corrugated aluminum C-L-X sheath for mechanical protection and EMI shielding.
-
Outer Jacket: Durable overall jacket for additional abrasion and chemical resistance.
Technical Specifications
| Parameter | Specification |
|---|---|
| Voltage Rating | Up to 600V |
| Temperature Range | -40°C to 90°C (dry/wet) |
| Conductor Sizes | 14 AWG to 750 kcmil |
| Standards | NEC, UL, RoHS/REACH |
| Flame Rating | Flame-retardant, suitable for hazardous zones |
| Resistance | Moisture, chemicals, abrasion, EMI |
Applications
-
Industrial Power Distribution: Machinery, motor controls, and VFD/PWM drives.
-
Commercial Lighting: Exposed or concealed wiring in offices, retail spaces, and warehouses.
-
Hazardous Locations: Oil refineries, chemical plants, and mining operations (Class I/II/III).
-
Outdoor/Underground: Direct burial, aerial installations, and cable tray systems.
-
Signal & Control Circuits: Automation systems, HVAC controls, and data centers.
Compliance & Certifications
-
NEC Compliance: Meets Articles 300, 725, and 820 for power and control circuits.
-
UL Listed: Certified for safety and performance in industrial applications.
-
Environmental: RoHS/REACH compliant for hazardous substance control.
Engineering Selection Guide
-
Harsh Environments: Opt for C-L-X sheath in areas with moisture, chemicals, or mechanical stress.
-
EMI Sensitivity: Use aluminum sheath for noise reduction in VFD/PWM drive applications.
-
Flexibility Needs: Stranded copper ensures ease of installation in tight spaces.
-
Safety Compliance: Verify NEC and UL standards for hazardous location approvals.
