0.6/1kV Armored Power Cable – XLPE Insulated, Steel Wire Armoured, PVC Sheathed (IEC 60502-1, IEC 60332)

Low Voltage Power Cables Armored Power Cables161
Description
Specifications

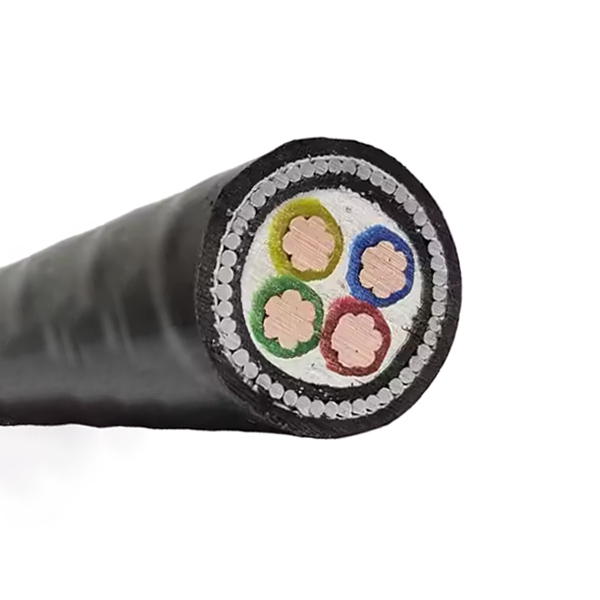

0.6/1kV Armored Power Cable – XLPE Insulated, Steel Wire Armoured, PVC Sheathed (IEC 60502-1, IEC 60332)-Picture1

Product Overview

0.6/1kV XLPE Insulated Steel Wire Armoured (SWA) PVC Sheathed Power Cable

Technical Standards

  • Compliance: IEC 60502-1, IEC 60332, BS 5467

  • Rated Voltage: 0.6/1kV

  • Temperature Rating: 90°C continuous operation

Construction & Materials

Component Specification
Conductor Plain/metal-coated annealed copper (IEC 60228 Class 1/2/5) or aluminum
Insulation XLPE, thickness per IEC 60502/BS 5467
Color Code 2-core: Brown/Blue; 3-core: Brown/Black/Grey; 4-core+: Black + white numerals
Inner Bedding Extruded/lapped filler, halogen-free options available
Armour Galvanized Steel Wire (GSWA) per IEC 60502-1 (Aluminum/steel tape optional)
Outer Sheath PVC Type ST1/ST2 (Standard). Options: PE (ST3/ST7), Halogen-Free (ST8), CSPE

Key Features

  • Robust Protection: GSWA resists mechanical stress, rodents, and corrosion.

  • Multi-Environment Use: Rated for direct burial, cable ducts, indoor/outdoor, and industrial plants.

  • Fire Safety:

    • Standard: IEC 60332 flame-retardant PVC

    • Upgradeable to IEC 60332-3 Cat A/B/C or Halogen-Free (IEC 60754-1/2) for low smoke/zero toxin.

  • Customization: Conductor class, armor type, sheath material, and core colors on request.

Applications

  • Energy Distribution: Switchgear, transformer stations, and local power grids.

  • Industrial: Manufacturing plants, machinery wiring, and conveyor systems.

  • Infrastructure: Underground networks, tunnels, and exposed outdoor installations.

Engineering Selection Guide

  1. Conductor Sizing: Refer to IEC 60228 ampacity tables (40°C ambient).

  2. Armour Selection:

    • GSWA: General mechanical protection

    • Aluminum Tape: Highly corrosive environments

  3. Sheath Criticality:

    • PVC: Cost-efficient general use

    • LSZH (Halogen-Free): Confined/public spaces (subways, airports)

  4. Fire Certifications: Specify IEC 60332-3-24 (Cat C) or IEC 60754 for high-safety zones.

Certifications:
• CE Marked • ISO 9001 Certified

Ordering Note:
Custom configurations (cores, fire ratings, materials) supported. Request datasheets for project-specific specs.

Cable Parameters

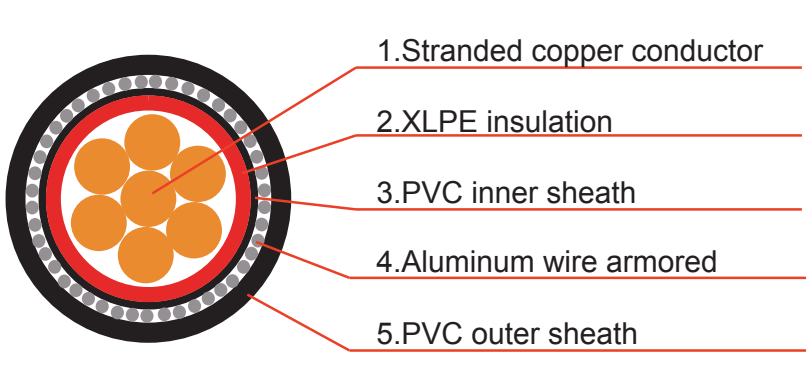

-Single core armored cable

Single core

( aluminum wire armoured)

 0.6/1kV Armored Power Cable – XLPE Insulated, Steel Wire Armoured, PVC Sheathed (IEC 60502-1, IEC 60332)-Picture2
Nominal Cross Section Diameter of Conductor (Approx.) Nominal Insulation thickness Nominal Inner Covering thickness Nominal Alum Wire dia. Nominal Sheath thickness Overall Diameter (Approx.)
mm^2 mm mm mm mm mm mm
1x4 2.3 0.7 1.0 0.8 1.8 10.9
1x6 2.8 0.7 1.0 0.8 1.8 11.4
1x10 3.6 0.7 1.0 0.8 1.8 12.2
1x16 4.5 0.7 1.0 0.8 1.8 13.1
1x25 5.6 0.9 1.0 0.8 1.8 14.6
1x35 6.7 0.9 1.0 1.25 1.8 16.6
1x50 8.0 1 1.0 1.25 1.8 18.1
1x70 9.4 1.1 1.0 1.25 1.8 19.7
1x95 11.0 1.1 1.0 1.6 1.8 22.0
1x120 12.4 1.2 1.0 1.6 1.8 23.6
1x150 13.8 1.4 1.0 1.6 1.8 25.4
1x185 15.3 1.6 1.0 1.6 1.8 27.4
1x240 17.5 1.7 1.0 1.6 1.9 29.9
1x300 19.5 1.8 1.0 2.0 2.0 33.1
1x400 22.6 2 1.2 2.0 2.2 37.3
1x500 25.2 2.2 1.2 2.0 2.3 40.5

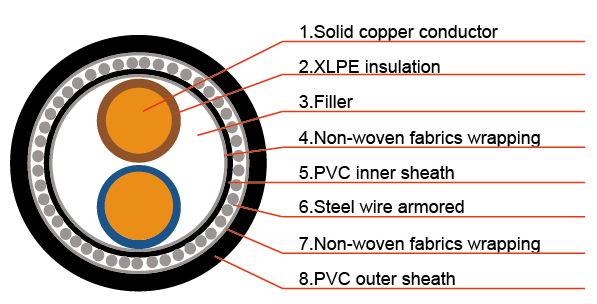

-Two core armored cables

Two cores

(Galvanized steel wire armoured)

 0.6/1kV Armored Power Cable – XLPE Insulated, Steel Wire Armoured, PVC Sheathed (IEC 60502-1, IEC 60332)-Picture3
Nominal Cross Section Diameter of Conductor (Approx.) Nominal Insulation thickness Nominal Inner Covering thickness Nominal Steel Wire dia. Nominal Sheath thickness Overall Diameter (Approx.)
mm^2 mm mm mm mm mm mm
2x1.5 1.4 0.7 1.0 0.8 1.8 12.8
2x2.5 1.8 0.7 1.0 0.8 1.8 13.6
2x4 2.3 0.7 1.0 0.8 1.8 14.6
2x6 2.8 0.7 1.0 1.25 1.8 16.5
2x10 3.6 0.7 1.0 1.25 1.8 18.1
2x16 4.5 0.7 1.0 1.25 1.8 19.9
2x25 5.6 0.9 1.0 1.6 1.8 23.6
2x35 6.7 0.9 1.0 1.6 1.8 25.8
2x50 8.0 1 1.0 1.6 1.9 29.0
2x70 9.4 1.1 1.0 2.0 2.0 33.2
2x95 11.0 1.1 1.2 2.0 2.1 37.1
2x120 12.4 1.2 1.2 2.0 2.3 40.5
2x150 13.8 1.4 1.2 2.5 2.4 45.4
2x185 15.3 1.6 1.4 2.5 2.6 49.9
2x240 17.5 1.7 1.4 2.5 2.7 55.1
2x300 19.5 1.8 1.6 2.5 2.9 60.2
2x400 22.6 2 1.6 2.5 3.1 67.7

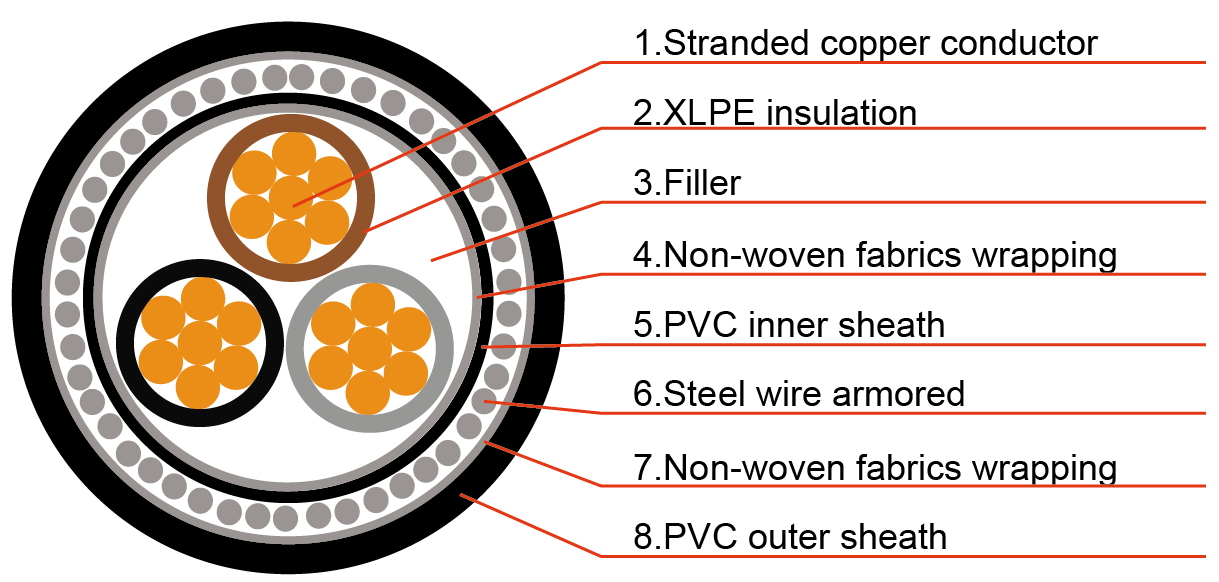

-Three cores armored cables

Three cores

(Galvanized steel wire armoured)

 0.6/1kV Armored Power Cable – XLPE Insulated, Steel Wire Armoured, PVC Sheathed (IEC 60502-1, IEC 60332)-Picture4
Nominal Cross Section Diameter of Conductor (Approx.) Nominal Insulation thickness Nominal Inner Covering thickness Nominal Steel Wire dia. Nominal Sheath thickness Overall Diameter (Approx.)
mm^2 mm mm mm mm mm mm
3x1.5 1.4 0.7 1.0 0.8 1.8 13.2
3x2.5 1.8 0.7 1.0 0.8 1.8 14.1
3x4 2.3 0.7 1.0 0.8 1.8 15.2
3x6 2.8 0.7 1.0 1.25 1.8 17.1
3x10 3.6 0.7 1.0 1.25 1.8 18.9
3x16 4.5 0.7 1.0 1.25 1.8 20.8
3x25 5.6 0.9 1.0 1.6 1.8 24.7
3x35 6.7 0.9 1.0 1.6 1.8 27.2
3x50 8.0 1 1.0 1.6 1.9 30.6
3x70 9.4 1.1 1.0 2.0 2.1 35.2
3x95 11.0 1.1 1.2 2.0 2.2 39.3
3x120 12.4 1.2 1.2 2.0 2.3 43.0
3x150 13.8 1.4 1.4 2.5 2.5 48.6
3x185 15.3 1.6 1.4 2.5 2.7 53.0
3x240 17.5 1.7 1.4 2.5 2.8 58.5
3x300 19.5 1.8 1.6 2.5 3.0 64.0
3x400 22.6 2 1.6 3.15 3.3 73.5

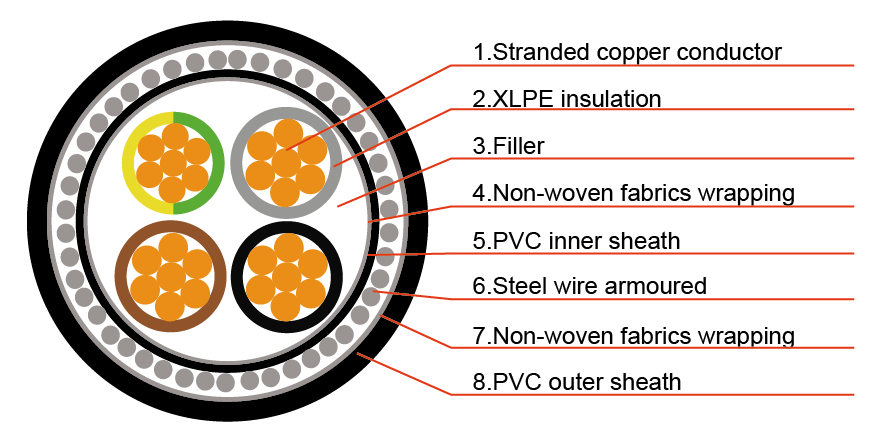

-Three cores with earth cores armored cables

Three cores+1

(Galvanized steel wire armoured)

 0.6/1kV Armored Power Cable – XLPE Insulated, Steel Wire Armoured, PVC Sheathed (IEC 60502-1, IEC 60332)-Picture5
Nominal Cross Section Diameter of Conductor (Approx.) Nominal Insulation thickness Nominal Inner Covering thickness Nominal Steel Wire dia. Nominal Sheath thickness Overall Diameter (Approx.)
mm^2 (3) mm (1) mm (3) mm (1) mm mm mm mm mm
3x 16/10 4.5 3.6 0.7 0.7 1 1.6 1.8 22.7
3x 25/16 5.6 4.5 0.9 0.7 1 1.6 1.8 26.5
3x 35/16 6.7 4.5 0.9 0.7 1 1.6 1.9 29
3x 50/25 8.0 5.6 1 0.9 1 1.6 2.1 33
3x 70/35 9.4 6.7 1.1 0.9 1.2 2 2.2 38
3x 95/50 11.0 8.0 1.1 1 1.2 2 2.3 42.4
3x120/70 12.4 9.4 1.2 1.1 1.2 2 2.5 48.0
3x150/70 13.8 9.4 1.4 1.1 1.4 2.5 2.7 52
3x185/95 15.3 11.0 1.6 1.1 1.4 2.5 2.8 57.2
3x240/120 17.5 12.4 1.7 1.2 1.6 2.5 3.1 64
3x300/150 19.5 13.8 1.8 1.4 1.6 2.5 3.2 69.8
3x400/185 22.6 15.3 2 1.6 1.6 3.15 3.6 78.6

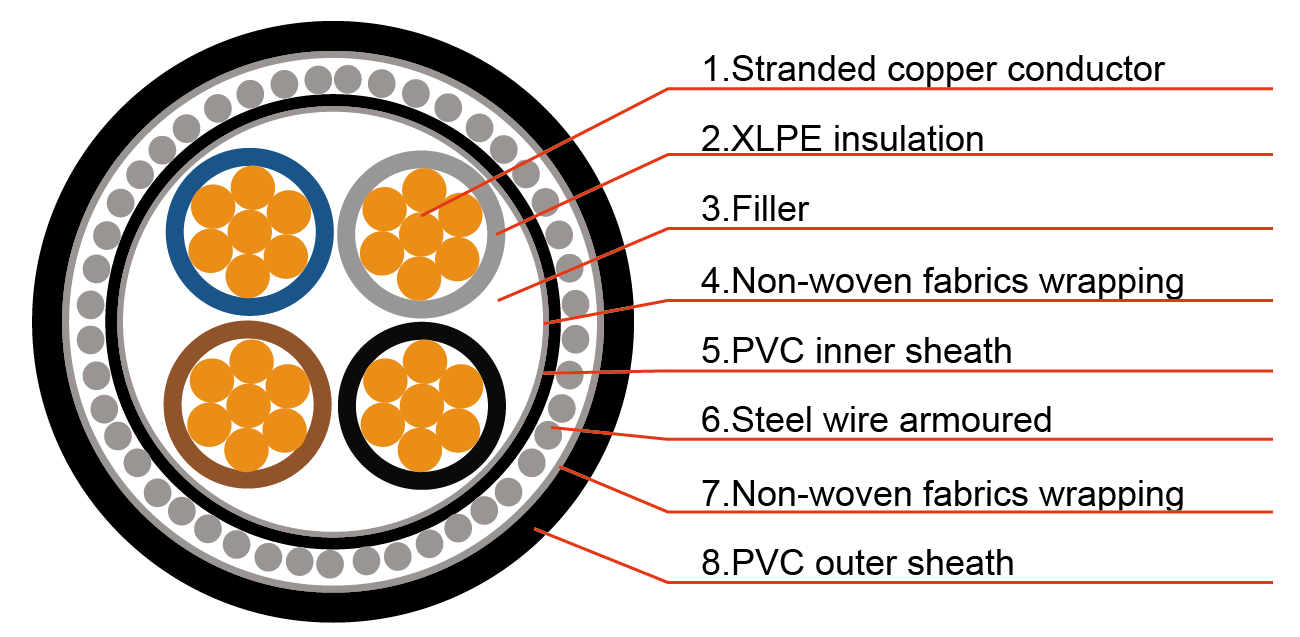

-Four cores,armored cable

Four cores

(Galvanized steel wire armoured)

 0.6/1kV Armored Power Cable – XLPE Insulated, Steel Wire Armoured, PVC Sheathed (IEC 60502-1, IEC 60332)-Picture6
Nominal Cross Section Diameter of Conductor (Approx.) Nominal Insulation thickness Nominal Inner Covering thickness Nominal Steel Wire dia. Nominal Sheath thickness Overall Diameter (Approx.)
mm^2 mm mm mm mm mm mm
4x1.5 1.4 0.7 1.0 0.8 1.8 14.0
4x2.5 1.8 0.7 1.0 0.8 1.8 14.9
4x4 2.3 0.7 1.0 1.25 1.8 17.0
4x6 2.8 0.7 1.0 1.25 1.8 18.2
4x10 3.6 0.7 1.0 1.25 1.8 20.2
4x16 4.5 0.7 1.0 1.6 1.8 23.0
4x25 5.6 0.9 1.0 1.6 1.8 26.7
4x35 6.7 0.9 1.0 1.6 1.9 29.5
4x50 8.0 1 1.0 2.0 2.1 34.2
4x70 9.4 1.1 1.2 2.0 2.2 38.8
4x95 11.0 1.1 1.2 2.0 2.3 42.9
4x120 12.4 1.2 1.4 2.5 2.5 48.6
4x150 13.8 1.4 1.4 2.5 2.7 53.2
4x185 15.3 1.6 1.4 2.5 2.8 58.1
4x240 17.5 1.7 1.6 2.5 3.1 64.8
4x300 19.5 1.8 1.6 2.5 3.2 70.4
4x400 22.6 2 1.8 3.15 3.6 81.3
