Product Overview

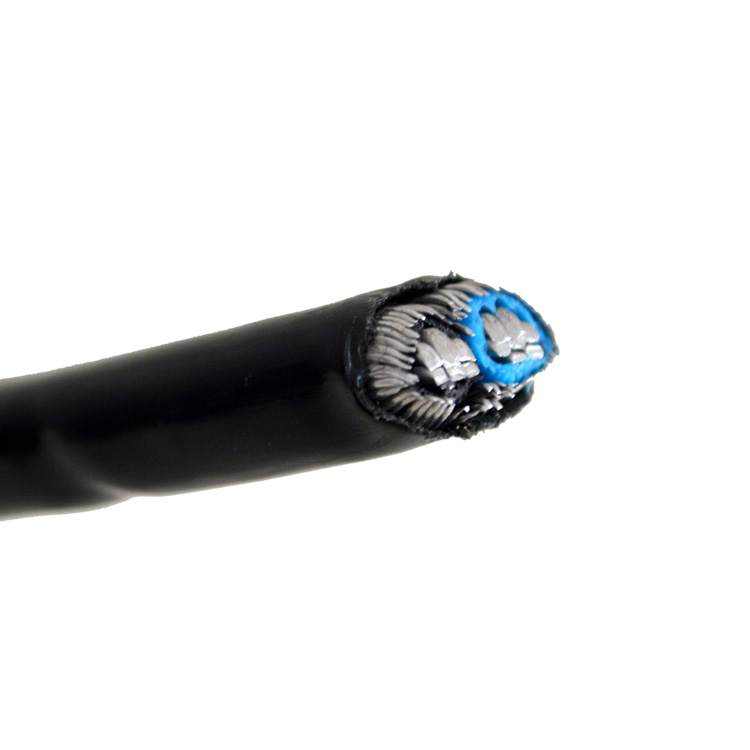

Aluminum Service Entrance (SE) Cable provides a cost-effective solution for power transmission from service drops to meter bases and distribution panels. Available in Type SE, SER, and SEU configurations, this 600V-rated cable features sunlight-resistant XHHW-2 or THHN/THWN aluminum conductors with a durable gray PVC jacket. Designed for both wet and dry locations, it meets UL 44, UL 83, and UL 854 standards while maintaining reliable performance up to 90°C, offering an economical alternative to copper conductors.
Key Features
-
Lightweight Design: Aluminum construction reduces weight by approximately 50% compared to copper equivalents
-
Multiple Configurations: Available as SE (flat), SER (round), and SEU (with concentric neutral)
-
Conductor Options: XHHW-2 or THHN/THWN insulated aluminum conductors (90°C wet/dry rating)
-
UV Protection: Sunlight-resistant gray PVC jacket for outdoor durability
-
Grounding Options: 1-3 conductors with bare or concentric ground configurations
-
Compliance: Meets UL 44, UL 83, UL 854, and ASTM standards
Construction Details
| Component | Specification |
|---|---|
| Conductors | AA-8000 series aluminum alloy, XHHW-2 or THHN/THWN insulation |
| Insulation | Cross-linked polyethylene (XHHW-2) or thermoplastic (THHN/THWN) |
| Jacket | Sunlight-resistant gray PVC |
| Voltage Rating | 600V |
| Temperature Range | -40°C to +90°C |
| Grounding | Bare or concentric ground options available |
Technical Specifications
-
Standards Compliance: UL 44 (XHHW-2), UL 83 (THHN/THWN), UL 854
-
Conductor Sizes: 6 AWG to 1000 kcmil (one size larger than copper equivalent required)
-
Insulation Thickness: Meets UL requirements for voltage rating
-
Flame Rating: Flame-retardant per UL standards
-
Environmental Resistance: UV, moisture, and abrasion resistant
Applications
-
Service Entrance Runs: From utility drops to meter bases
-
Panelboard Connections: Between meters and distribution panels
-
Commercial Buildings: Where cost-effective power distribution is required
-
Outdoor Installations: Exposed wiring for residential/commercial buildings
-
Wet Locations: Suitable for damp environments when properly installed
Installation Guidelines
-
Bending Radius: Minimum 6x cable diameter for SE/SER cables
-
Termination Requirements: Must use antioxidant compound and aluminum-rated connectors
-
Support Requirements: Secure every 4.5 feet when exposed
-
Grounding: Must comply with NEC grounding requirements
-
Prohibited Uses: Not for direct burial unless specifically rated
Why Choose Aluminum SE Cable?
-
Cost Efficiency: Significant material cost savings versus copper
-
Lightweight: Easier handling and installation
-
Corrosion Resistance: AA-8000 series alloy resists oxidation
-
Code Compliance: Meets NEC requirements for service entrance applications
-
Durability: UV-stable jacket protects against environmental factors
