Product Overview
ACWU90 is a versatile aluminum-conductor armoured cable designed for robust electrical distribution in demanding environments. Certified to CSA standards (C22.2 No. 174 & No. 51) and CUL-listed, it combines corrosion resistance, mechanical protection, and flame-retardant properties for reliable power transmission in wet/dry, exposed, or buried applications.
Key Applications
-
Exposed Wiring: Weather-exposed installations, wet/dry locations.
-
Concealed Wiring: Ducts, conduits, and service entrances (above/below ground).
-
Cable Trays: Ventilated, non-ventilated, and ladder-type trays.
-
Direct Burial: Earth burial without additional conduit.
-
Industrial/Commercial Use: Service entrances, feeders, and branch circuits.

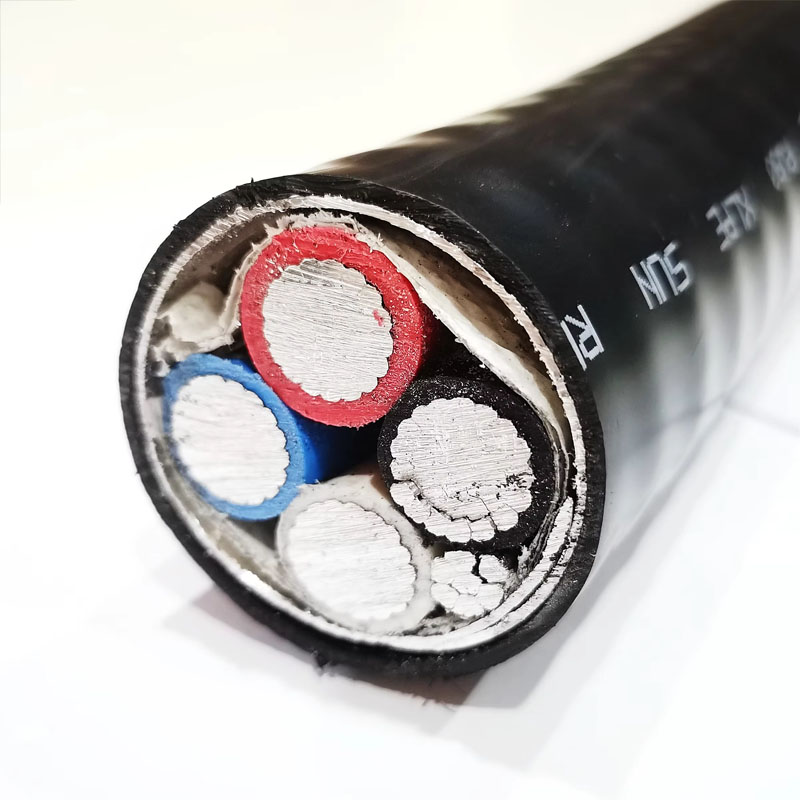

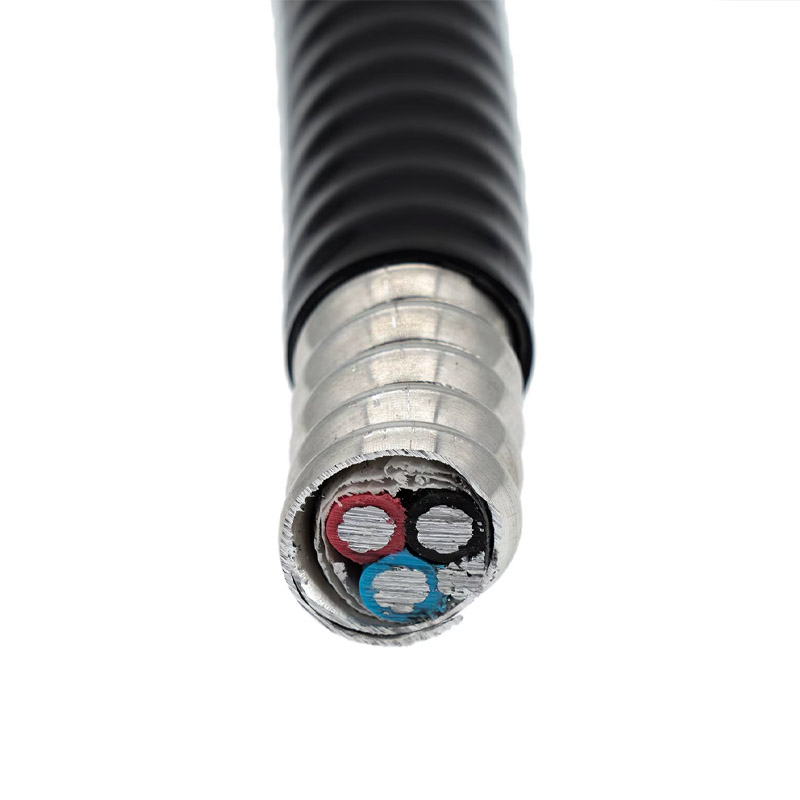

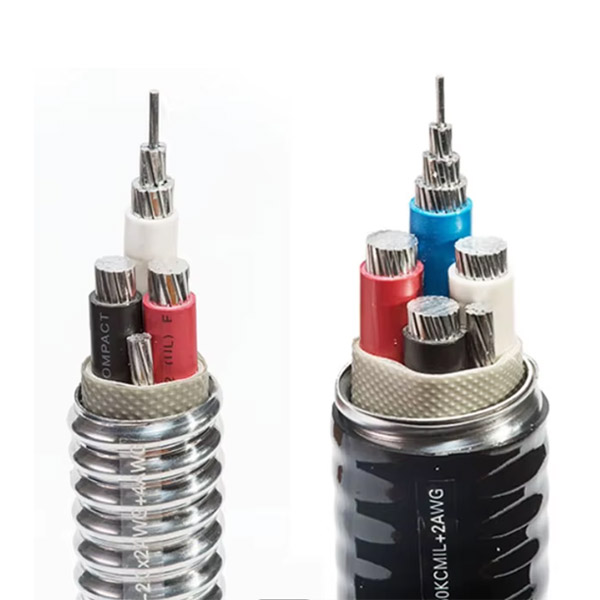

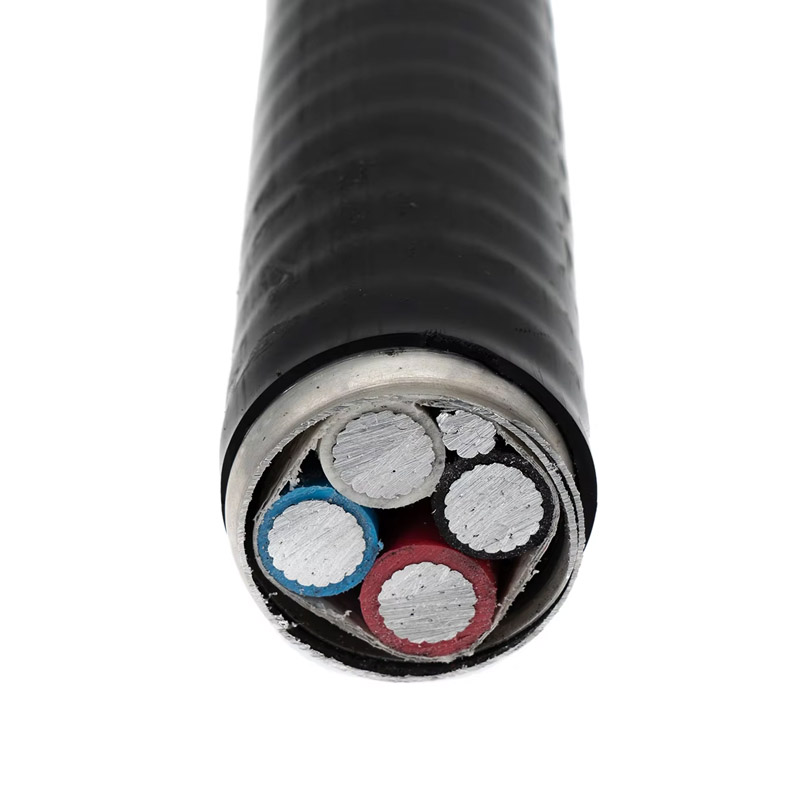

Construction & Materials
| Layer | Material & Specifications |
|---|---|
| Conductor | 3 or 4 compact 8000 Series ACM aluminum conductors. Includes a bare aluminum bonding wire. |
| Insulation | XLPE (cross-linked polyethylene), rated for low-temperature flexibility. |
| Assembly Wrap | Non-hygroscopic paper or polypropylene (PP) tape. |
| Armour | Interlocked aluminum armor for crush/cut resistance. |
| Outer Jacket | Low flame-spread PVC, UV/corrosion/moisture resistant. |
| Phase Identification | 3-core: Black, Red, White; 4-core: Black, Red, Blue, White. |
Technical Specifications
Standards Compliance: CSA C22.2 No. 174, CSA C22.2 No. 51
Voltage Rating & Key Specifications：
| Parameter | Specification |
|---|---|
| Rated Voltage | 600V AC (60Hz) |
| Temperature Rating | -40°C to +90°C (operating) |
| Short-Circuit Rating | 200°C max (CSA C22.2 No. 51) |
| Flame Spread | FT4 Rating (Low flame-spread PVC jacket) |
Technical Data Table:
| # of Cores | Conductor Size (AWG/kcmil) | Insulation Thickness (mm) | Bonding Wire Size (AWG) | Jacket Thickness (mm) | Approx. Diameter (mm) | Approx. Weight (kg/km) |
|---|---|---|---|---|---|---|
| 3-core | 6 | 1.14 | 8 | 1.27 | 21.6 | 807.4 |
| 4 | 1.14 | 6 | 1.27 | 24.2 | 980.8 | |
| 3 | 1.14 | 6 | 1.27 | 25.4 | 1,071.4 | |
| 2 | 1.14 | 6 | 1.27 | 27.0 | 1,188.4 | |
| 1 | 1.40 | 4 | 1.27 | 29.9 | 1,411.6 | |
| 1/0 | 1.40 | 4 | 1.27 | 31.8 | 1,575.2 | |
| 2/0 | 1.40 | 4 | 1.27 | 34.0 | 1,772.8 | |
| 3/0 | 1.40 | 4 | 1.27 | 36.6 | 2,015.2 | |
| 4/0 | 1.40 | 4 | 1.27 | 39.5 | 2,304.1 | |
| 250 | 1.65 | 2 | 1.52 | 43.5 | 2,668.4 | |
| 500 | 1.65 | 1 | 1.52 | 58.7 | 4,712.7 | |
| 4-core | 6 | 1.14 | 8 | 1.27 | 23.7 | 931.9 |
| 4 | 1.14 | 6 | 1.27 | 26.6 | 1,141.9 | |
| 1 | 1.40 | 4 | 1.27 | 33.2 | 1,674.9 | |
| 4/0 | 1.40 | 4 | 1.27 | 43.8 | 2,781.4 | |
| 250 | 1.65 | 2 | 1.52 | 51.2 | 3,708.4 | |
| 750 | 2.03 | 1 | 1.90 | 77.6 | 7,847.1 |
Material Advantages
-
XLPE Insulation: High thermal resistance (90°C rating), excellent dielectric strength.
-
Aluminum Armour: Lightweight, non-magnetic, and corrosion-resistant.
-
PVC Jacket: Flame-retardant (FT4 rating), resists oils, chemicals, and sunlight.
-
Bonding Wire: Ensures grounding continuity and fault-current safety.
Engineering Benefits
-
Durability: Aluminum armour withstands impact, rodents, and environmental stress.
-
Installation Flexibility: Suitable for direct burial, trays, or exposed runs without conduit.
-
Cost-Efficiency: Aluminum conductors reduce weight and material costs vs. copper.
-
Safety Compliance: Meets CSA/CUL flame spread, smoke density, and electrical safety requirements.
