PVC Insulation SWA Armored Power Cable, 0.6/1kV – BS 6346

Low Voltage Power Cables
Description

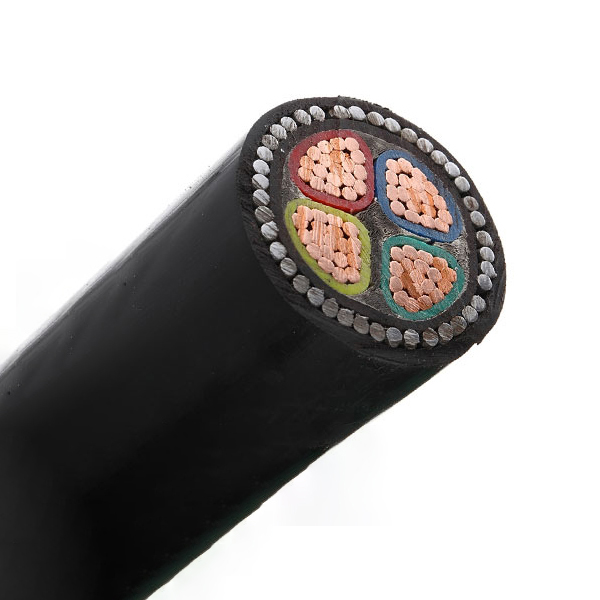

BS 6346 PVC Insulation SWA Armored Power Cable

Product Overview

These cables are used for electricity supply in low voltage installation systems. They are suitable for installation indoors and outdoors, in cable ducts, underground, in power and switching stations, local energy distributions, and industrial plants, where there is no risk of mechanical damage. The lead sheath brings enhanced resistance to aromatic hydrocarbons.

Production Range:

  • Rated Voltage Uo/U (Um): 0.6/1 (1.2) kV

  • Number of Cores: 1, 2, 3, 4, 5, 3+1, 4+1, 3+2

  • Nominal Cross-Section: 1.5–630 mm²

Applications

  • Electricity supply in low voltage installation systems

  • Indoor and outdoor installation

  • Cable ducts and underground installation

  • Power and switching stations

  • Local energy distributions

  • Industrial plants where there is no risk of mechanical damage

  • Enhanced resistance to aromatic hydrocarbons due to lead sheath

Features & Benefits

  • Voltage Rating: 0.6/1 (1.2) kV

  • Conductor Options: Plain circular, compacted, or shaped stranded copper or aluminium

  • Insulation: XLPE (cross-linked polyethylene) rated at 90°C (as stated in source document)

  • Armour: Aluminium or galvanized steel wires; single-core cables use aluminium wire armour; aluminium/steel tapes applied helically over the bedding of multi-core cables

  • Outer Sheath: Extruded PVC Type ST2 as per IEC 60502-1 or Type 9 as BS 6346/5467

  • Special Sheathing Options: Fire Retardant PVC, Anti-Termite PVC, Anti-Rodent PVC, Sunlight Resistant PVC, Oil Resistant PVC available on request

  • Alternative Sheathing Materials: LLDPE, MDPE, HDPE, LSZH, and CPE available on request

  • Mechanical Protection: Suitable for installation where no risk of mechanical damage exists

  • Compliance: BS 6346, AS/NZS 5000.1, AS/NZS 5000.2

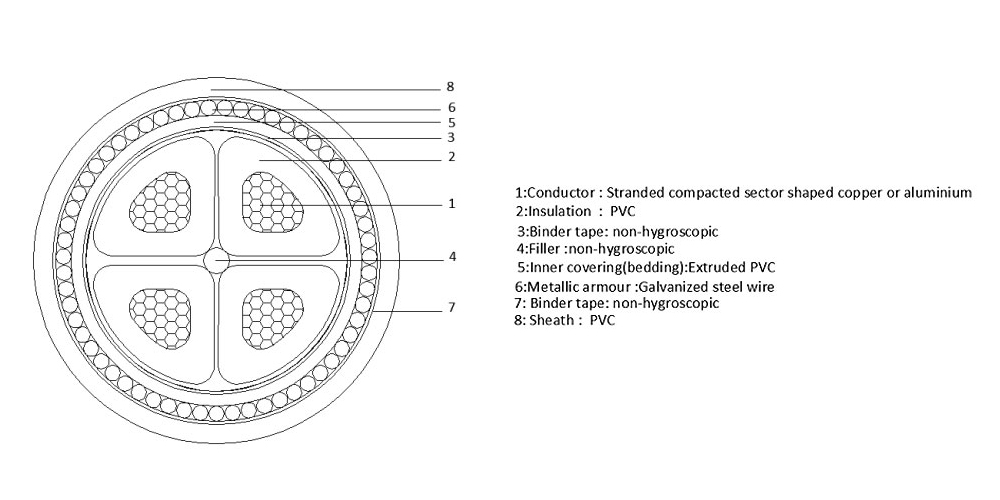

Construction

  • Conductor Shape:

    • RE = circular solid

    • CC = compacted circular stranded

    • SM = sector shaped stranded

  • Conductors: Plain circular, compacted, or shaped stranded copper or aluminium conductor

  • Insulation: XLPE (cross-linked polyethylene) rated at 90°C

  • Assembly / Inner Sheath: Two, three, or four insulated conductors are laid-up together with non-hygroscopic fillers, and the assembly is bedded with an extruded layer of PVC. In case of non-armoured cables, this layer may be omitted

  • Armour: Aluminium/galvanized steel wires. Single-core cables shall be aluminium wire armour. Aluminium/steel tapes applied helically over the bedding of multi-core cables

  • Outer Sheath: Extruded PVC Type ST2 as per IEC 60502-1 or Type 9 as BS 6346/5467. Special PVC sheathing materials such as Fire Retardant PVC, Anti-Termite PVC, Anti-Rodent PVC, Sunlight Resistant PVC, Oil Resistant PVC are available on special request. Special sheathing materials such as LLDPE, MDPE, HDPE, LSZH, and CPE are available on request

Technical Data

SWA – 4-Core Cables

Type Nominal Section Area (mm²) Conductor Diameter (mm) Nominal Insulation Thickness (mm) Diameter of Steel Wire (mm) Nominal Sheath Thickness (mm) Approx. Overall Diameter (mm) Approx. Weight of Cable – Cu (kg/km) Approx. Weight of Cable – Al (kg/km) Max. DC Resistance – Cu @ 20°C (Ω/km) Max. DC Resistance – Al @ 20°C (Ω/km)
4×1.5 RE 1.5 1.38 0.8 0.8 1.8 13.2 430 - 12.1 -
4×2.5 RE 2.5 1.78 0.8 0.8 1.8 14.2 502 440 7.41 12.1
4×4 RE 4 2.24 1.0 1.25 1.8 16.3 774 674 4.61 7.41
4×6 RE 6 2.76 1.0 1.25 1.8 17.5 927 778 3.08 4.61
4×10 CC 10 3.8 1.0 1.25 1.8 20.0 1215 972 1.83 3.08
4×16 CC 16 4.8 1.0 1.6 1.8 22.4 1679 1290 1.15 1.91
4×25 CC 25 6.0 1.2 1.6 1.8 26.3 2240 1632 0.727 1.20
4×35 CC 35 7.0 1.2 1.6 1.9 28.8 2744 1897 0.524 0.868
4×50 SM 50 8.0 1.4 2.0 2.0 30.0 3485 2301 0.387 0.641
4×70 SM 70 9.5 1.4 2.0 2.2 34.8 4565 2883 0.268 0.443
4×95 SM 95 11.0 1.6 2.5 2.4 39.1 6241 3935 0.193 0.320
4×120 SM 120 12.4 1.6 2.5 2.5 41.8 7352 4436 0.153 0.253
4×150 SM 150 13.8 1.8 2.5 2.6 46.9 8964 5300 0.124 0.206
4×185 SM 185 15.4 2.0 2.5 2.8 52.5 10804 6268 0.0991 0.164
4×240 SM 240 17.5 2.2 2.5 3.0 57.5 13432 7525 0.0754 0.125
4×300 SM 300 19.6 2.4 3.15 3.2 63.2 17056 9642 0.0601 0.100

Note: Values are approximate. RE = circular solid, CC = compacted circular stranded, SM = sector shaped stranded.

Standards & Compliance

  • BS 6346

  • AS/NZS 5000.1

  • AS/NZS 5000.2

  • IEC 60502-1 (for PVC sheath Type ST2)

  • BS 6346/5467 (for PVC sheath Type 9)

Ordering Information

To request a quote or place an order, please provide the following information:

  • Product Type: BS 6346 PVC Insulation SWA Armored Power Cable

  • Rated Voltage: 0.6/1 (1.2) kV

  • Number of Cores: 1, 2, 3, 4, 5, 3+1, 4+1, or 3+2

  • Nominal Cross-Section: 1.5–630 mm²

  • Conductor Material: Copper or Aluminium

  • Conductor Shape: RE, CC, or SM

  • Armour Type: Aluminium or Galvanized Steel Wires

  • Outer Sheath: PVC Type ST2 or Type 9; special options available on request

  • Quantity: Total length in meters
