H05VV-F / H05VVH2-F German Standard Cable , 300/500V PVC Flexible Cord – VDE

Low Voltage Power Cables
Description

German Standard Industrial Cable H05VV-F / H05VVH2-F

Product Overview

The H05VV-F and H05VVH2-F are German standard PVC flexible cables designed for medium mechanical stress in damp and wet environments. They are suited for refrigerators, washing machines, spin dryers, and other appliances, as long as applicable equipment specifications are met. They are also suitable for cooking and heating apparatus, provided the cable does not come into direct contact with hot parts of the apparatus or any other heat source.

Further applications include fixed installation in furniture, partition walls, decorative covering, and in the hollow spaces of prefabricated building parts. These cables are not suitable for outdoor use, industrial applications (except clothing manufacture), or farming applications.

The maximum operating voltage in a single or three-phase system is Uo/U 318/550 volts. In a direct system, the maximum operating voltage is Uo/U 413/825 volts. The cables are manufactured to <HAR> CEI 20-20/5 / 20-35 (EN60332-1) / 20-52, with 0.5–2.5 mm² to BS6500, 4.0 mm² to BS7919, 6.0 mm² generally to BS7919, VDE0281, CENELEC HD21.5, and the CE Low Voltage Directive 73/23/EEC & 93/68/EEC. They are ROHS compliant.

Features & Benefits

  • Flexible PVC Construction: Bare copper fine wire conductor, stranded to DIN VDE 0295 cl. 5, BS 6360 cl. 5, IEC 60228 cl. 5 and HD 383.

  • PVC Core Insulation: PVC core insulation T12 to VDE-0281 Part 1.

  • PVC Outer Jacket: PVC outer jacket TM2 for durable mechanical and environmental protection.

  • Damp and Wet Environment Suitability: Designed for medium mechanical stress in damp and wet environments.

  • Appliance Ready: Suitable for refrigerators, washing machines, spin dryers, cooking and heating apparatus, subject to conditions.

  • Fixed Installation: Suitable for furniture, partition walls, decorative covering, and hollow spaces of prefabricated building parts.

  • Voltage Rating: 300/500 volts.

  • Test Voltage: 2000 volts.

  • Flame Retardant: Complies with IEC 60332.1.

  • Insulation Resistance: 20 MΩ x km.

  • Short Circuit Temperature: +160°C.

  • ROHS Compliant: Meets environmental and health requirements.

  • Standard Compliant: <HAR> CEI 20-20/5 / 20-35 (EN60332-1) / 20-52, BS6500, BS7919, VDE0281, CENELEC HD21.5.

Typical Applications

  • Refrigerators, washing machines, spin dryers, and other appliances

  • Cooking and heating apparatus, provided no direct contact with hot parts or heat sources

  • Fixed installation in furniture

  • Partition walls

  • Decorative covering

  • Hollow spaces of prefabricated building parts

  • Damp and wet environments with medium mechanical stress

Not suitable for: Outdoor use, industrial applications (except clothing manufacture), or farming applications.

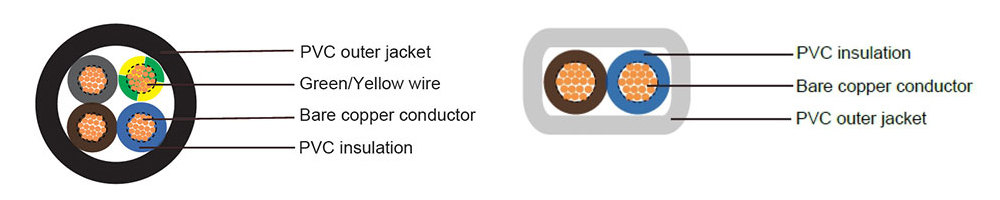

Construction

  • Conductor: Bare copper fine wire conductor

  • Stranding: DIN VDE 0295 cl. 5, BS 6360 cl. 5, IEC 60228 cl. 5 and HD 383

  • Insulation: PVC core insulation T12 to VDE-0281 Part 1

  • Colour Code: VDE-0293-308

  • Grounding: Green-yellow grounding (3 conductors and above)

  • Outer Jacket: PVC outer jacket TM2

  • Type Variants:

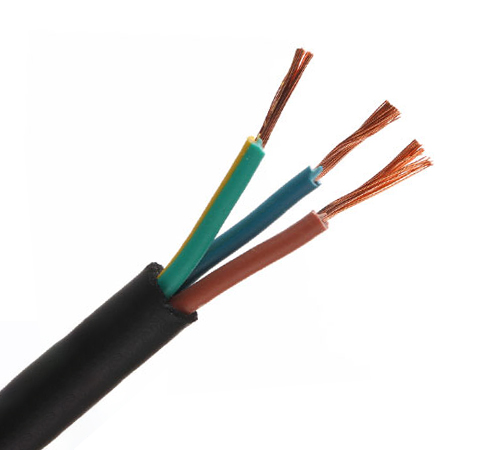

    • H05VV-F: Round flexible cable

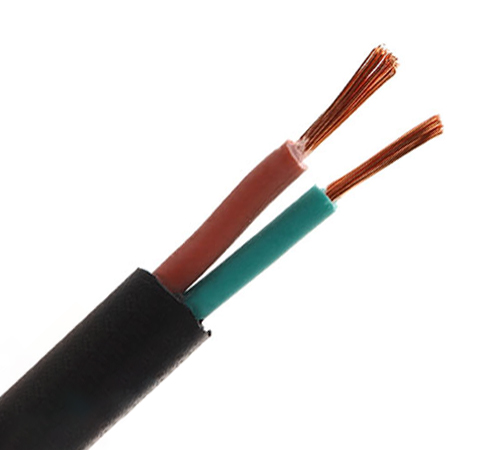

    • H05VVH2-F: Flat flexible cable

Technical Specifications

Electrical & Thermal Characteristics

Parameter Value
Working Voltage 300/500 volts
Test Voltage 2000 volts
Max. Operating Voltage – Single or Three-Phase System Uo/U 318/550 volts
Max. Operating Voltage – Direct System Uo/U 413/825 volts
Flexing Bending Radius 7.5 x Ø
Static Bending Radius 4 x Ø
Flexing Temperature -5°C to +70°C
Static Temperature -40°C to +70°C
Short Circuit Temperature +160°C
Flame Retardant IEC 60332.1
Insulation Resistance 20 MΩ x km

Parameter Table – H05VV-F (Round)

AWG No. of Cores x Nominal Cross Sectional Area (mm²) Nominal Thickness of Insulation (mm) Nominal Thickness of Sheath (mm) Nominal Overall Diameter (mm) Nominal Copper Weight (kg/km) Nominal Weight (kg/km)
18 (24/32) 2 x 0.75 0.6 0.8 6.4 14.4 57
18 (24/32) 3 x 0.75 0.6 0.8 6.8 21.6 68
18 (24/32) 4 x 0.75 0.6 0.8 7.4 29 84
18 (24/32) 5 x 0.75 0.6 0.9 8.5 36 106
17 (32/32) 2 x 1.00 0.6 0.8 6.8 19 65
17 (32/32) 3 x 1.00 0.6 0.8 7.2 29 79
17 (32/32) 4 x 1.00 0.6 0.9 8.0 38 101
17 (32/32) 5 x 1.00 0.6 0.9 8.8 48 123
16 (30/30) 2 x 1.50 0.7 0.8 7.6 29 87
16 (30/30) 3 x 1.50 0.7 0.9 8.2 43 111
16 (30/30) 4 x 1.50 0.7 1.0 9.2 58 142
16 (30/30) 5 x 1.50 0.7 1.1 10.5 72 176
14 (30/50) 2 x 2.50 0.8 1.0 9.2 48 134
14 (30/50) 3 x 2.50 0.8 1.1 10.1 72 169
14 (30/50) 4 x 2.50 0.8 1.1 11.2 96 211
14 (30/50) 5 x 2.50 0.8 1.2 12.4 120 262
12 (56/28) 3 x 4.00 0.8 1.2 11.3 115 233
12 (56/28) 4 x 4.00 0.8 1.2 12.5 154 292
12 (56/28) 5 x 4.00 0.8 1.4 13.7 192 369
10 (84/28) 3 x 6.00 0.8 1.1 13.1 181 328
10 (84/28) 4 x 6.00 0.8 1.3 13.9 230 490

Parameter Table – H05VVH2-F (Flat)

AWG No. of Cores x Nominal Cross Sectional Area (mm²) Nominal Thickness of Insulation (mm) Nominal Thickness of Sheath (mm) Nominal Overall Diameter (mm) Nominal Copper Weight (kg/km) Nominal Weight (kg/km)
18 (24/32) 2 x 0.75 0.6 0.8 4.2 x 6.8 14.4 48
17 (32/32) 2 x 1.00 0.6 0.8 4.4 x 7.2 19.2 57

Note: All values are nominal as provided in the source specification. Actual dimensions and weights may vary within standard manufacturing tolerances.

Standards & Compliance

  • <HAR> CEI 20-20/5 / 20-35 (EN60332-1) / 20-52

  • BS6500 for 0.5–2.5 mm²

  • BS7919 for 4.0 mm²

  • BS7919 generally for 6.0 mm²

  • VDE0281

  • CENELEC HD21.5

  • CE Low Voltage Directive 73/23/EEC & 93/68/EEC

  • ROHS Compliant

  • Flame Retardant: IEC 60332.1

  • Conductor Stranding: DIN VDE 0295 cl. 5, BS 6360 cl. 5, IEC 60228 cl. 5, HD 383

  • Insulation: PVC T12 to VDE-0281 Part 1

  • Outer Jacket: PVC TM2

  • Colour Code: VDE-0293-308

Ordering Information

To request a quote or place an order, please provide the following information:

  • Product Type: H05VV-F (Round) or H05VVH2-F (Flat)

  • Voltage Rating: 300/500V

  • Number of Cores and Cross-Section: e.g., 2 x 0.75 mm², 3 x 1.50 mm², 4 x 6.00 mm²

  • Conductor: Bare copper fine wire, Class 5

  • Insulation: PVC T12

  • Outer Jacket: PVC TM2

  • Quantity: Total length in meters
