German Standard Industrial Cable NYM-J / NYM-O
Product Overview
The NYM-J and NYM-O are German standard industrial cables suitable for industrial and home applications. They are designed for dry, moist, and wet open areas as well as under plaster, walling, and concrete. However, it is not recommended to lay the cable into compacted concrete. Outer application is permitted only in the case that the cable is not exposed to direct sunlight.
The cables feature solid or stranded plain copper conductors, PVC TI1 insulation, and a high flexible PVC outer jacket type TM1. They are manufactured to DIN VDE 0250, VDE 0482-332-1-2, DIN EN 60332-1-2 / IEC 60332-1, and comply with the CE Low Voltage Directive 73/23/EEC and 93/68/EEC. They are also ROHS compliant.
Features & Benefits
-
Versatile Installation: Suitable for dry, moist, and wet open areas, under plaster, walling, and concrete.
-
Solid or Stranded Copper: Plain copper conductor to DIN VDE 0295 cl. 1 or cl. 2, BS 6360 cl. 1 or cl. 2, and IEC 60228 cl. 1 or cl. 2.
-
PVC TI1 Insulation: PVC insulation TI1 to DIN VDE 0281 part 1.
-
High Flexible PVC Jacket: PVC outer jacket type TM1 according to DIN VDE 0281 part 1.
-
Flame Retardant: Complies with IEC 60332.1.
-
Voltage Rating: 300/500 volts.
-
Test Voltage: 2000 volts.
-
Insulation Resistance: >20 MΩ x km.
-
Temperature Range: Flexing: +5°C to +70°C; Fixed installation: -40°C to +70°C.
-
ROHS Compliant: Meets environmental and health requirements.
-
Standard Compliant: DIN VDE 0250, VDE 0482-332-1-2, DIN EN 60332-1-2 / IEC 60332-1.
Typical Applications
-
Industrial and home applications
-
Dry, moist, and wet open areas
-
Under plaster, walling, and concrete
-
Outer application (only where cable is not exposed to direct sunlight)
Limitations: Not recommended for laying into compacted concrete.

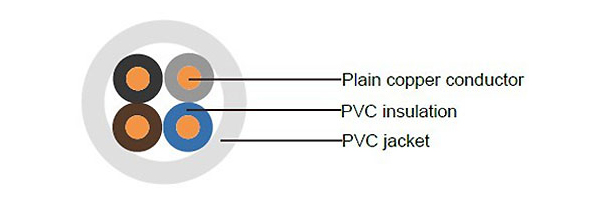

Construction
-
Conductor: Solid or stranded, plain copper conductor
-
Conductor Standard: DIN VDE 0295 cl. 1 or cl. 2, BS 6360 cl. 1 or cl. 2, and IEC 60228 cl. 1 or cl. 2
-
Insulation: PVC insulation TI1 to DIN VDE 0281 part 1
-
Colour Code: DIN VDE 0293-308
-
Cabling: Conductors stranded in layer
-
Outer Jacket: High flexible PVC outer jacket type TM1, according to DIN VDE 0281 part 1
-

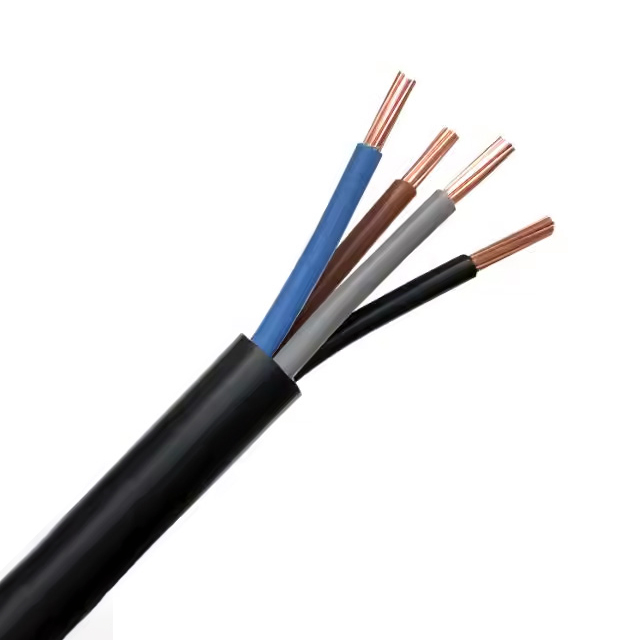

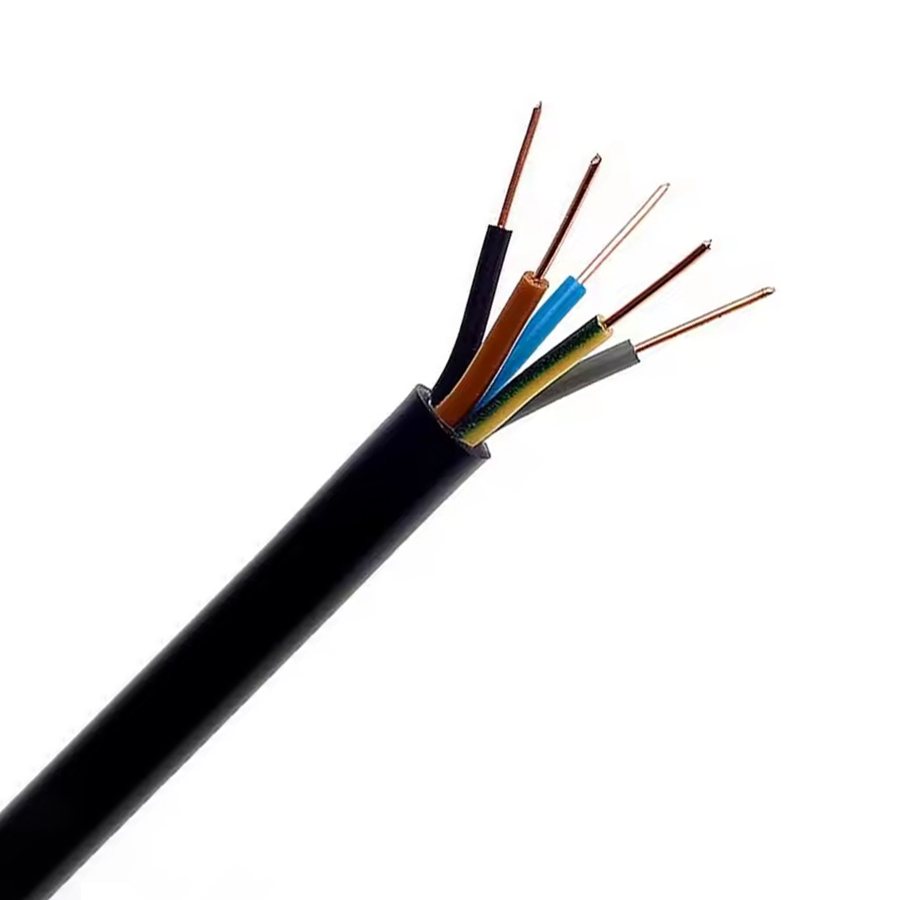

Type Variants: NYM-J (with green/yellow earth conductor); NYM-O (without earth conductor)
Technical Specifications
Electrical & Thermal Characteristics
| Parameter | Value |
|---|---|
| Working Voltage | 300/500 volts |
| Test Voltage | 2000 volts |
| Minimum Bending Radius | 4 x Ø |
| Flexing Temperature | +5°C to +70°C |
| Fixed Installation Temperature | -40°C to +70°C |
| Flame Retardant | IEC 60332.1 |
| Insulation Resistance | >20 MΩ x km |
Parameter Table – NYM-J / NYM-O
| AWG | No. of Cores x Nominal Cross Sectional Area (mm²) | Nominal Thickness of Insulation (mm) | Nominal Thickness of Sheath (mm) | Nominal Overall Diameter (mm) | Nominal Copper Weight (kg/km) | Nominal Weight (kg/km) |
|---|---|---|---|---|---|---|
| 16 (solid) | 1 x 1.5 | 0.6 | 1.4 | 5.4 | 14.4 | 40 |
| 16 (solid) | 2 x 1.5 | 0.6 | 1.4 | 8.7 | 29 | 170 |
| 16 (solid) | 3 x 1.5 | 0.6 | 1.4 | 9.1 | 43 | 135 |
| 16 (solid) | 4 x 1.5 | 0.6 | 1.4 | 9.8 | 58 | 160 |
| 16 (solid) | 5 x 1.5 | 0.6 | 1.4 | 10.3 | 72 | 190 |
| 16 (solid) | 7 x 1.5 | 0.6 | 1.4 | 11.5 | 101 | 235 |
| 16 (solid) | 10 x 1.5 | 0.6 | 1.4 | 13.8 | 144 | 330 |
| 16 (solid) | 12 x 1.5 | 0.6 | 1.4 | 14.4 | 173 | 405 |
| 14 (solid) | 1 x 2.5 | 0.7 | 1.4 | 6 | 24 | 70 |
| 14 (solid) | 3 x 2.5 | 0.7 | 1.4 | 10.4 | 72 | 190 |
| 14 (solid) | 4 x 2.5 | 0.7 | 1.4 | 11.3 | 96 | 230 |
| 14 (solid) | 5 x 2.5 | 0.7 | 1.4 | 12 | 120 | 270 |
| 14 (solid) | 7 x 2.5 | 0.7 | 1.6 | 13.2 | 168 | 342 |
| 12 (solid) | 1 x 4 | 0.8 | 1.6 | 6.6 | 38 | 80 |
| 12 (solid) | 3 x 4 | 0.8 | 1.6 | 12 | 115 | 258 |
| 12 (solid) | 4 x 4 | 0.8 | 1.6 | 13 | 154 | 330 |
| 12 (solid) | 5 x 4 | 0.8 | 1.6 | 14.5 | 192 | 410 |
| 10 (solid) | 1 x 6 | 0.8 | 1.6 | 7.2 | 58 | 105 |
| 10 (solid) | 3 x 6 | 0.8 | 1.6 | 13 | 173 | 320 |
| 10 (solid) | 4 x 6 | 0.8 | 1.6 | 15.1 | 230 | 460 |
| 10 (solid) | 5 x 6 | 0.8 | 1.6 | 16.1 | 288 | 540 |
| 8 (solid) | 1 x 10 | 1.0 | 1.6 | 8.4 | 96 | 155 |
| 8 (solid) | 4 x 10 | 1.0 | 1.6 | 17.6 | 384 | 680 |
| 8 (solid) | 5 x 10 | 1.0 | 1.6 | 19.2 | 480 | 850 |
| 6 (7/14) | 1 x 16 | 1.2 | 1.8 | 9.9 | 154 | 230 |
| 6 (7/14) | 4 x 16 | 1.2 | 1.8 | 21.3 | 614 | 1048 |
| 6 (7/14) | 5 x 16 | 1.2 | 1.8 | 23.4 | 768 | 1280 |
| 4 (7/12) | 1 x 25 | 1.4 | 2.0 | 12 | 240 | 325 |
| 4 (7/12) | 4 x 25 | 1.4 | 2.0 | 25.8 | 960 | 1649 |
| 4 (7/12) | 5 x 25 | 1.4 | 2.0 | 28.7 | 1200 | 1970 |
| 2 (7/10) | 4 x 35 | 1.4 | 2.0 | 28.5 | 1344 | 2000 |
Note: All values are nominal as provided in the source specification. Actual dimensions and weights may vary within standard manufacturing tolerances.
Standards & Compliance
-
DIN VDE 0250
-
VDE 0482-332-1-2
-
DIN EN 60332-1-2 / IEC 60332-1
-
CE Low Voltage Directive 73/23/EEC and 93/68/EEC
-
ROHS Compliant
-
Conductor Standard: DIN VDE 0295 cl. 1 or cl. 2, BS 6360 cl. 1 or cl. 2, IEC 60228 cl. 1 or cl. 2
-
Insulation: PVC TI1 to DIN VDE 0281 part 1
-
Outer Jacket: PVC TM1 to DIN VDE 0281 part 1
-
Colour Code: DIN VDE 0293-308
Ordering Information
To request a quote or place an order, please provide the following information:
-
Product Type: NYM-J (with earth conductor) or NYM-O (without earth conductor)
-
Voltage Rating: 300/500V
-
Number of Cores and Cross-Section: e.g., 3 x 1.5 mm², 5 x 2.5 mm², 4 x 25 mm²
-
Conductor: Solid or stranded plain copper, Class 1 or Class 2
-
Insulation: PVC TI1
-
Outer Jacket: PVC TM1
-
Quantity: Total length in meters
