H05V-R / H07V-R German Standard Industrial Cable , 300/500V & 450/750V – VDE

Low Voltage Power Cables
Description

German Standard Industrial Cable H05V-R / H07V-R

Product Overview

The H05V-R and H07V-R are German standard industrial cables preferably for installation indoors, in cable ducts and in industrial plants or switching stations, under ground installation. They can be used in switchboards and distributor boards or where a thicker strand of multi-wire is required. They are also found in electronic and electrical equipment and switchgear cabinets designed for export to a European country and for MRO replacement of European made equipment wire.

The cables are manufactured to <HAR> HD 21.3 S3, BS 6004, VDE-0281 Part-3, CEI 20-20/3, CEI 20-35 (EN60332-1), CEI 20-52, and comply with the CE Low Voltage Directive 73/23/EEC and 93/68/EEC. They are also ROHS compliant.

Features & Benefits

  • Stranded Bare Copper: Bare copper solid/strands conductor to VDE-0295 Class-2, IEC 60228 Cl-2.

  • PVC TI1 Insulation: Special PVC TI1 core insulation.

  • Flame Retardant: Complies with IEC 60332.1.

  • Voltage Ratings: 300/500V (H05V-R); 450/750V (H07V-R).

  • Test Voltage: 2000V (H05V-R); 2500V (H07V-R).

  • Insulation Resistance: 10 MΩ x km.

  • Short Circuit Temperature: +160°C.

  • ROHS Compliant: Meets environmental and health requirements.

  • Standard Compliant: <HAR> HD 21.3 S3, BS 6004, VDE-0281 Part-3, CEI 20-20/3, CEI 20-52.

Typical Applications

  • Indoor installation

  • Cable ducts

  • Industrial plants and switching stations

  • Underground installation

  • Switchboards and distributor boards

  • Applications requiring a thicker strand of multi-wire

  • Electronic and electrical equipment

  • Switchgear cabinets designed for export to European countries

  • MRO replacement of European made equipment wire

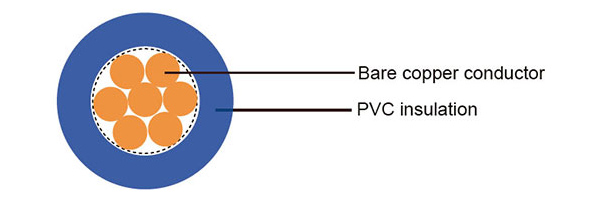

Construction

  • Conductor: Bare copper solid/strands

  • Stranding: VDE-0295 Class-2, IEC 60228 Cl-2

  • Insulation: Special PVC TI1 core insulation

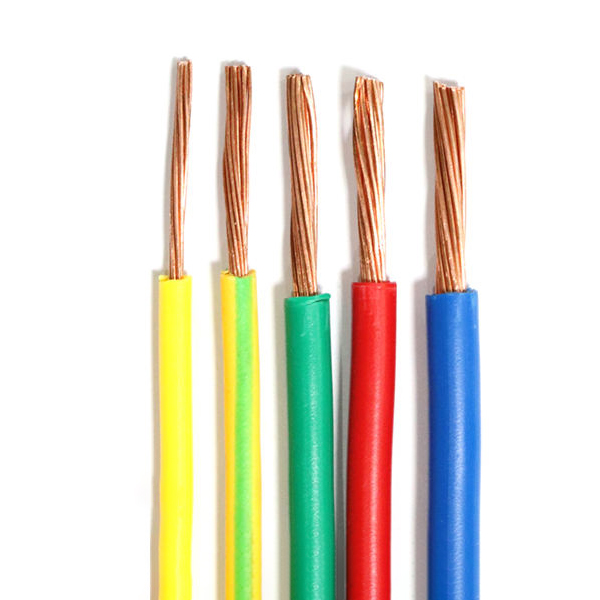

  • Core Colours: Cores to VDE-0293 colours on chart

Technical Specifications

Electrical & Thermal Characteristics

Parameter H05V-R H07V-R
Working Voltage 300/500 volts 450/750 volts
Test Voltage 2000 volts 2500 volts
Flexing Bending Radius 15 x Ø 15 x Ø
Static Bending Radius 15 x Ø 15 x Ø
Flexing Temperature -5°C to +70°C -5°C to +70°C
Static Temperature -30°C to +80°C -30°C to +80°C
Short Circuit Temperature +160°C +160°C
Flame Retardant IEC 60332.1 IEC 60332.1
Insulation Resistance 10 MΩ x km 10 MΩ x km

Parameter Table – H05V-R / H07V-R

AWG No. of Cores x Nominal Cross Sectional Area (mm²) Nominal Thickness of Insulation (mm) Nominal Overall Diameter (mm) Nominal Copper Weight (kg/km) Nominal Weight (kg/km)
H05V-R
20 (7/29) 1 x 0.5 0.6 2.2 4.8 9
18 (7/27) 1 x 0.75 0.6 2.4 7.2 12
17 (7/26) 1 x 1 0.6 2.6 9.6 15
H07V-R
16 (7/24) 1 x 1.5 0.7 3.0 14.4 23
14 (7/22) 1 x 2.5 0.8 3.6 24 35
12 (7/20) 1 x 4 0.8 4.2 39 51
10 (7/18) 1 x 6 0.8 4.7 58 71
8 (7/16) 1 x 10 1 6.1 96 120
6 (7/14) 1 x 16 1 7.2 154 170
4 (7/12) 1 x 25 1.2 8.4 240 260
2 (7/10) 1 x 35 1.2 9.5 336 350
1 (19/13) 1 x 50 1.4 11.3 480 480
2/0 (19/11) 1 x 70 1.4 12.6 672 680
3/0 (19/10) 1 x 95 1.6 14.7 912 930
4/0 (37/12) 1 x 120 1.6 16.2 1152 1160
300MCM (37/11) 1 x 150 1.8 18.1 1440 1430
350MCM (37/10) 1 x 185 2.0 20.2 1776 1780
500MCM (61/11) 1 x 240 2.2 22.9 2304 2360
1 x 300 2.4 24.5 – 2940
1 x 400 2.6 27.5 – 3740

Note: All values are nominal as provided in the source specification. Actual dimensions and weights may vary within standard manufacturing tolerances. Copper weight for 300 mm² and 400 mm² not provided in source.

Standards & Compliance

  • <HAR> HD 21.3 S3

  • BS 6004

  • VDE-0281 Part-3

  • CEI 20-20/3

  • CEI 20-35 (EN60332-1)

  • CEI 20-52

  • CE Low Voltage Directive 73/23/EEC and 93/68/EEC

  • ROHS Compliant

  • Flame Retardant: IEC 60332.1

  • Conductor Stranding: VDE-0295 Class-2, IEC 60228 Cl-2

Ordering Information

To request a quote or place an order, please provide the following information:

  • Product Type: H05V-R or H07V-R

  • Voltage Rating: 300/500V (H05V-R) or 450/750V (H07V-R)

  • Conductor Size: e.g., 1 x 0.5 mm², 1 x 1.5 mm², 1 x 50 mm², 1 x 240 mm²

  • Conductor: Bare copper, stranded Class 2

  • Insulation: Special PVC TI1

  • Quantity: Total length in meters
