PVC Insulated, 2 Cores Flat Cable, 450/750V
Product Overview
The PVC Insulated, 2 Cores Flat Cable is a 450/750V low voltage flat cable designed for general wiring in domestic, commercial, and industrial installations. It is suitable for unenclosed installation, enclosure in conduit, direct burial, or installation in underground ducts where not subject to mechanical damage. The cable is also suitable for lighting and applications not requiring an earth connection.
The cable features plain annealed copper conductors, PVC V90 insulation, and a PVC 3V90 sheath, with a maximum operating temperature of 90°C. It is manufactured to AS/NZS 5000.2, AS 1125, and AS 3808.
Key Features & Benefits
-
Flat Construction: 2 cores flat cable design for space-saving installation.
-
90°C Operating Temperature: Maximum operating temperature of 90°C.
-
Plain Annealed Copper: High-conductivity plain annealed copper conductor.
-
PVC V90 Insulation: Durable PVC V90 insulation.
-
PVC 3V90 Sheath: Polyvinylchloride compound PVC 3V90 outer sheath.
-
Versatile Installation: Suitable for unenclosed, conduit, direct burial, and underground duct installations.
-
Lighting Ready: Suitable for lighting and applications not requiring earth.
-
Standard Compliant: AS/NZS 5000.2, AS 1125, AS 3808.
-
Sheath Colour Options: White as standard; other colours available upon request.
Typical Applications
-
General wiring
-
Unenclosed installation
-
Enclosed in conduit
-
Buried direct or in underground ducts
-
Domestic, commercial, and industrial installations
-
Lighting applications
-
Applications not requiring an earth connection
Note: Suitable where not subject to mechanical damage.

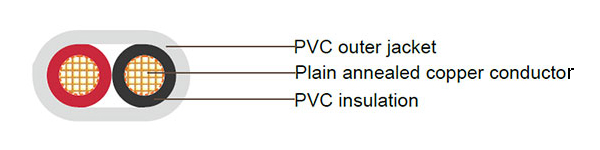

Construction Details
-
Conductor: Plain annealed copper
-
Maximum Operating Temperature: 90°C
-
Insulation: PVC V90
-
Insulation Colour: 2C cable: Red, Black
-
Sheath: Polyvinylchloride compound PVC 3V90
-
Sheath Colour: White (other colours available upon request)
Technical Specifications
Electrical & Thermal Characteristics
| Nominal Area (mm²) | Current Ratings – Unenclosed in Air (A) | Current Ratings – Surrounded by Thermal Insulation (A) | Current Ratings – Buried in Ducts (A) | Max. DC Resistance @ 20°C (Ohm/km) | Max. AC Resistance @ 75°C (Ohm/km) | Reactance (Ohm/km) | Single Phase Voltage Drop (mV/Am) |
|---|---|---|---|---|---|---|---|
| 1 | 16 | 8 | 19 | 18.1 | 27.0 | 0.119 | 54.0 |
| 1.5 | 21 | 10 | 24 | 13.6 | 17.3 | 0.111 | 34.6 |
| 2.5 | 30 | 15 | 34 | 7.41 | 9.45 | 0.102 | 18.9 |
| 4 | 39 | 19 | 44 | 4.61 | 5.88 | 0.102 | 11.8 |
| 6 | 50 | 25 | 56 | 3.08 | 3.93 | 0.0967 | 7.86 |
| 10 | 68 | 34 | 75 | 1.83 | 2.33 | 0.0906 | 4.68 |
| 16 | 91 | 46 | 97 | 1.15 | 1.47 | 0.0861 | 2.94 |
Cable Parameter
| Nom. Conductor Area (mm²) | Conductor No./OD | Nom. Insulation Thickness (mm) | Nom. Sheath Thickness (mm) | Nom. Overall Diameter – Min (mm) | Nom. Overall Diameter – Max (mm) | Approx. Mass (kg/km) |
|---|---|---|---|---|---|---|
| 1.0 | 1/1.13 | 0.6 | 0.9 | 6.5 x 4.1 | 6.9 x 4.4 | 50 |
| 1.5 | 7/0.50 | 0.6 | 0.9 | 7.2 x 4.5 | 7.6 x 4.8 | 65 |
| 2.5 | 7/0.67 | 0.7 | 1 | 8.7 x 5.4 | 9.2 x 5.7 | 105 |
| 4 | 7/0.85 | 0.8 | 1.1 | 10.3 x 6.3 | 10.9 x 6.6 | 145 |
| 6 | 7/1.04 | 1.0 | 1.1 | 11.5 x 6.8 | 12.0 x 7.2 | 195 |
| 10 | 7/1.35 | 1.0 | 1.2 | 14.1 x 8.3 | 14.7 x 8.7 | 295 |
| 16 | 7/1.70 | 1.0 | 1.3 | 16.4 x 9.5 | 17.1 x 10.0 | 435 |
Note: All values are nominal as provided in the source specification. Actual dimensions and weights may vary within standard manufacturing tolerances.
Standards & Compliance
-
AS/NZS 5000.2
-
AS 1125
-
AS 3808
Ordering Information
To request a quote or place an order, please provide the following information:
-
Product Type: PVC Insulated, 2 Cores Flat Cable
-
Voltage Rating: 450/750V
-
Conductor Size: e.g., 1.0 mm², 1.5 mm², 2.5 mm², 4 mm², 6 mm², 10 mm², 16 mm²
-
Conductor: Plain annealed copper
-
Insulation: PVC V90
-
Sheath: PVC 3V90, White (other colours on request)
-
Quantity: Total length in meters
