H05V2-K / H07V2-K German Standard Heat-Resistant Flexible Cable – 300/500V & 450/750V

Low Voltage Power Cables
Description

German Standard Industrial Cable H05V2-K / H07V2-K

Product Overview

The H05V2-K and H07V2-K are German standard heat-resistant flexible single-conductor hook-up wires designed for use in power current installation, switch cabinets, motors, and transformers subject to direct contact with high temperatures (e.g., varnishing machines and drying towers). They are also suitable for inside wiring of electrical equipment such as lighting and heating apparatus.

The cables feature fine bare copper strands, special heat-resistant PVC TI3 core insulation, and are manufactured to <HAR> HD 21.7 S2, CEI 20-20, CEI20-52, VDE-0281 Part-7. They comply with the CE Low Voltage Directive 73/23/EEC and 93/68/EEC and are ROHS compliant.

Features & Benefits

  • Heat-Resistant Construction: Special heat-resistant PVC TI3 core insulation to DIN VDE 0281 part 7.

  • Flexible Conductors: Fine bare copper strands to VDE-0295 Class-5, IEC 60228 Class-5, BS 6360 cl. 5, and HD 383.

  • High Temperature Range: Flexing: +5°C to +90°C; Static: -10°C to +105°C.

  • Flame Retardant: Complies with IEC 60332.1.

  • Voltage Ratings: 300/500V (H05V2-K); 450/750V (H07V2-K).

  • Test Voltage: 2000 volts.

  • Insulation Resistance: 20 MΩ x km.

  • ROHS Compliant: Meets environmental and health requirements.

  • Standard Compliant: <HAR> HD 21.7 S2, CEI 20-20, CEI20-52, VDE-0281 Part-7.

  • Core Colour Options: Cores to VDE-0293 colours.

Typical Applications

  • Power current installation

  • Switch cabinets

  • Motors and transformers subject to direct contact with high temperatures

  • Varnishing machines and drying towers

  • Inside wiring of electrical equipment such as lighting and heating apparatus

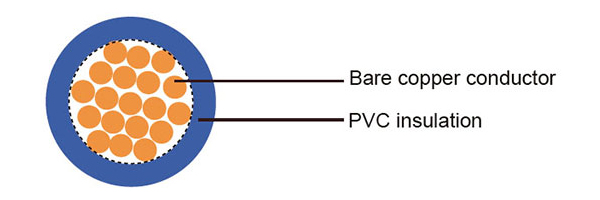

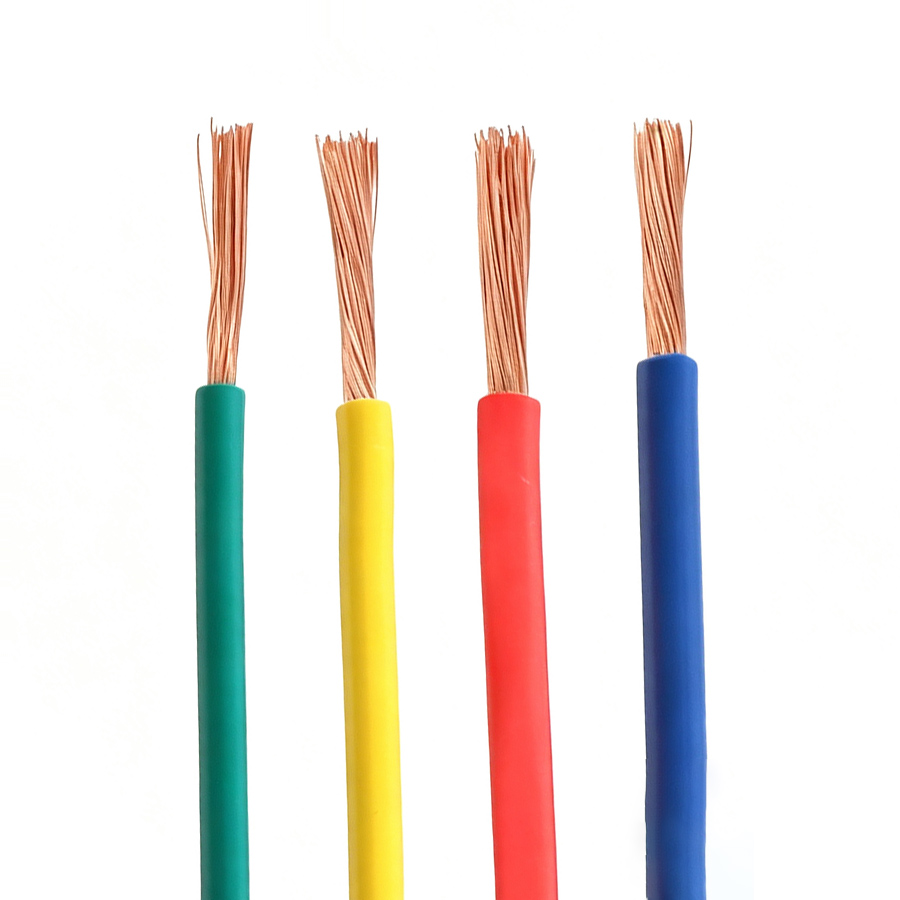

Construction

  • Conductor: Fine bare copper strands

  • Stranding: VDE-0295 Class-5, IEC 60228 Class-5, BS 6360 cl. 5, HD 383

  • Insulation: Special heat-resistant PVC TI3 core insulation to DIN VDE 0281 part 7

  • Core Colours: Cores to VDE-0293 colours

  • Type Range:

    • H05V2-K: 20, 18 & 17 AWG

    • H07V2-K: 16 AWG and larger

Technical Specifications

Electrical & Thermal Characteristics

Parameter H05V2-K H07V2-K
Working Voltage 300/500V 450/750V
Test Voltage 2000 volts 2000 volts
Flexing Bending Radius 10–15 x Ø 10–15 x Ø
Static Bending Radius 10–15 x Ø 10–15 x Ø
Flexing Temperature +5°C to +90°C +5°C to +90°C
Static Temperature -10°C to +105°C -10°C to +105°C
Flame Retardant IEC 60332.1 IEC 60332.1
Insulation Resistance 20 MΩ x km 20 MΩ x km

Parameter Table – H05V2-K

AWG No. of Cores x Nominal Cross Sectional Area (mm²) Nominal Thickness of Insulation (mm) Nominal Overall Diameter (mm) Nominal Copper Weight (kg/km) Nominal Weight (kg/km)
20 (16/32) 1 x 0.5 0.6 2.5 4.8 8.7
18 (24/32) 1 x 0.75 0.6 2.7 7.2 11.9
17 (32/32) 1 x 1 0.6 2.8 9.6 14.0

Parameter Table – H07V2-K

AWG No. of Cores x Nominal Cross Sectional Area (mm²) Nominal Thickness of Insulation (mm) Nominal Overall Diameter (mm) Nominal Copper Weight (kg/km) Nominal Weight (kg/km)
16 (30/30) 1 x 1.5 0.7 3.4 14.4 20
14 (50/30) 1 x 2.5 0.8 4.1 24 33.3
12 (56/28) 1 x 4 0.8 4.8 38 48.3
10 (84/28) 1 x 6 0.8 5.3 58 68.5
8 (80/26) 1 x 10 1.0 6.8 96 115
6 (128/26) 1 x 16 1.0 8.1 154 170
4 (200/26) 1 x 25 1.2 10.2 240 270
2 (280/26) 1 x 35 1.2 11.7 336 367
1 (400/26) 1 x 50 1.4 13.9 480 520
2/0 (356/24) 1 x 70 1.4 16 672 729
3/0 (485/24) 1 x 95 1.6 18.2 912 962
4/0 (614/24) 1 x 120 1.6 20.2 1115 1235
300 MCM (765/24) 1 x 150 1.8 22.5 1440 1523
350 MCM (944/24) 1 x 185 2.0 24.9 1776 1850
500 MCM (1225/24) 1 x 240 2.2 28.4 2304 2430

Note: All values are as provided in the source specification. Actual dimensions and weights may vary within standard manufacturing tolerances.

Standards & Compliance

  • <HAR> HD 21.7 S2

  • CEI 20-20

  • CEI20-52

  • VDE-0281 Part-7

  • CE Low Voltage Directive 73/23/EEC and 93/68/EEC

  • ROHS Compliant

  • Flame Retardant: IEC 60332.1

  • Conductor Stranding: VDE-0295 Class-5, IEC 60228 Class-5, BS 6360 cl. 5, HD 383

  • Insulation: Special heat-resistant PVC TI3 to DIN VDE 0281 part 7

  • Core Colours: VDE-0293 colours

Ordering Information

To request a quote or place an order, please provide the following information:

  • Product Type: H05V2-K or H07V2-K

  • Voltage Rating: 300/500V (H05V2-K) or 450/750V (H07V2-K)

  • Conductor Size: e.g., 1 x 0.5 mm², 1 x 1.5 mm², 1 x 50 mm², 1 x 240 mm²

  • Conductor: Fine bare copper strands, Class 5

  • Insulation: Special heat-resistant PVC TI3

  • Quantity: Total length in meters
