RG6 Coax Cable – 75 Ohm Coaxial Cable for CATV – 18AWG, Foam Polyethylene, Dual Shield

Communication Cables
Description

Product Overview

RG6 Coaxial Cables can be used in CATV applications. They provide excellent signal transmission quality with high shielding effectiveness, suitable for cable television, satellite, and broadband installations.

Technical Data:

  • Temperature range:

    • During installation: +5°C up to +70°C

    • Fixed installed: -30°C up to +70°C

  • Nominal voltage: 300V

  • Minimum inner bending radius: 4D

Specifications

Property Details
Voltage Level Low Voltage (300V)
LSZH Option ✓ (LSZH jacket available on request)
Nominal Impedance 75 Ohm
Application CATV

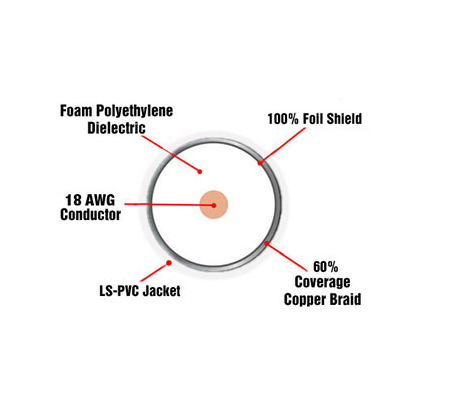

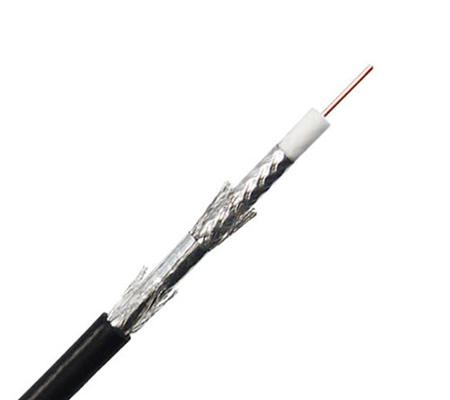

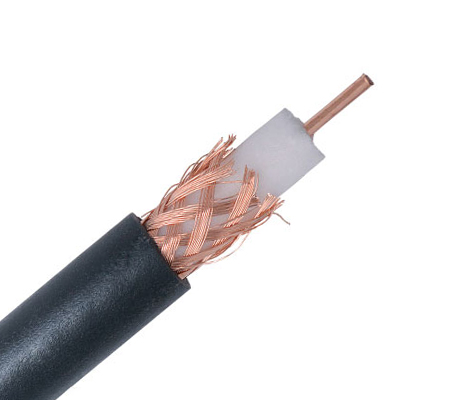

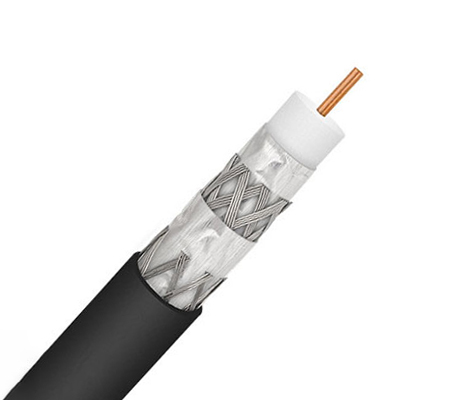

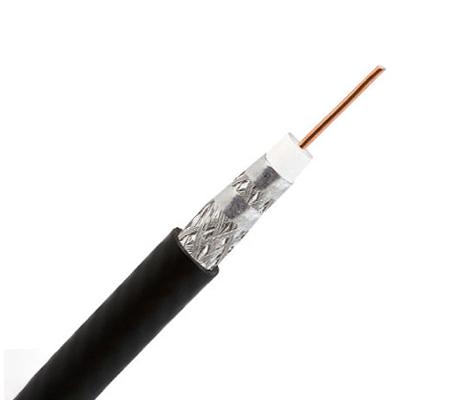

Construction

  1. Conductor: Bare Copper Clad Steel OR Bare Copper – 18AWG (solid)

  2. Insulation: Foam Polyethylene

  3. Shielding: Aluminum / Polyester plus Tinned Copper Braid (Dual Shield). Copper wire braid also available.

  4. Jacket: PVC (LSZH jacket available on request)

  5. Jacket Color: Black (other colors available on request)

Technical Parameters – Datasheet

Conductor Stranding Nom. Dia. of Cond. (in) Dielectric (in) Nom. O.D. (in) Nom. Imp. (Ohm) Nom. Cap. (pF/ft) Approx. LBS/MFT
Solid 0.04 0.18 0.269 75 17 30
