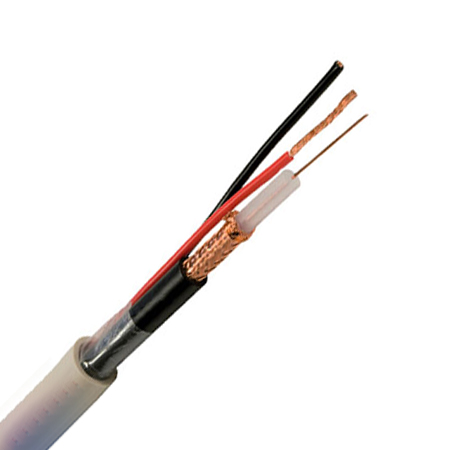

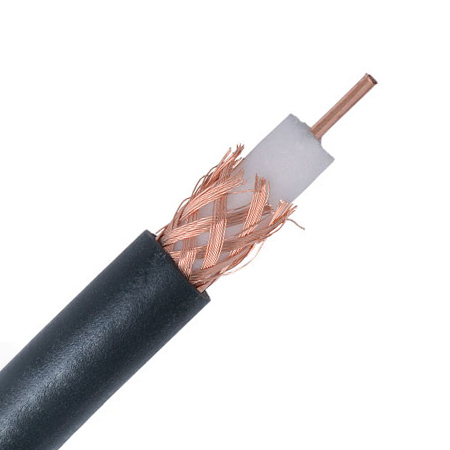

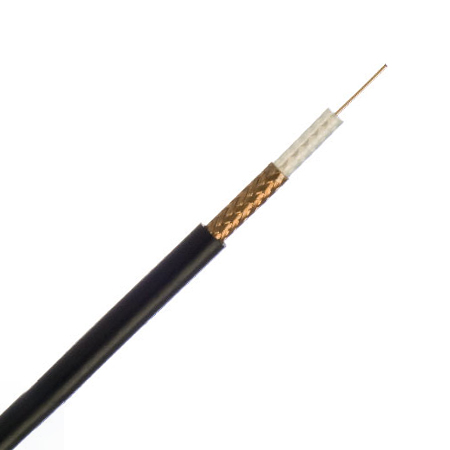

Product Overview
RG59 Coaxial Cables can be used in CATV, Audio/Visual, and Radio Frequency applications. They offer reliable signal transmission with good shielding performance, suitable for closed-circuit television (CCTV), satellite, and other low-frequency video installations.
Technical Data:
-
Temperature range:
-
During installation: +5°C up to +70°C
-
Fixed installed: -30°C up to +70°C
-
-
Nominal voltage: 30V
-
Minimum inner bending radius: 4D
Specifications
| Property | Details |
|---|---|
| Voltage Level | Low Voltage (30V) |
| Working Temperature | 70°C |
| LSZH Option | ✓ (LSZH jacket available on request) |
| Nominal Impedance | 75 Ohm |
| Application | CATV, Audio/Video, RF |
Construction
-
Conductor: Bare Copper Clad Steel OR Bare Copper – 20AWG (solid)
-
Insulation: Foam Polyethylene
-

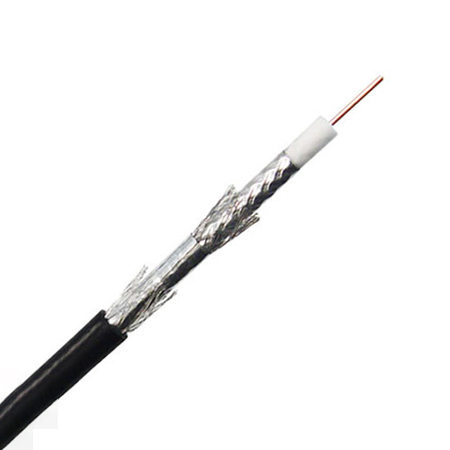

Shielding: Aluminum / Polyester plus Tinned Copper Braid (Dual Shield). Copper wire braid also available.
-
Jacket: PVC (LSZH jacket available on request)
-
Jacket Color: Black (other colours available on request)
Technical Parameters – Datasheet
| Conductor Stranding | Nom. Dia. of Cond. (in) | Dielectric (in) | Nom. O.D. (in) | Nom. Imp. (Ohm) | Nom. Cap. (pF/ft) | Approx. LBS/MFT |
|---|---|---|---|---|---|---|
| Solid | 0.032 | 0.145 | 0.233 | 75 | 22 | 31 |
