Single Core XLPE Insulated PVC Sheathed Unarmoured Cable – 0.6/1kV Power Cable

Low Voltage Power Cables
Description

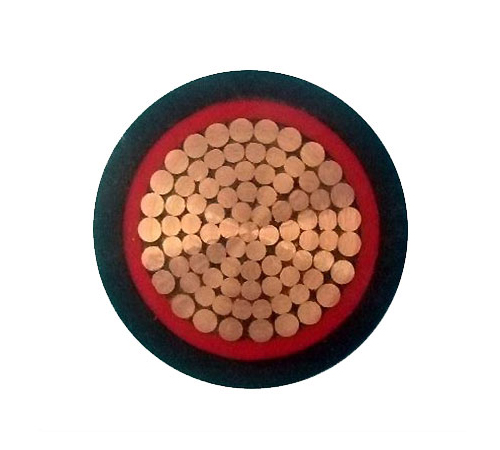

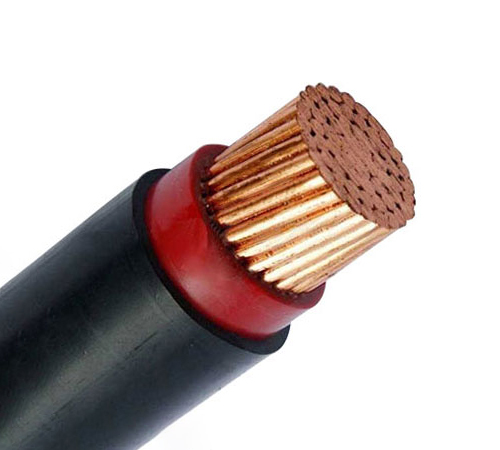

Single Core XLPE Insulated, PVC Sheathed Unarmoured Cable, 0.6/1kV

Product Overview

These single core cables are designed for power distribution in urban networks, industrial plants, and energy distribution systems. They are suitable for mains, submains, and subcircuits in unenclosed installations, enclosed in conduit, buried direct, or installed in underground ducts for buildings and industrial plants where mechanical damage is not a concern. The compact construction makes them ideal for applications where space is limited.

Standards Compliance:

  • AS/NZS 5000.1

  • AS/NZS 3008

  • AS/NZS 1125

  • IEC 60502-1

Applications

These cables are used for outdoor and indoor installations in damp and wet applications. They are normally used for:

  • Power distribution in urban networks

  • Industrial plants and energy distribution

  • Mains, submains, and subcircuits

  • Installations unenclosed, enclosed in conduit, buried direct, or in underground ducts

  • Buildings and industrial plants where not subject to mechanical damage

  • Applications where space is at a premium

Specifications

Feature Description
Voltage Rating Low Voltage (0.6/1kV)
Conductor Aluminum / Plain annealed copper
Insulation XLPE X-90
Insulation Colour Black (other colours available upon request)
Sheath Polyvinylchloride compound PVC 5V-90
Sheath Colour Black (other colours available upon request)

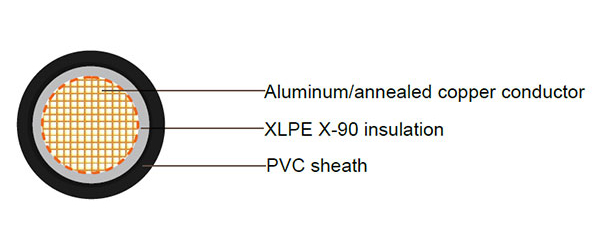

Construction

  1. Conductor: Aluminum or plain annealed copper

  2. Insulation: XLPE X-90

  3. Sheath: PVC 5V-90

Technical Parameters

Table 1
CONDUCTOR CURRENT RATINGS ELECTRICAL CHARACTERISTICS
NOMINAL AREA MM2 IN CONDUIT IN AIR
A		 BURIED IN DUCTS A IN CONDUIT IN AIR
A		 BURIED IN DUCTS A MAXIMUM DC RESISTANCE @20°C OHM/KM MAXIMUM AC RESISTANCE @90°C OHM/KM REACTANCE (TREFOIL) OHM/KM 3 PHASE VOLTAGE DROP MV/A
Aluminum
16 70 74 74 86 1.91 2.45 0.106 4.25
25 99 96 100 112 1.20 1.54 0.102 2.67
35 116 118 121 134 0.868 1.11 0.0982 1.94
50 138 139 149 161 0.641 0.822 0.0924 1.43
70 176 177 193 198 0.443 0.568 0.0893 0.997
95 215 209 237 241 0.320 0.411 0.0868 0.727
120 253 241 281 278 0.253 0.325 0.0844 0.582
150 286 273 319 310 0.206 0.265 0.0844 0.482
185 330 310 374 358 0.164 0.212 0.0835 0.394
240 396 369 440 428 0.125 0.162 0.0818 0.314
300 457 428 - 482 0.100 0.130 0.0809 0.266
400 534 487 - 567 0.0778 0.103 0.0802 0.226
500 616 578 - 653 0.0605 0.0813 0.0796 0.197
630 726 663 - 770 0.0469 0.0649 0.0787 0.177
Copper
16 86 95 95 112 1.15 1.47 0.106 2.550
25 121 123 127 144 0.727 0.927 0.102 1.620
35 138 150 160 171 0.524 0.668 0.098 1.170
50 171 182 193 209 0.387 0.494 0.092 0.872
70 209 225 242 257 0.268 0.342 0.089 0.615
95 253 268 286 310 0.193 0.247 0.087 0.457
120 297 310 341 358 0.153 0.197 0.084 0.373
150 341 353 385 401 0.124 0.160 0.084 0.316
185 391 401 440 465 0.099 0.129 0.084 0.269
240 462 471 523 546 0.075 0.099 0.082 0.227
300 534 546 - 621 0.060 0.080 0.081 0.202
400 616 621 - 717 0.047 0.065 0.080 0.183
500 715 717 - 813 0.037 0.053 0.080 0.170
630 836 813 - 952 0.028 0.043 0.079 0.159

Table 2

NOM. CONDUCTOR AREA MM2 　MAIN CONDUCTOR TYPE NOM. INSULATION THICKNESS MM NOM. SHEATH THICKNESS MM NOM. OVERALL DIAMETER MM APPROX. MASS KG/KM
Alumductor
16 7/1.70 circular 0.7 1.4 9.4 100
25 7strands compacted 0.9 1.4 11.3 160
35 19strands compacted 0.9 1.4 12.5 210
50 19strands compacted 1.0 1.4 13.1 260
70 19strands compacted 1.1 1.4 15.0 330
95 19strands compacted 1.1 1.5 17.0 420
120 19strands compacted 1.2 1.5 18.6 510
150 19strands compacted 1.4 1.6 20.7 640
185 36strands compacted 1.6 1.6 22.7 780
240 36strands compacted 1.7 1.7 25.5 990
300 37strands compacted 1.8 1.8 28.1 1220
400 60strands compacted 2.0 1.9 31.8 1600
500 60strands compacted 2.2 2 35.4 2000
630 60strands compacted 2.4 2.2 39.6 2600
Copper Conductor
16 7/1.70 circular 0.7 1.4 9.4 230
25 7/2.14 circular 0.9 1.4 11.3 320
35 19/1.53 circular 0.9 1.4 12.5 425
50 19strands compacted 1.0 1.4 13.1 550
70 19strands compacted 1.1 1.4 15.0 760
95 19strands compacted 1.1 1.5 16.8 1040
120 19strands compacted 1.2 1.5 18.6 1305
150 19strands compacted 1.4 1.6 20.6 1585
185 36strands compacted 1.6 1.6 22.7 1980
240 36strands compacted 1.7 1.7 25.6 2610
300 37strands compacted 1.8 1.8 28.4 3340
400 60strands compacted 2.0 1.9 31.7 4245
500 60strands compacted 2.2 2.0 35.4 5500
630 91strands compacted 2.4 2.2 42.4 7220
