3.6/6kV to 18/30kV R-(N)TSCGEWÖU Medium Voltage Reeling Cable – VDE 0250 Part 813 – Open-Cast Mining Excavator Cable

Machinery & Equipment Mining Cables
Description

Product Overview

The R-(N)TSCGEWÖU Medium Voltage Reeling Cable is a heavy-duty power cable engineered for the most demanding material handling applications in open-cast mining and heavy industrial environments. Designed for use with mono-spiral and cylindrical reeling systems, this cable provides reliable power transmission to large mobile machinery such as excavators, dumpers, and crushers. Its sophisticated construction, featuring semi-conductive screens, an anti-torsion braid, and robust synthetic sheathing, ensures exceptional performance under continuous flexing, high mechanical stress, and harsh environmental conditions.

Key Features & Benefits

  • Engineered for Extreme Reeling Applications: Specifically designed for high mechanical stresses associated with continuous spooling and unspooling on mono-spiral and cylindrical reels.

  • Superior Mechanical Durability: Excellent resistance to tearing, impact, and abrasion ensures long service life in rugged mining environments.

  • Advanced Anti-Torsion Design: Integrated polyamide braid between sheath layers provides protection against torsional forces during reeling operations.

  • Comprehensive Environmental Resistance: Formulated to withstand UV radiation, sunlight, ozone, and oil exposure. Flame retardant for enhanced operational safety.

  • Wide Temperature Range: Suitable for continuous operation from -25°C to +90°C, with fixed installation capability down to -40°C.

  • Clear Identification: Features embossed marking for easy cable identification and traceability throughout its service life.

  • Full Screening for MV Applications: Conductor and insulation screens with controlled resistivity ensure safe and reliable medium voltage performance.

Specifications

Parameter Details
Cable Type R-(N)TSCGEWÖU Medium Voltage Reeling Cable
Voltage Rating 3.6/6 kV to 18/30 kV
Conductor Annealed flexible stranded tin-coated or bare copper, Class 5 to IEC 60228 / HD 383
Insulation Ethylene-Propylene Rubber (EPR) type 3GI3 to DIN VDE 0207 part 20
Conductor Screen Semi-conductive layer
Insulation Screen Semi-conductive layer (max. resistivity: 200 Ω x m)
Inner Sheath Synthetic thermosetting compound type 5GM3 to DIN VDE 0207 part 21
Anti-Torsion Braid Braid of polyamide threads between inner and outer sheath layers
Outer Sheath Synthetic thermosetting compound type 5GM5 or 5GM3 to DIN VDE 0207 part 21
Outer Jacket Colour Red (other colours available upon request)
Temperature Range Operation: -25°C to +90°C
Fixed Installation: -40°C (minimum)
Key Characteristics Cold resistant, UV resistant, oil resistant, flame retardant, excellent tear/impact/abrasion resistance
Standards DIN VDE 0250 part 813
Standard Marking HT Cables R-(N)TSCGEWÖU (Size) (Voltage) (Year)

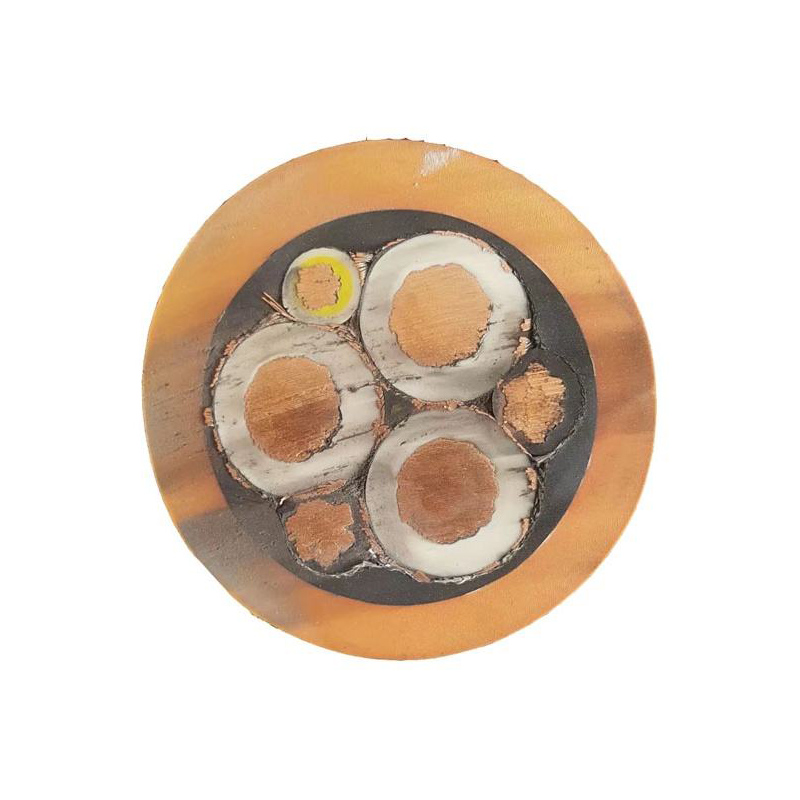

Construction

  1. Conductor: Annealed flexible stranded tin-coated or bare copper, Class 5 (IEC 60228 / HD 383).

  2. Conductor Screen: Semi-conductive layer applied over conductor.

  3. Separator (if needed): Suitable tape separator between conductor and insulation.

  4. Insulation: Ethylene-Propylene Rubber (EPR) type 3GI3 to DIN VDE 0207 part 20.

  5. Insulation Screen: Semi-conductive layer (max. resistivity: 200 Ω x m).

  6. Inner Sheath: Synthetic thermosetting compound type 5GM3 to DIN VDE 0207 part 21.

  7. Anti-Torsion Braid: Braid of polyamide threads between inner and outer sheath layers for torsional protection.

  8. Outer Sheath: Synthetic thermosetting compound type 5GM5 or 5GM3 to DIN VDE 0207 part 21.

  9. Outer Jacket Colour: Red (standard; other colours available).

Standards Compliance

This cable is designed, manufactured, and tested in accordance with:

  • DIN VDE 0250 part 813 – VDE specification for heavy-duty reeling cables for mining applications

  • IEC 60228 / HD 383 – Conductors of insulated cables (Class 5 flexibility)

  • DIN VDE 0207 part 20 & 21 – Insulating and sheathing materials for cables

Typical Applications

  • Power supply connection for large material handling machines in open-cast mines:

    • Bucket-wheel excavators

    • Spreaders and stackers

    • Large dumpers and haul trucks

    • Mobile crushers and conveyors

  • Suitable for use with mono-spiral and cylindrical reeling systems.

  • Heavy industrial applications requiring a flexible, high-voltage cable capable of continuous reeling and exposure to harsh elements.

  • Outdoor installations requiring UV, ozone, and oil resistance.
