Product Overview
Electrically driven machines and movable electric apparatus in hazardous areas.
-
For small pumps, fans, drills: 2.5 mm²
-
For shuttle cars: 16 mm²
-
Types 16, 25 mm² suitable for reeling.
Specifications
| Parameter | Value |
|---|---|
| Voltage Level | Low Voltage |
| UV Resistance | Yes |
| Working Temperature | 90°C |
| Cold Resistant | -40°C |

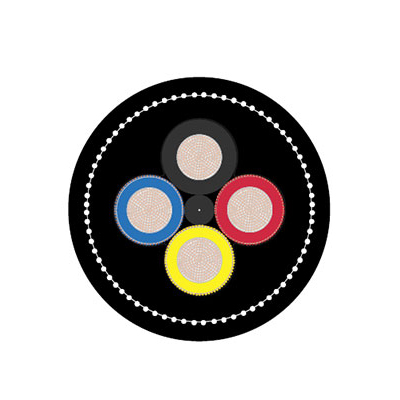

Construction
-
Conductor:
Flexible Class 5, complying with SANS 1411-1, made from tinned annealed copper wires, left-hand lay. -
Insulation:
Ethylene propylene thermosetting compound, type RD 3, complying with SANS 1411-3. -
Core Assembly:
Three tinned copper/nylon braid screened power cores and one unscreened pilot core, laid up with right-hand lay around a rubber (RD1) filler centre. -
Inner Sheath:
Poly-chloroprene thermosetting compound, type RS 6, complying with SANS 1411-3. -
Reinforcement:
An open nylon braid consisting of a minimum of 16 nylon strings. -
Outer Sheath:
Poly-chloroprene thermosetting compound, type RS 6, complying with SANS 1411-3.
Inner and outer sheaths are bonded to provide proper torsional protection. Colour: Black.
