Product Overview
The CHEFP/SA is a screened marine communication cable designed for reliable performance in demanding environmental conditions. It features EPR insulation for electrical stability, a durable PCP (Polychloroprene) outer sheath, and an integral metallic screen. This construction provides an effective balance of environmental resistance, EMI protection, and flame retardancy, making it a robust choice for general marine, offshore, and industrial communication and control circuits.
Key Features & Benefits
-
Durable Environmental Protection: The PCP (Polychloroprene) sheath (F) offers excellent resistance to oils, chemicals, abrasion, weathering, and sunlight, providing long-term durability in exposed or harsh industrial and maritime settings.
-
Effective EMI/RFI Shielding: The tinned copper braid or Alu/Polyester tape screen (P) protects sensitive telecommunication and instrumentation signals from electromagnetic interference, ensuring clear and reliable data transmission.
-
Flame Retardant: Complies with IEC 60332 flame retardancy standards for both single (IEC 60332-1) and bunched (IEC 60332-3-22) cable installations, enhancing safety.
-
Robust & Reliable: EPR insulation ensures stable electrical performance and thermal resistance up to 90°C, supporting the cable's use in a wide range of operational temperatures.
Technical Specifications
-
Rated Voltage: 150/250V
-
Maximum Continuous Conductor Temperature: 90°C
-
Available Conductor Cross-Sections: 0.5 mm², 0.75 mm², 1.0 mm², 1.5 mm², 2.5 mm²
-
Core Configuration: Available from 1 to 37 pairs.
-
Sheath Color: Standard Black (other colors available on request).

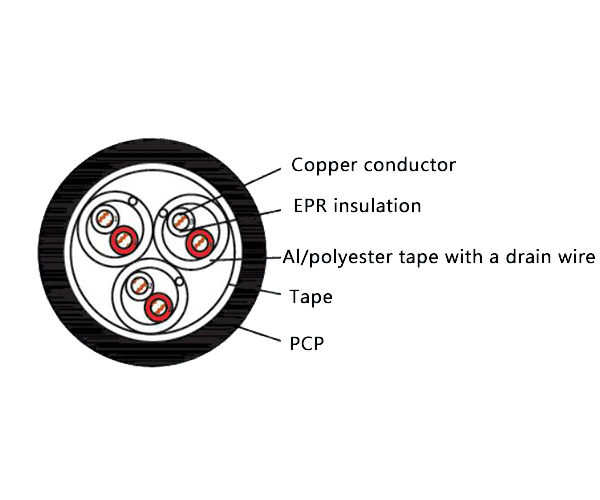

Construction Details
| Item | Code | Material / Description |
|---|---|---|
| Series Code | CH | Marine & Offshore Symmetrical Communication Cable |
| Conductor | / | Tinned / Plain Stranded, Annealed Copper Wire |
| Insulation | E | EPR (Ethylene Propylene Rubber) |
| Sheath | F | PCP (Polychloroprene) |
| Screen | P | Tinned Copper Wire Braid, or Alu/Polyester Tape + Copper Drain Wire |
| Flammability | SA | Bunched Cables Flame Retardant |
Standards & Compliance
This cable is manufactured in full compliance with the following international standards:
-
General Design: IEC 60092-350, IEC 60092-376
-
Conductor: IEC 60228
-
Insulation & Sheath: IEC 60092-360
-
Flame Retardant: IEC 60332-1 (Single), IEC 60332-3-22 (Bunched)
-
Low Smoke Emission: IEC 61034
-
Note on Halogens: This cable contains PCP and is not halogen-free per IEC 60754.
Applications
This screened cable with a tough PCP sheath is suitable for various applications, including:
-
Marine & Offshore: Telecommunication, instrumentation, and control systems on ships and offshore platforms, particularly in areas exposed to weather, oils, or mechanical wear such as decks, machinery spaces, and external conduits.
-
Industrial: Data transmission and process control circuits in demanding environments like mining operations, chemical plants, steelworks, and power generation facilities where cables require protection against oils, chemicals, and physical abrasion.
