Product Overview
The CHEPJP85/SC is a highly flexible and safety-oriented Low Smoke Halogen Free (LSHF) marine communication cable. It features a flexible tinned copper wire braid armor, a dedicated metallic screen, and is protected by a durable dual-layer Cross-linked Polyolefin (SHF2) sheath. This combination provides an exceptional balance of EMI shielding, mechanical flexibility, and the highest fire safety standards (IEC 60754, 61034), making it ideal for dynamic or tight-space installations where fire safety is non-negotiable.
Key Features & Benefits
-
Optimal Flexibility & Safety: The tinned copper wire braid armor (8) offers excellent mechanical protection while maintaining superior flexibility compared to steel armor, facilitating easier installation in complex routes. Combined with full LSHF (SC) compliance, it ensures safety without sacrificing ease of handling.
-
Superior EMI/RFI Shielding: Utilizes a dual-shielding system: a primary tinned copper braid or foil screen (P) for signal integrity, backed by the conductive copper braid armor, providing outstanding protection against electromagnetic and radio frequency interference.
-
Maximum Durability & LSHF Integrity: The unique dual-layer SHF2 sheath (PJ inner & 5 outer) provides exceptional resistance to abrasion, chemicals, oil, and weathering, while guaranteeing zero halogen emission and low smoke density in case of fire.
-
Comprehensive Protection: Designed for applications requiring a flexible, shielded cable that also meets the strictest fire safety regulations for confined or high-occupancy spaces.
Technical Specifications
-
Rated Voltage: 150/250V
-
Maximum Continuous Conductor Temperature: 90°C
-
Available Conductor Cross-Sections: 0.5 mm², 0.75 mm², 1.0 mm², 1.5 mm², 2.5 mm²
-
Core Configuration: Available from 1 to 37 pairs.
-
Outer Sheath Color: Standard Black (other colors available on request).

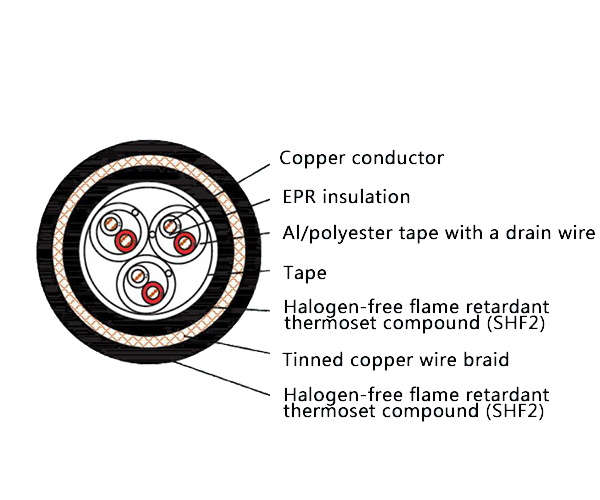

Construction Details
| Item | Code | Material / Description |
|---|---|---|
| Series Code | CH | Marine & Offshore Symmetrical Communication Cable |
| Conductor | / | Tinned / Plain Stranded, Annealed Copper Wire |
| Insulation | E | EPR (Ethylene Propylene Rubber) |
| Inner Sheath | PJ | Cross-linked Polyolefin (SHF2) |
| Screen | P | Tinned Copper Wire Braid, or Alu/Polyester Tape + Copper Drain Wire |
| Armor | 8 | Tinned / Plain Copper Wire Braided |
| Outer Sheath | 5 | Cross-linked Polyolefin (SHF2) |
| Flammability | SC | Halogen Free Low Smoke Flame Retardant |
Standards & Compliance
This cable is manufactured in full compliance with the following international standards:
-
General Design: IEC 60092-350, IEC 60092-376
-
Conductor: IEC 60228
-
Insulation & Sheath: IEC 60092-360
-
Flame Retardant: IEC 60332-1 (Single), IEC 60332-3-22 (Bunched)
-
Halogen Free: IEC 60754
-
Low Smoke Emission: IEC 61034
Applications
This flexible, shielded, and safety-compliant cable is perfect for:
-
Marine & Offshore: Instrumentation, control systems, and communications on ships and platforms where cables need to be routed around tight corners, into moving equipment, or within control cabinets, all while adhering to stringent LSHF safety codes for engine rooms and accommodation areas.
-
Industrial: Sensitive data acquisition, factory automation, and process control systems in power generation, chemical plants, and manufacturing facilities that require flexible, EMI-shielded cabling with mandatory low smoke, zero halogen properties.
