Product Overview
The CHEPJ80/NC is a specialized Fire Resistant marine communication cable designed for critical circuits requiring both fire integrity and electromagnetic shielding. It features a Mica/EPR insulation system certified to IEC 60331, coupled with Low Smoke Halogen Free (LSHF) properties for enhanced safety. The key distinguishing feature of this version is its Uni-Sheath Construction with an exposed Tinned Copper Wire Braid Armor, making it a lighter and more flexible solution for applications where an outer sheath is not mandated but fire resistance and EMI protection are essential.
Key Features & Benefits
-
Certified Fire Resistance: Complies with IEC 60331, ensuring circuit integrity and continued operation during a fire emergency.
-
Comprehensive Safety: Combines Halogen-Free (IEC 60754) and Low Smoke (IEC 61034) properties with Flame Retardancy (IEC 60332) for maximum personnel and asset protection.
-
Effective EMI Shielding: The outer Tinned Copper Wire Braid Armor provides excellent protection against electromagnetic interference, crucial for sensitive communication and control signals.
-
Optimized & Flexible Design: The Uni-Sheath Construction (without a separate outer sheath over the armor) results in a lighter, more flexible, and easier-to-install cable, ideal for confined spaces.
-
Durable Core Construction: Utilizes Mica glass tape with EPR insulation and a Cross-linked Polyolefin (SHF2) inner sheath to maintain performance in harsh marine and industrial environments.
Technical Specifications
-
Rated Voltage: 150/250V
-
Maximum Continuous Conductor Temperature: 90°C
-
Available Conductor Cross-Sections: 0.5 mm², 0.75 mm², 1.0 mm², 1.5 mm², 2.5 mm²
-
Core Configuration: Available from 1 to 37 pairs.

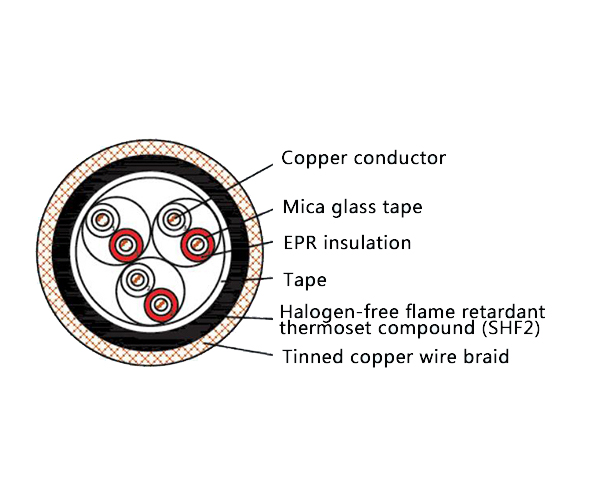

Construction Details
| Item | Code | Material / Description |
|---|---|---|
| Series Code | CH | Marine & Offshore Symmetrical Communication Cable |
| Conductor | / | Tinned / Plain Stranded, Annealed Copper Wire |
| Insulation | E | Mica Glass Tape + Ethylene Propylene Rubber (EPR) |
| Inner Sheath | PJ | Cross-linked Polyolefin (SHF2) |
| Armor | 8 | Tinned / Plain Copper Wire Braided |
| Outer Sheath | 0 | Without Outer Sheath (Exposed Braid Armor) |
| Flammability | NC | Halogen Free Low Smoke Fire Resistant |
Standards & Compliance
This cable is manufactured in full compliance with the following international standards:
-
General Design: IEC 60092-350, IEC 60092-376
-
Conductor: IEC 60228
-
Insulation & Sheath: IEC 60092-360
-
Fire Resistant: IEC 60331
-
Flame Retardant: IEC 60332-1, IEC 60332-3-22
-
Halogen Free: IEC 60754
-
Low Smoke Emission: IEC 61034
Applications
This cable is engineered for safety-critical and interference-sensitive applications where a lighter, shielded cable is preferred. Typical uses include:
-
Essential telecommunication, alarm, instrumentation, and data systems on ships and offshore platforms (e.g., oil & gas).
-
Control circuits and communication networks in industries such as power plants, chemical processing, and mining, especially where flexibility and EMI protection are required.
