Product Overview
The CHEPJ85/NC is a premium Fire Resistant marine-grade communication cable, engineered for critical circuits where maintaining signal integrity during a fire is essential. It combines Mica/EPR insulation for fire survival with comprehensive Low Smoke Halogen Free (LSHF) safety features. The inclusion of a Copper Braid Armor provides effective EMI shielding, making it ideal for sensitive communication and control systems on ships, offshore platforms, and in high-risk industrial plants that require both fire resistance and interference protection.
Key Features & Benefits
-
Certified Fire Resistance: Meets IEC 60331 standards to ensure continued circuit operation during a fire emergency.
-
Enhanced Safety & Environmental Protection: Halogen-Free (IEC 60754) and Low Smoke (IEC 61034) properties minimize corrosive gases and toxic smoke, protecting personnel and equipment.
-
Dual Fire Performance: Combines Fire Resistant (IEC 60331) capability with additional Flame Retardant (IEC 60332-1 & -3-22) properties to prevent flame spread.
-
EMI Shielding & Flexible Armor: The Tinned Copper Wire Braid Armor offers excellent flexibility, good mechanical protection, and effective shielding against electromagnetic interference.
-
Robust Construction: Mica glass tape with EPR insulation ensures fire integrity, while double-layer Cross-linked Polyolefin (SHF2) sheathing provides superior environmental and chemical resistance.
Technical Specifications
-
Rated Voltage: 150/250V
-
Maximum Continuous Conductor Temperature: 90°C
-
Available Conductor Cross-Sections: 0.5 mm², 0.75 mm², 1.0 mm², 1.5 mm², 2.5 mm²
-
Core Configuration: Available from 1 to 37 pairs.
-
Outer Sheath Color: Standard Black (other colors typically available on request).

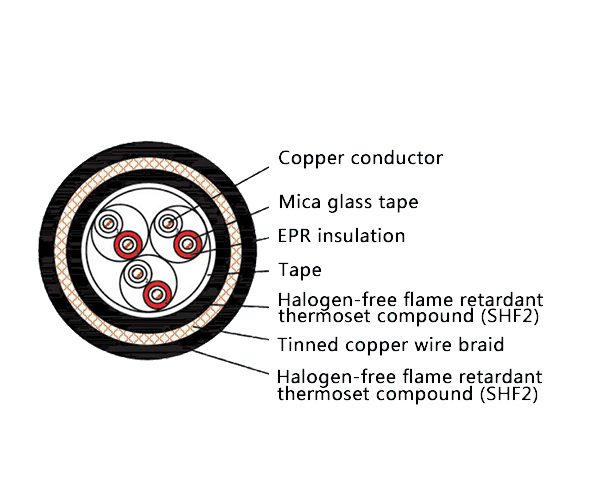

Construction Details
| Item | Code | Material / Description |
|---|---|---|
| Series Code | CH | Marine & Offshore Symmetrical Communication Cable |
| Conductor | / | Tinned / Plain Stranded, Annealed Copper Wire |
| Insulation | E | Mica Glass Tape + Ethylene Propylene Rubber (EPR) |
| Inner Sheath | PJ | Cross-linked Polyolefin (SHF2) |
| Armor | 8 | Tinned / Plain Copper Wire Braided |
| Outer Sheath | 5 | Cross-linked Polyolefin (SHF2) |
| Flammability | NC | Halogen Free Low Smoke Fire Resistant |
Standards & Compliance
This cable is manufactured in full compliance with the following international standards:
-
General Design: IEC 60092-350, IEC 60092-376
-
Conductor: IEC 60228
-
Insulation & Sheath: IEC 60092-360
-
Fire Resistant: IEC 60331
-
Flame Retardant: IEC 60332-1 (Single), IEC 60332-3-22 (Bunched)
-
Halogen Free: IEC 60754
-
Low Smoke Emission: IEC 61034
Applications
This cable is specifically designed for safety-critical and interference-sensitive applications, including:
-
Essential telecommunication, alarm systems, instrumentation, and computer networks on marine vessels and offshore oil & gas platforms.
-
Control and data systems in industries where fire integrity and signal clarity are crucial, such as power generation plants, chemical facilities, and mining operations.
